Technical Specifications
| Item | Specification |
|---|---|

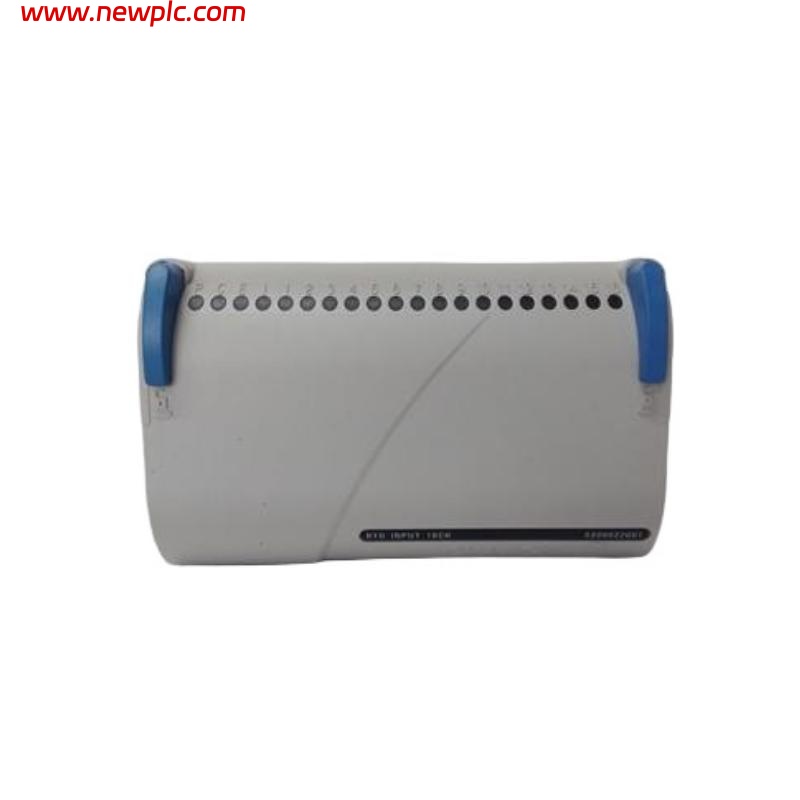

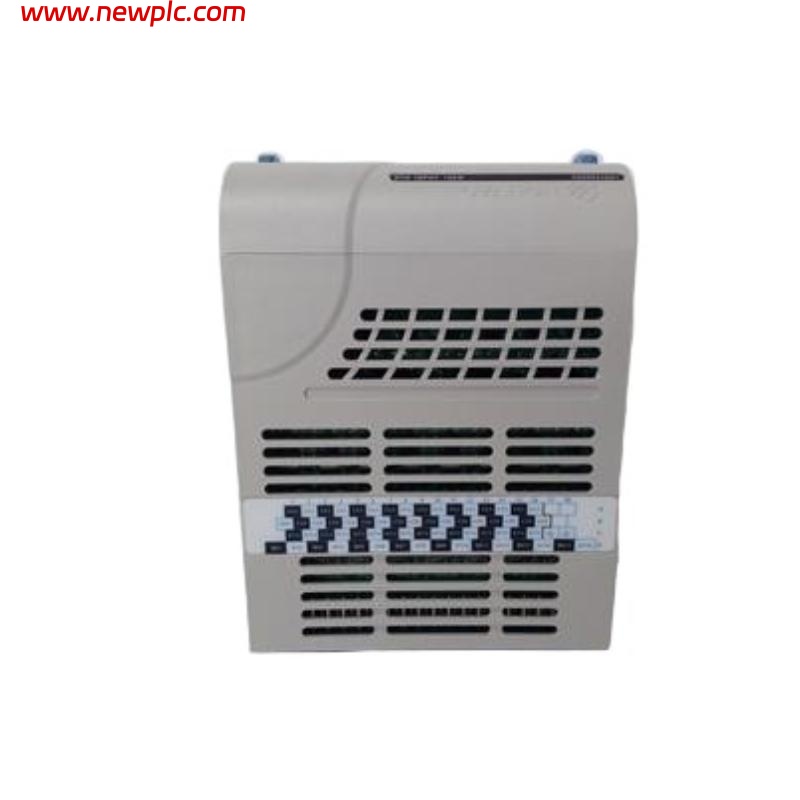

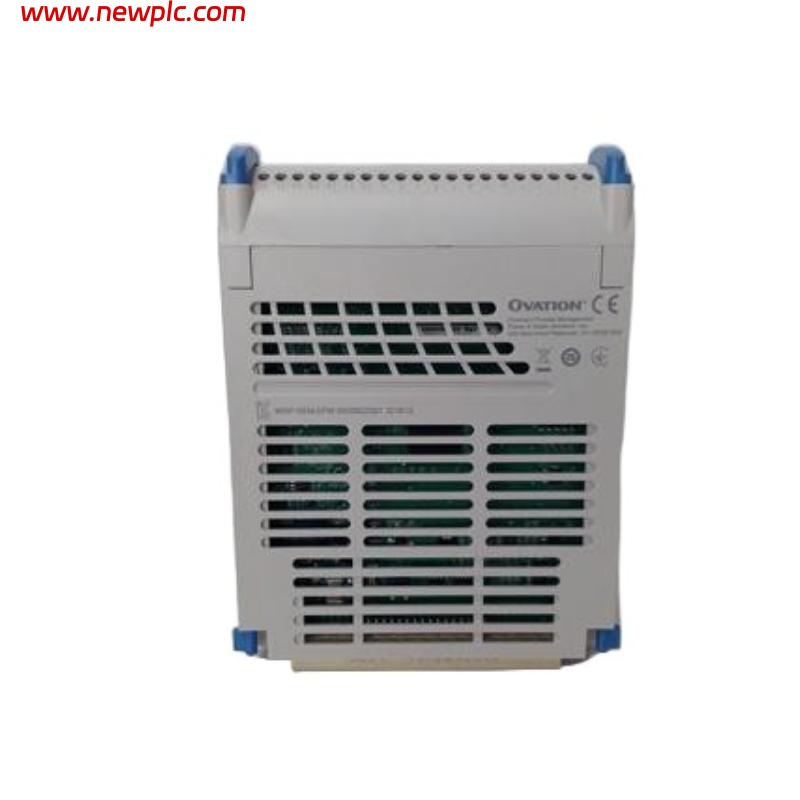

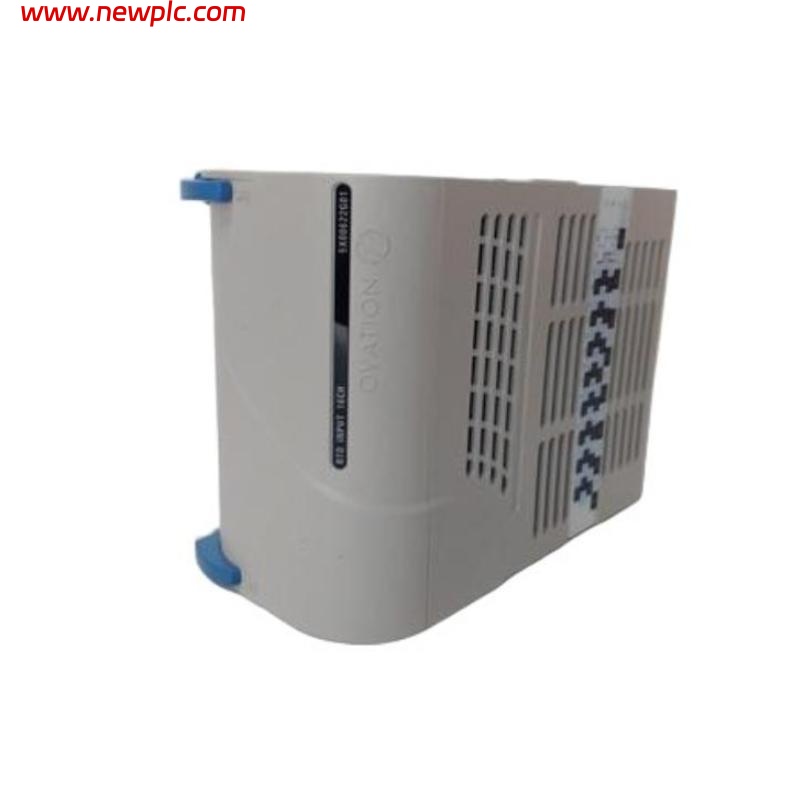

| Product Model | Ovation 5X00622G01 |
| Product Type | 16-Channel RTD Input Module |
| Function | Provides 16 RTD temperature input channels for industrial process monitoring |
| Input Channels | 16 channels |
| Input Type | PT100/RTD (configurable) |
| Measurement Range | –200°C to +850°C (depending on sensor type) |
| Resolution | 16-bit |
| Accuracy | ±0.1°C (typical) |
| Isolation | Input channels isolated from logic board for noise immunity |
| Power Supply | +24 VDC |
| Power Consumption | Up to 6 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | Up to 95% non-condensing |
| Dimensions | 260 × 45 × 185 mm |
| Weight | 1.4 kg |
FAQ
FAQ
Q1: What is the main purpose of the Ovation 5X00622G01?
A1: It acquires temperature signals from industrial processes, converting RTD sensor inputs into digital signals for control systems.
Q2: How many input channels does it have?
A2: Provides 16 independent RTD input channels.
Q3: What type of sensors are supported?
A3: Supports PT100 and other standard RTD sensors.
Q4: Does the module provide channel isolation?
A4: Yes, input channels are isolated from the logic board to enhance noise immunity.
Q5: What is the power supply requirement?
A5: It operates on +24 VDC system power.
Q6: What is the temperature measurement range?
A6: –200°C to +850°C, depending on the sensor type.
Q7: What are the dimensions and weight of the module?
A7: Dimensions are 260 × 45 × 185 mm, and weight is 1.4 kg.
Q8: In what systems is the module typically used?
A8: Commonly used in power plants, industrial control systems, and temperature monitoring applications.
