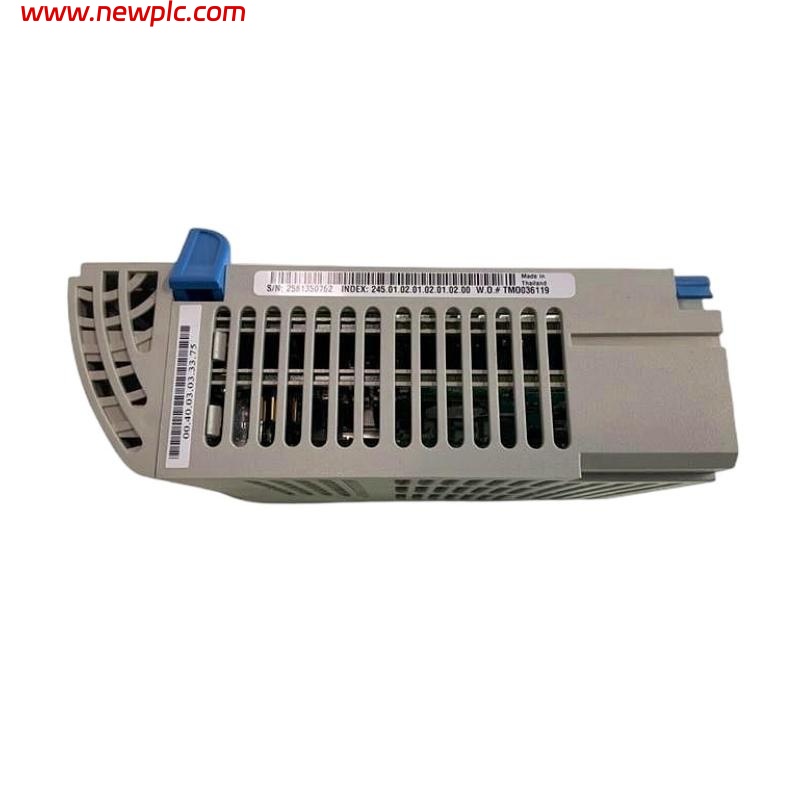

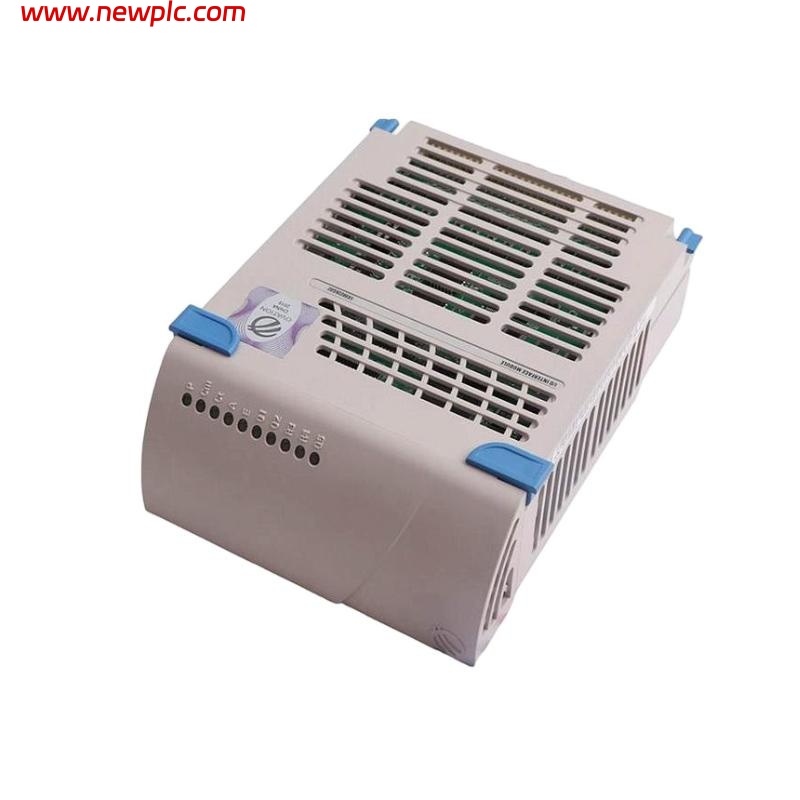

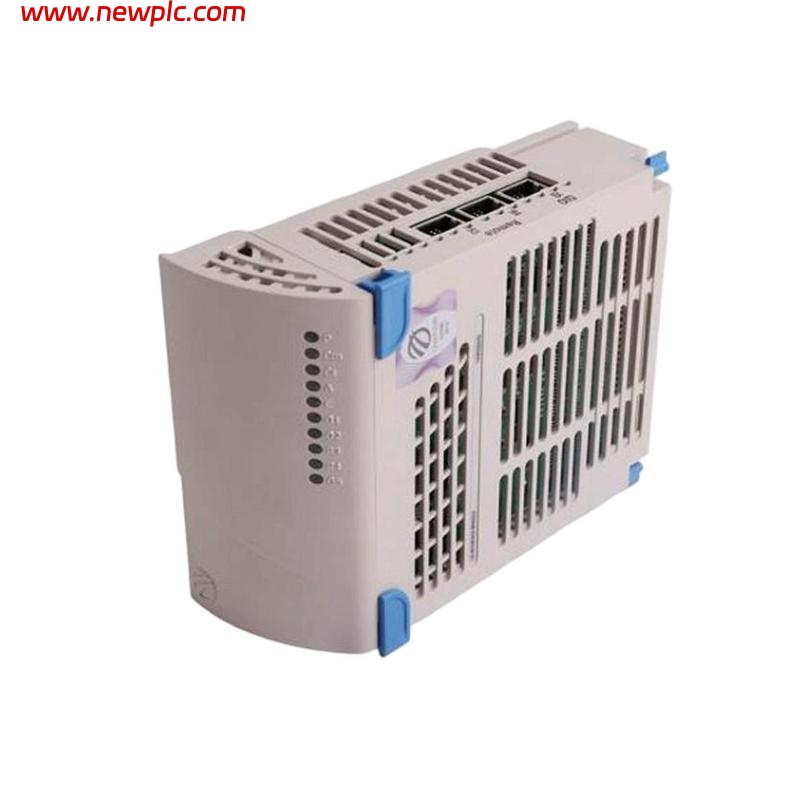

Ovation 5X00717G01 Analog Input Module

FAQ

Q1: What is the primary function of the Ovation 5X00717G01 Analog Input Module?
A1: It collects analog signals such as temperature, pressure, flow, or level from field devices to provide precise data input for process control.

Q2: What types of input signals are supported?
A2: Supports voltage signals (0–10 VDC) and current signals (4–20 mA), configurable per system requirements.

Q3: Does the module provide isolation for input channels?
A3: Yes, each channel is optically isolated from the system to prevent interference.

Q4: What is the resolution of the module?
A4: It offers 16-bit high-precision analog-to-digital conversion for accurate measurement.

Q5: What are the power requirements and consumption?
A5: Operates at 24 VDC with a typical power consumption of approximately 5 W.

Q6: What should be noted during installation?
A6: Disconnect system power before installation, ensure proper insertion into the Ovation rack slot, and avoid humid, high-temperature, or static-prone environments.

Q7: What are the dimensions and weight of the module?
A7: The module measures 120 x 60 x 170 mm and weighs approximately 0.75 kg.

Q8: In which applications is this module typically used?
A8: Commonly used in power generation, chemical, water treatment, and automation systems for accurate process signal acquisition.
