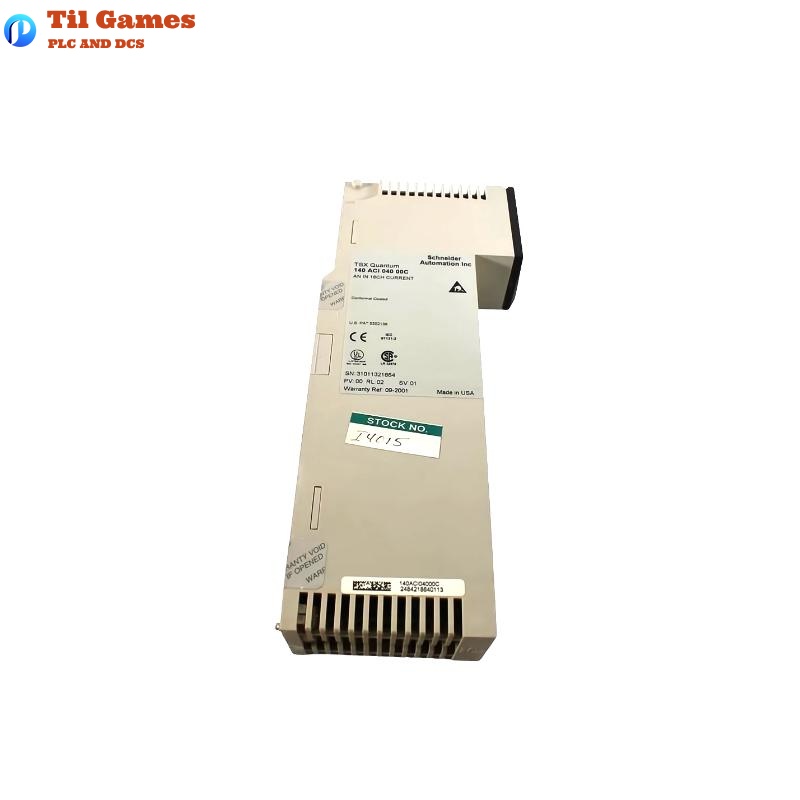

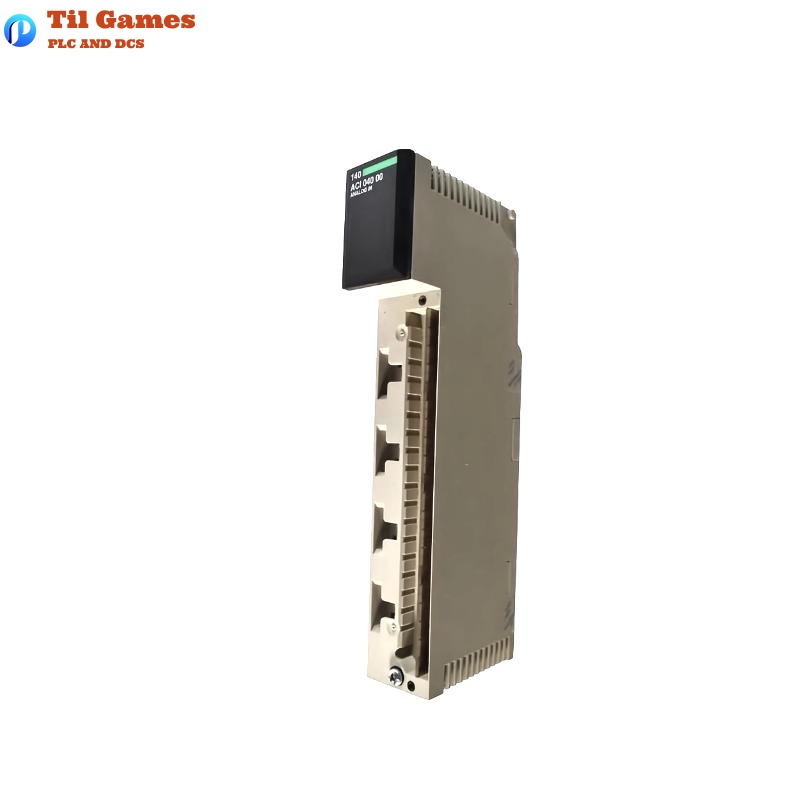

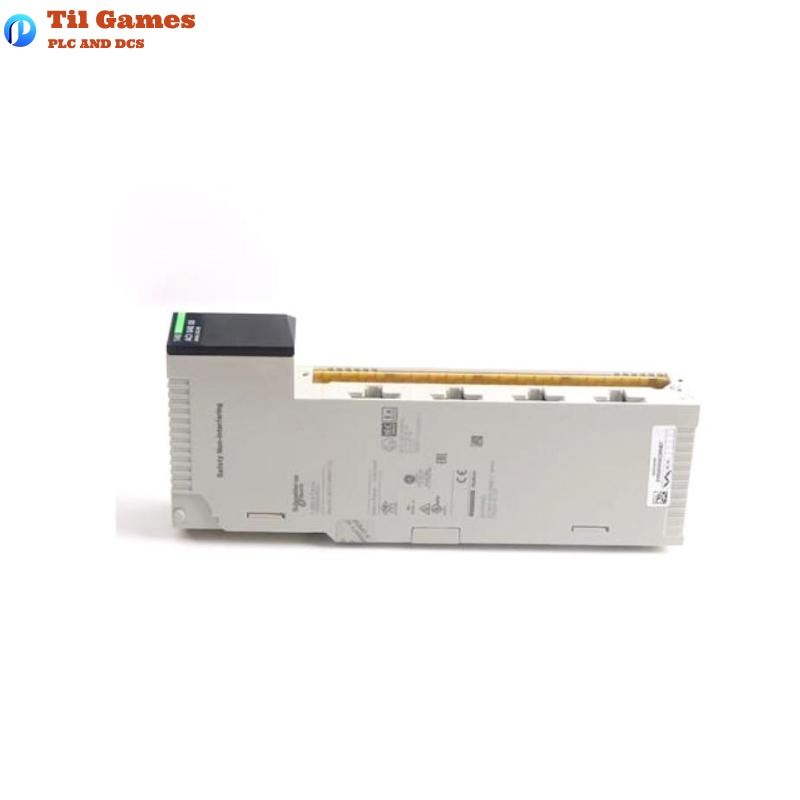

Technical Specifications
| Parameter | Description |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Analog input module |
| Module Format | Standard |
| Number of Analog Inputs | 16 |
| Input Type | Differential |
| Type of Filter | Single pole low pass – 3 dB at 34 Hz ±25% |
| Addressing Requirement | 17 input words |
| Analog Input Resolution | 0…16000 counts (4…20 mA) 0…20000 counts (0…20 mA) 0…25000 counts (0…25 mA) 0…4095 counts (4…20 mA) |
| Absolute Maximum Input | 30 mA |
| Input Impedance | 250 Ohm |
| Absolute Accuracy Error | ±0.125 % of full scale |
| Linearity Error | ±12 µA max (4…20 mA) ±6 µA max (0…20 mA) ±6 µA max (0…25 mA) |
| Temperature Drift | ±0.0025 % of full scale/°C Max: ±0.0050 % of full scale/°C |
| Common Mode Rejection | > -90 dB @ 60 Hz |
| Isolation (Channel to Bus) | 1780 V AC for 60 seconds |
| Update Time | 15 ms (2-wire/4-wire) |
| Fault Detection | Broken wire detection (4…20 mA) |
| Local Signalling | 1 green LED (bus communication) 1 red LED (external fault) 16 green LEDs (channel active) 16 red LEDs (channel fault) |
| Bus Current Requirement | 360 mA |
| Power Dissipation | 5 W |
| Protective Treatment | Conformal coating Humiseal 1A33 |
| Standards | UL 508, CSA C22.2 No 142 |
| Product Certifications | FM Class 1 Division 2, cUL |
| Electrostatic Discharge | 4 kV contact, 8 kV air (IEC 801-2) |
| Electromagnetic Field | 10 V/m, 80–1000 MHz (IEC 801-3) |
| Operating Temperature | 32 to 140 °F (0 to 60 °C) |
| Storage Temperature | -40 to 185 °F (-40 to 85 °C) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 16404.2 ft (5000 m) |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What input ranges are supported by the 140ACI04000C module?
A1: It supports 0–20 mA, 4–20 mA, and 0–25 mA current input ranges.
Q2: What is the input type of this module?
A2: The module uses differential input type for improved noise immunity.
Q3: Does the module support broken wire detection?
A3: Yes, broken wire detection is supported in the 4–20 mA range.
Q4: Are there individual status indicators for each channel?
A4: Yes, 16 green LEDs indicate active channels, and 16 red LEDs indicate channel faults.
Q5: How accurate is the module under varying temperatures?
A5: Temperature drift is ±0.0025% of full scale per °C, with a maximum of ±0.0050%.
Q6: What is the isolation between channels and bus?
A6: 1780 V AC for 60 seconds between channels and bus.
Q7: What type of filtering is used in the module?
A7: It uses a single pole low-pass filter with a -3 dB point at 34 Hz ±25%.
Q8: What certifications does the module have?
A8: The module is certified by UL, CSA, FM Class 1 Division 2, and cUL.
