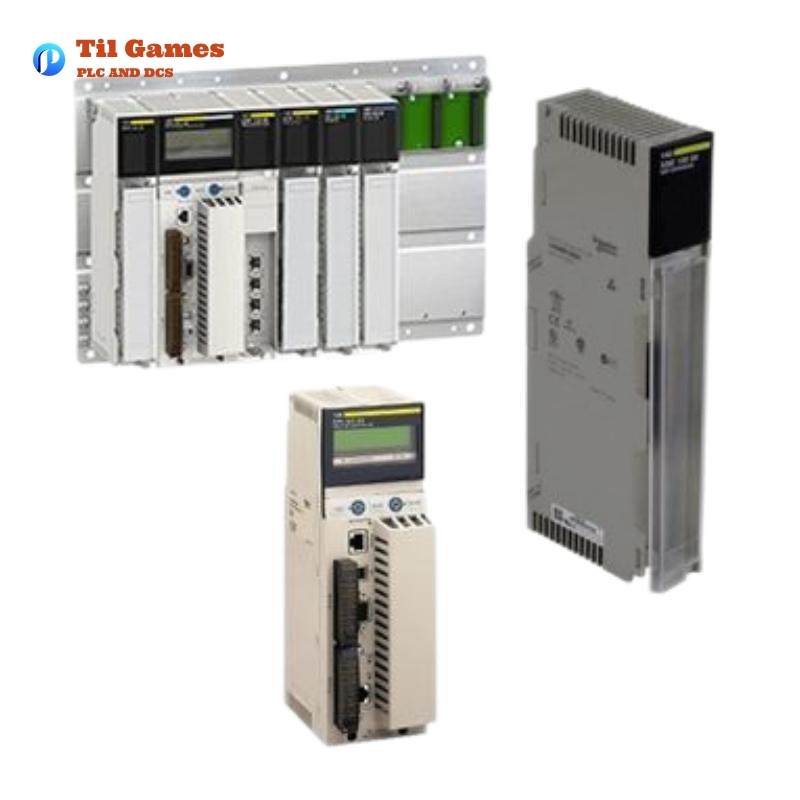

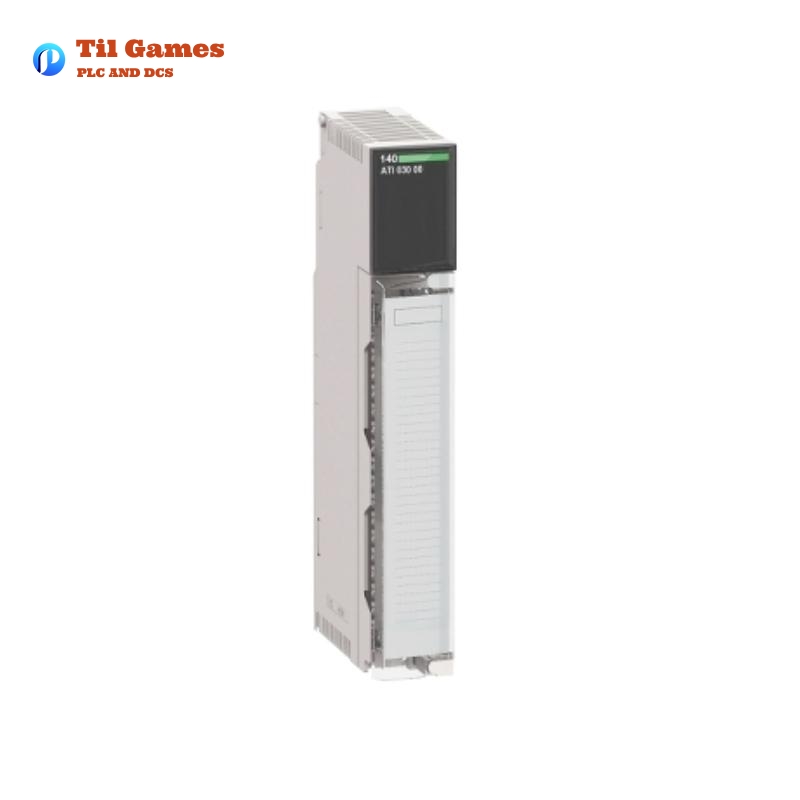

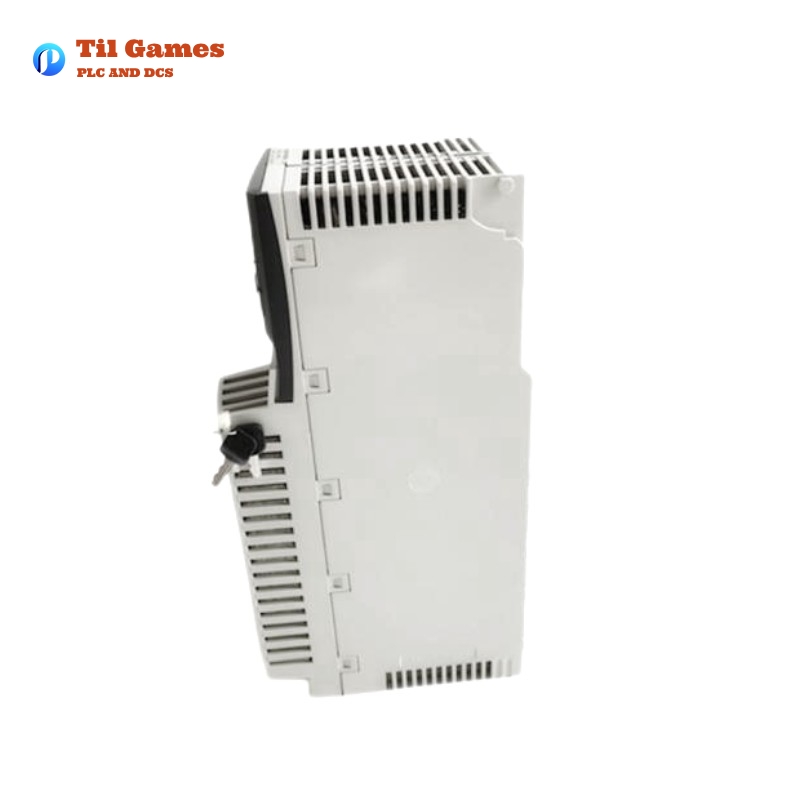

Schneider 140ATI03000 Analog Input Module

FAQ for Schneider 140ATI03000 Analog Input Module:

Q1: What is the temperature range supported by the 140ATI03000 module?
A1: The module supports a temperature range from -270°C to 1665°C, depending on the thermocouple type used.

Q2: What types of thermocouples are supported by the 140ATI03000?
A2: The module supports thermocouple types J, E, K, T, R, and S.

Q3: What is the resolution of the analog input channels?
A3: The module offers a 16-bit resolution for each input channel.

Q4: How does the 140ATI03000 handle cold junction compensation?
A4: The module features internal cold junction compensation, which operates within a temperature range of 32…140°F (0…60°C).

Q5: What is the accuracy of the module?
A5: The absolute accuracy is +/- 2°C, with an additional 0.1% of the reading for thermocouple types E, J, K, and T, and +/- 4°C for thermocouple types R and S.

Q6: Can the 140ATI03000 module detect faults?
A6: Yes, the module has fault detection capabilities, including broken wire detection and channel fault indicators.

Q7: What is the operating temperature range for the 140ATI03000 module?
A7: The operating temperature range is 32…140°F (0…60°C).

Q8: What is the isolation voltage between the channels and the bus?
A8: The isolation voltage is 1780 V AC for 60 seconds and 2500 V DC for 60 seconds.

Q9: Is the 140ATI03000 module CE certified?
A9: Yes, the module is CE certified, as well as cUL and FM Class 1 Division 2 certified.

Q10: What is the power dissipation of the module?
A10: The power dissipation is 1.5 W.
