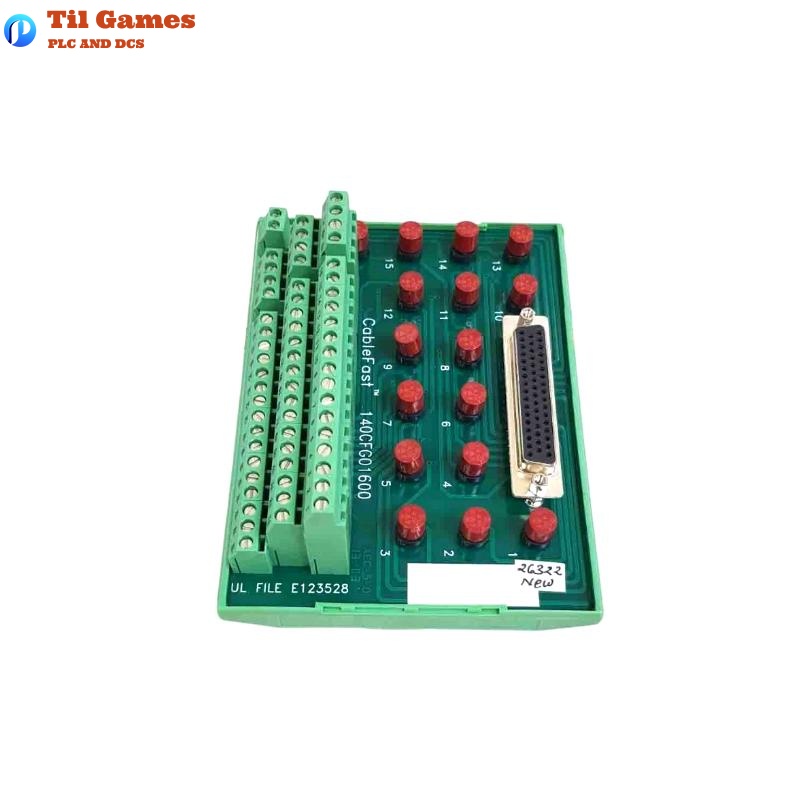

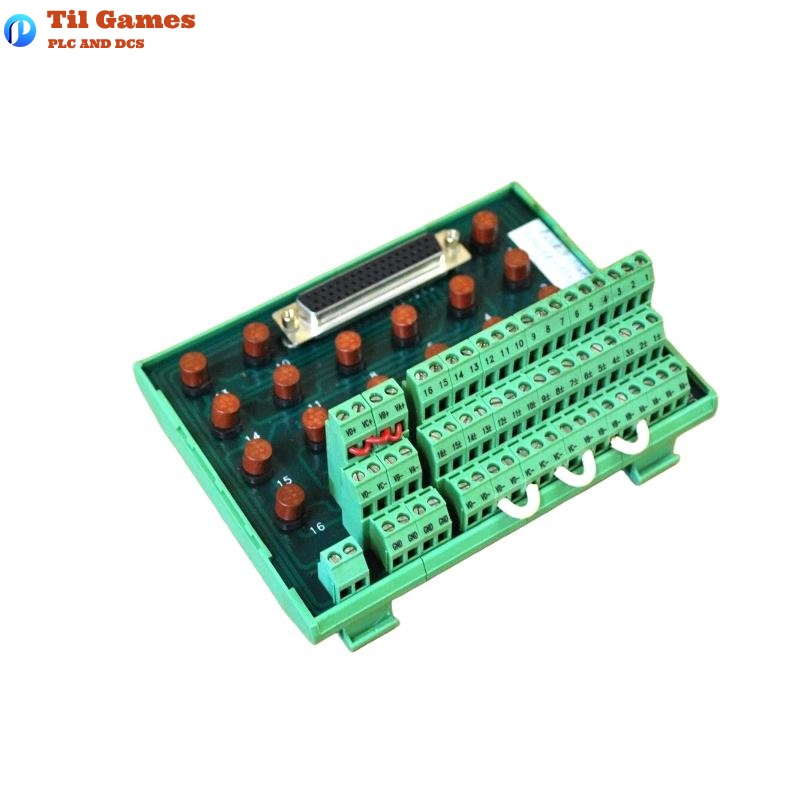

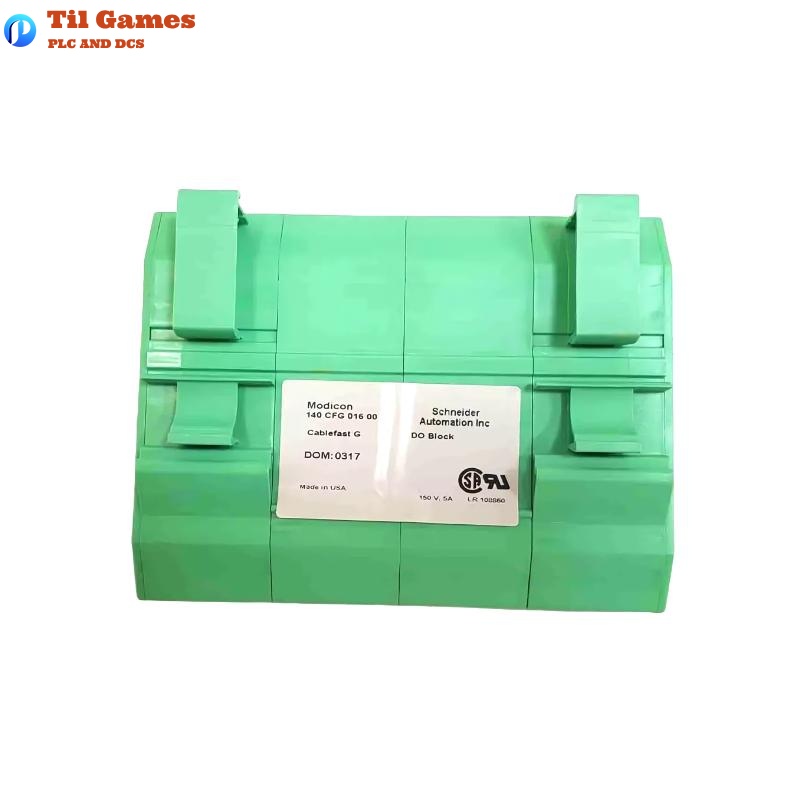

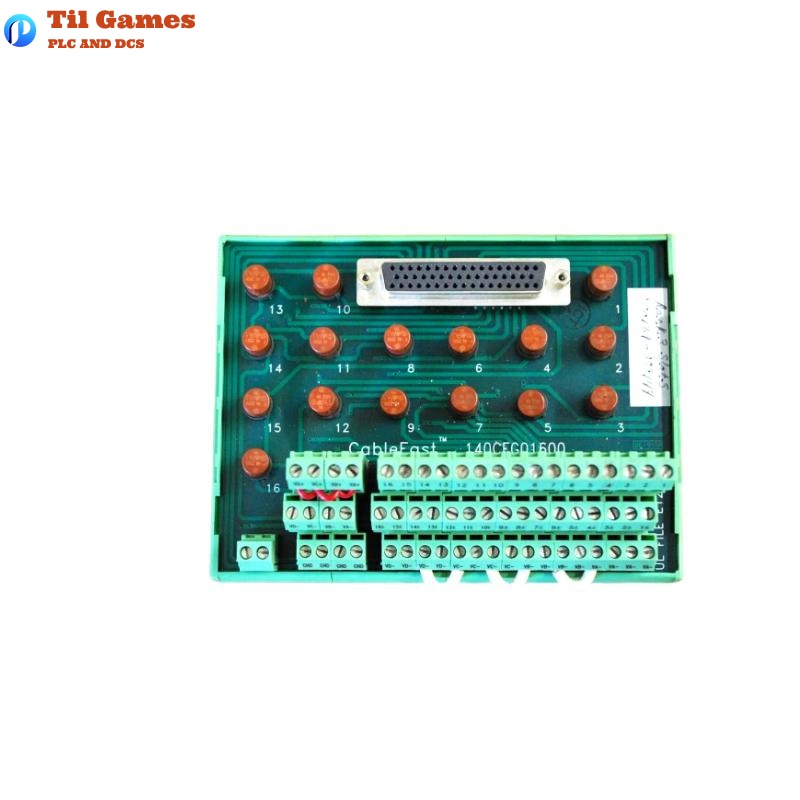

Schneider 140CFG01600 Digital Output Block, Fuseperpt

FAQ

Q1: How many output points can this module support simultaneously?
A1: It supports up to 16 output points, each protected by an individual 4A fuse.

Q2: Is the 140CFG01600 module DIN rail mountable?
A2: Yes, it is designed for standard DIN rail mounting for easy cabinet integration.

Q3: What type of connectors are supported?
A3: It supports one female SUB-D 50 connector and captive screw terminal blocks.

Q4: Are the fuses included with the module?
A4: No, users must install the appropriate fuse per channel based on current requirements.

Q5: Is this module compatible with all Quantum output modules?
A5: It is compatible with various Quantum modules such as 140DAO84010, 140DAO84220, etc., per the compatibility list.

Q6: Does installation require any special tools?
A6: No special tools are needed; standard tools are sufficient for DIN rail installation.

Q7: What is the rated current for each output point?
A7: Each output point is rated at 4A and protected by a replaceable fuse.

Q8: What are the dimensions and weight of the product?
A8: The module measures 115 x 180 x 270 mm and weighs 0.34 kg.
