Technical Specifications
| Parameter | Specification |
|---|---|

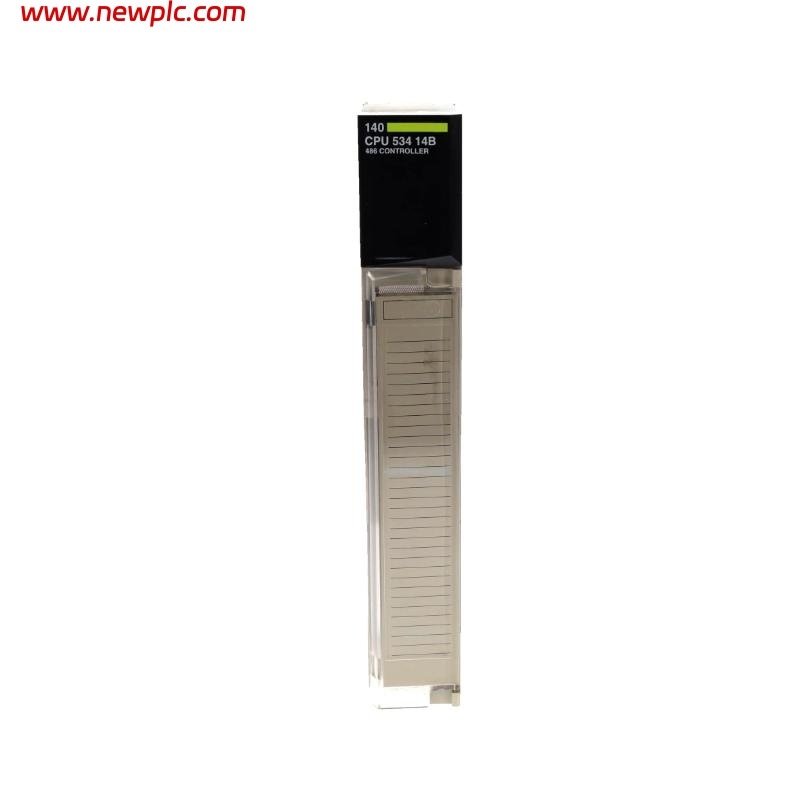

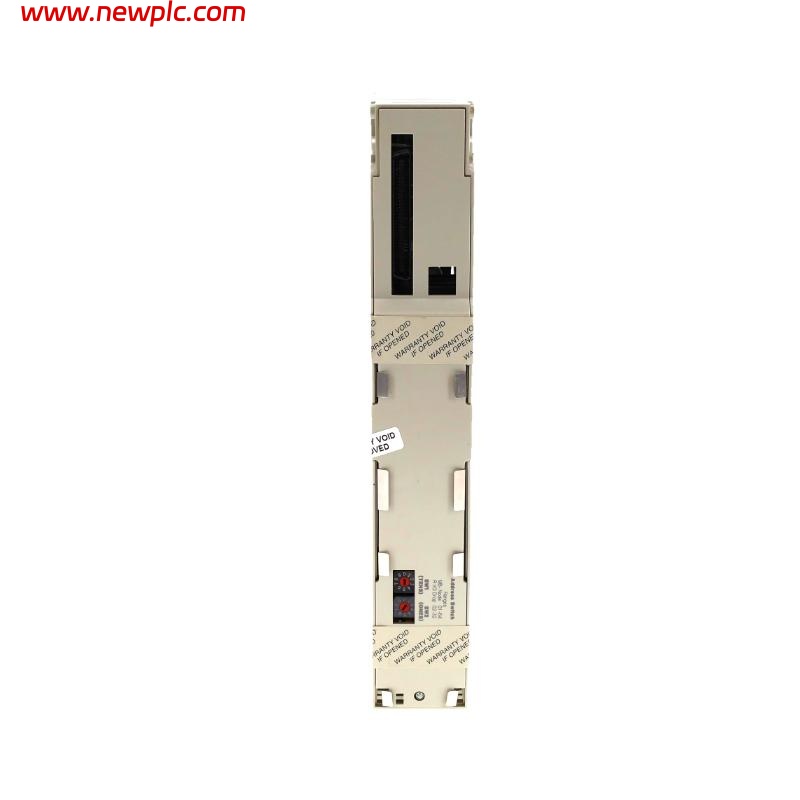

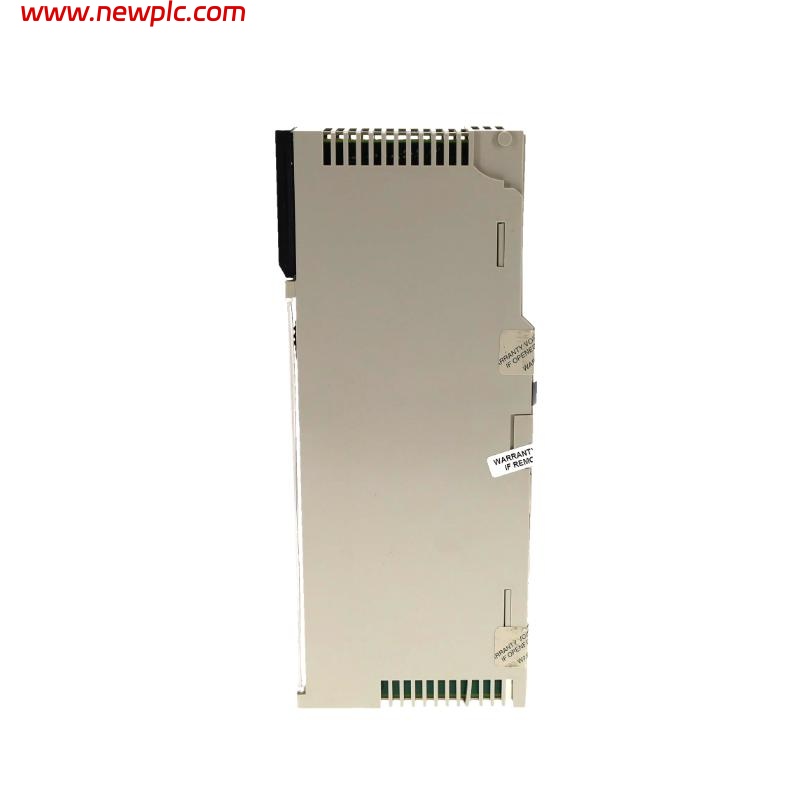

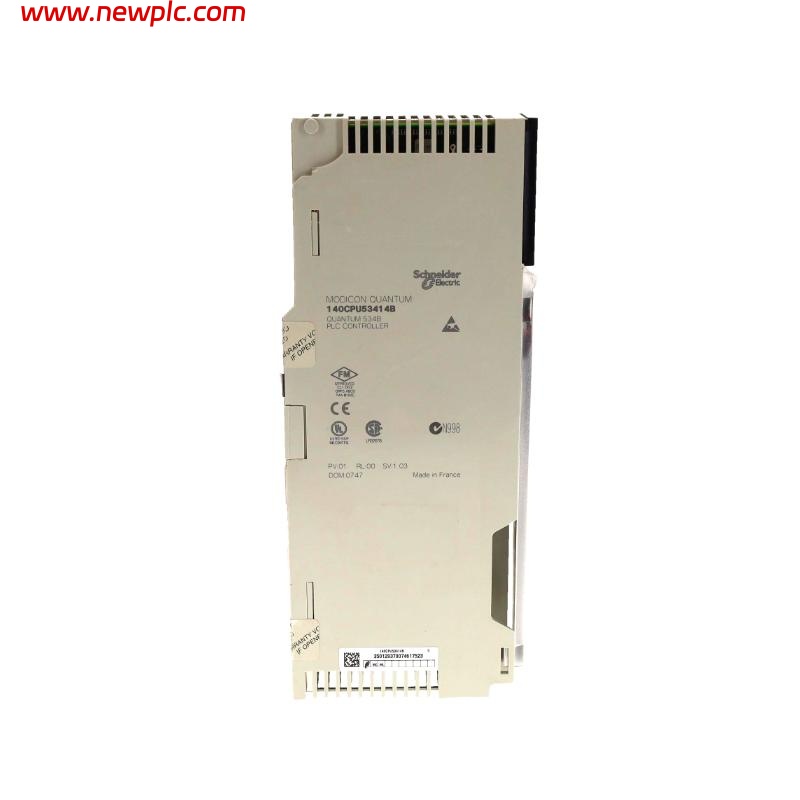

| Model | Schneider 140CPU53414BC |
| Product Type | CPU Controller with Mathematical Coprocessor |
| Brand | Schneider Electric |
| Processor Type | Motorola MC68040 with Floating-Point Coprocessor |
| CPU Speed | 25 MHz |
| Memory Capacity | 1 MB RAM, 4 MB Flash |
| Coprocessor Function | Advanced floating-point and high-speed mathematical operations |
| Programming Languages Supported | Ladder Diagram, Structured Text, Function Block, Instruction List |
| Battery Backup | Yes, lithium battery |
| Communication Ports | 1 Modbus Plus, 1 Ethernet, 1 RS-232/RS-485 |
| Supported Networks | Modbus TCP/IP, Modbus Plus, Ethernet TCP/IP |
| I/O Capacity | Up to 2048 discrete and 1024 analog I/O points |
| System Bus | Quantum backplane bus |
| Scan Time | 1.1 ms per K instruction typical |
| Diagnostics | Built-in self-diagnostics and system fault detection |
| Power Supply Voltage | 5 V DC from backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Vibration Resistance | 5 to 150 Hz, 3.5 mm amplitude |
| Shock Resistance | 30 g for 11 ms |
| Mounting Type | Rack-mounted |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.85 kg |
FAQ
FAQ
Q1: What distinguishes the 140CPU53414BC from other Quantum CPUs?
A1: The 140CPU53414BC includes an integrated mathematical coprocessor that enhances computational performance, particularly for complex floating-point and high-speed arithmetic operations required in process control and advanced automation.
Q2: What programming software is compatible with this CPU module?
A2: It is fully compatible with Schneider’s Unity Pro (EcoStruxure Control Expert) software, supporting all IEC 61131-3 standard programming languages for flexible application development.
Q3: How does the mathematical coprocessor improve performance?
A3: The coprocessor handles floating-point calculations independently from the main CPU, significantly reducing cycle time and improving response in systems that require precise data processing.
Q4: What communication options are available on this module?
A4: The CPU provides multiple communication interfaces, including Modbus Plus, Ethernet TCP/IP, and serial RS-232/RS-485, ensuring seamless connectivity within industrial automation networks.
Q5: Is the 140CPU53414BC suitable for large-scale control systems?
A5: Yes, it supports extensive I/O configurations, managing up to 2048 discrete and 1024 analog points, making it ideal for large and complex process applications.
Q6: How does the controller maintain operational reliability?
A6: The module incorporates self-diagnostic capabilities, fault detection, and battery-backed memory to safeguard data and ensure continuous operation even under challenging conditions.
Q7: What are the environmental requirements for optimal operation?
A7: The unit operates reliably between 0°C and 60°C and within a humidity range of 5%–95% non-condensing, suitable for most industrial environments.
Q8: How is the module integrated into a Quantum automation system?
A8: It installs directly into the Quantum backplane rack and interfaces seamlessly with I/O modules, power supplies, and communication devices, forming the core of the control architecture.
