Technical Specifications
| Parameter | Specification |
|---|---|

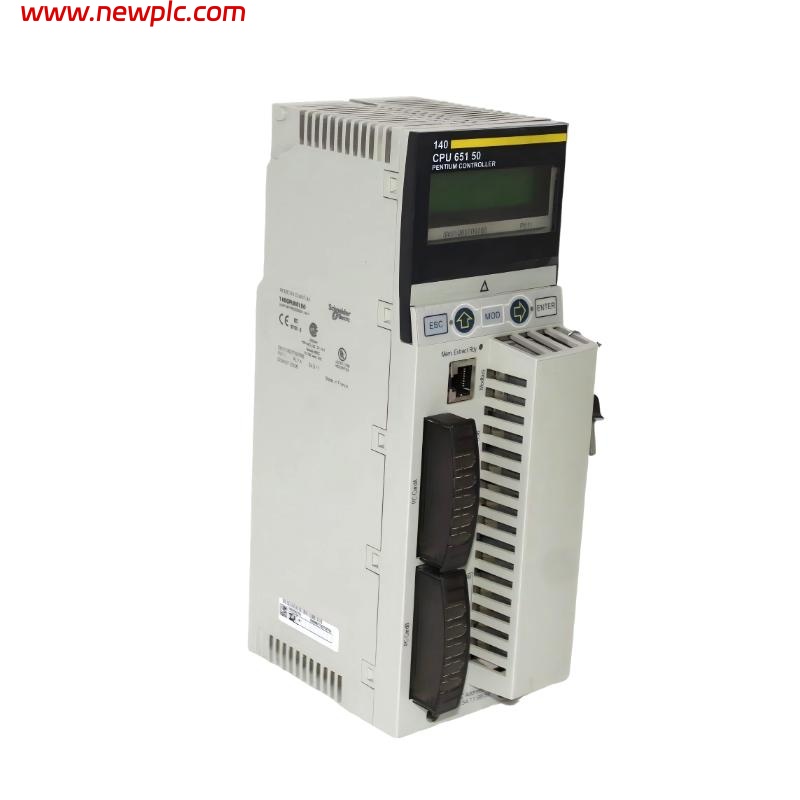

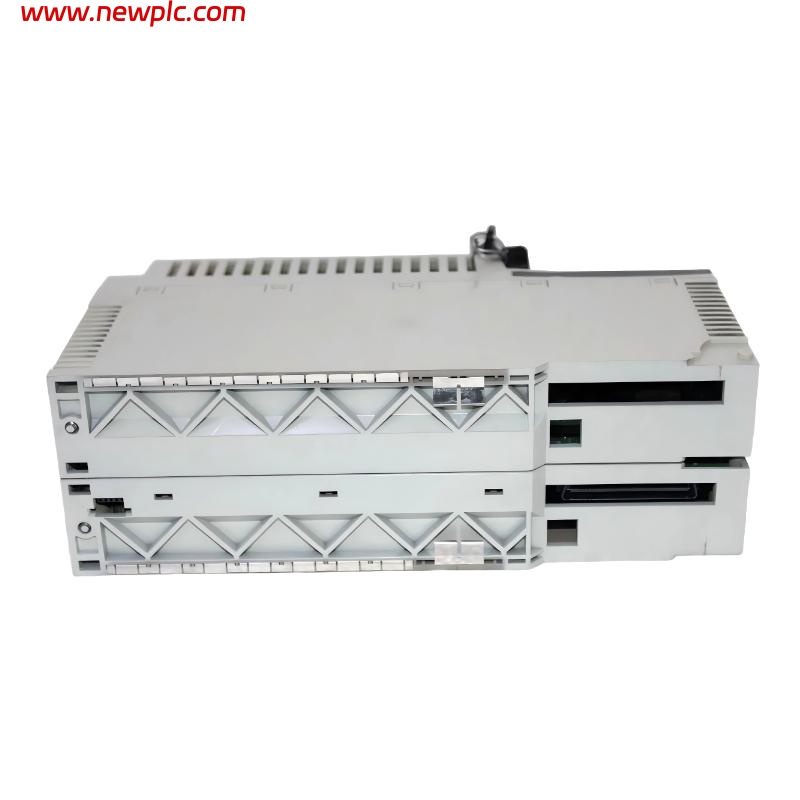

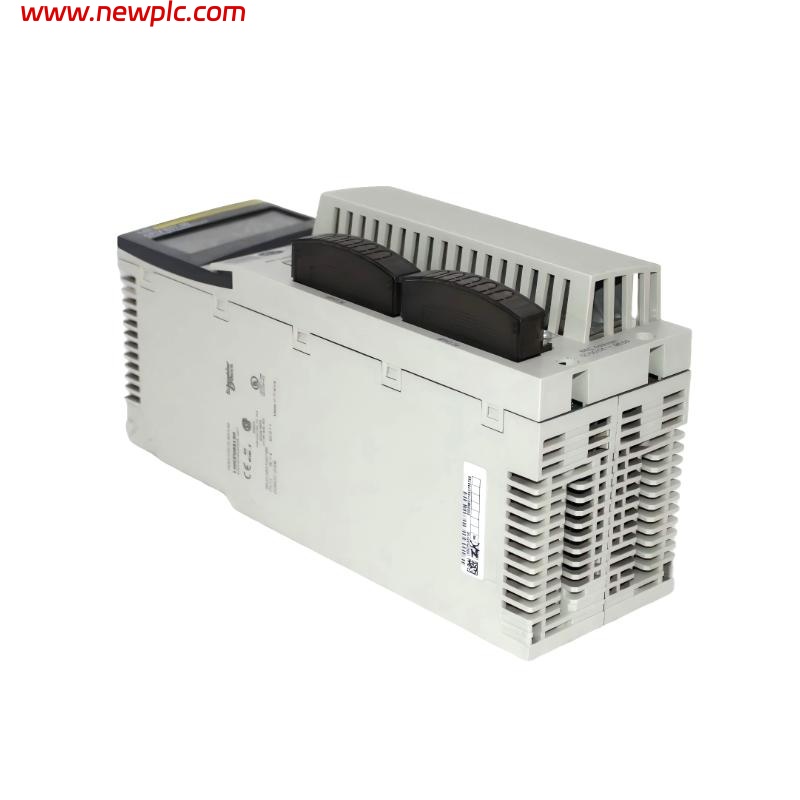

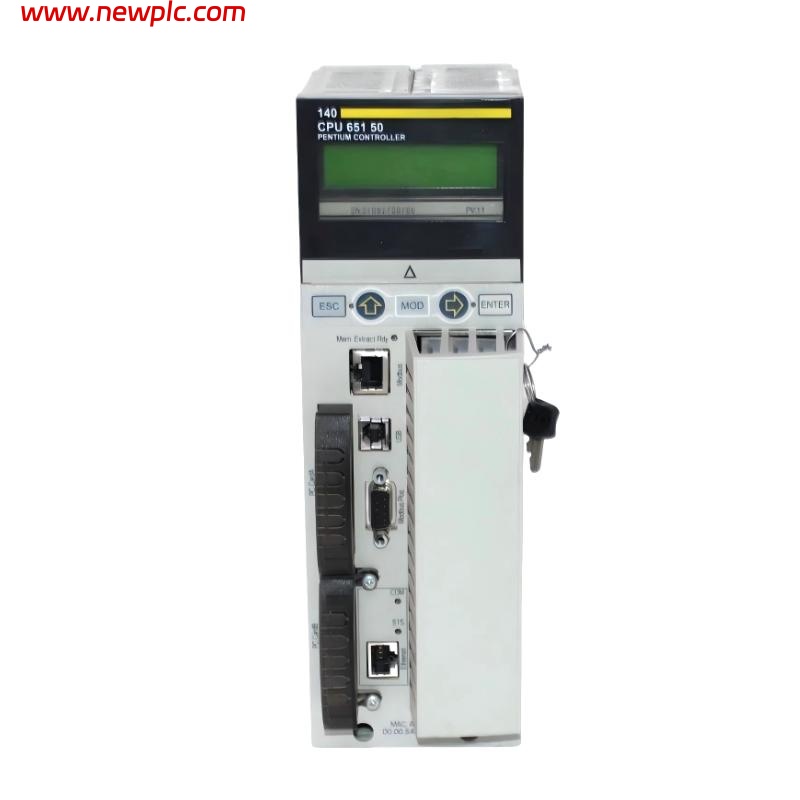

| Model | Schneider 140CPU65150C |
| Product Type | Unity Processor |
| Brand | Schneider Electric |
| Processor Type | High-performance CPU |
| CPU Clock Speed | 32-bit, 50 MHz |
| User Memory | 2 MB RAM, 8 MB Flash |
| Programming Languages Supported | Ladder Logic, Structured Text, Function Block, Instruction List |
| Communication Ports | Modbus, Modbus TCP/IP, Ethernet, CAN, RS-232/RS-485 |
| Supported Networks | Modbus, Modbus TCP/IP, Ethernet, CAN |
| I/O Capacity | Up to 4096 discrete and 2048 analog I/O points |
| System Bus | Unity backplane bus |
| Typical Scan Time | 0.9 ms per K instruction |
| Internal Clock Accuracy | ±1 second per day |
| Diagnostic Features | Built-in self-tests, error detection, and fault diagnostics |
| Power Supply Voltage | 24 V DC via backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Vibration Resistance | 5–150 Hz, 3.5 mm amplitude |
| Shock Resistance | 30 g for 11 ms |
| Mounting Type | Rack-mounted |
| Shipping Size | 110 x 185 x 325 mm |
| Shipping Weight | 1.434 kg |
FAQ
FAQ
Q1: What type of processor does the 140CPU65150C Unity Processor use?
A1: It uses a high-performance 32-bit CPU operating at 50 MHz, optimized for large-scale industrial control tasks.
Q2: Which programming languages are compatible with this CPU module?
A2: The CPU supports IEC 61131-3 programming languages including Ladder Logic, Structured Text, Function Block, and Instruction List.
Q3: What communication interfaces are provided?
A3: The module provides Modbus, Modbus TCP/IP, Ethernet, CAN, and RS-232/RS-485 interfaces for flexible network connectivity.
Q4: Can the module handle complex I/O requirements?
A4: Yes, it supports up to 4096 discrete and 2048 analog I/O points, suitable for demanding industrial automation systems.
Q5: Does the CPU module include diagnostics?
A5: Yes, it features built-in self-tests, error detection, and fault diagnostics to ensure reliable operation.
Q6: How does the processor retain memory during power interruptions?
A6: Memory retention is supported through internal mechanisms, ensuring program and configuration data are preserved.
Q7: What network protocols are supported for integration?
A7: The CPU supports Modbus, Modbus TCP/IP, Ethernet, and CAN protocols for seamless integration into control networks.
Q8: What environmental conditions is the CPU rated for?
A8: It operates safely in temperatures from 0°C to 60°C, with 5%–95% non-condensing humidity, making it suitable for industrial environments.
