Technical Specifications
| Parameter | Specification |
|---|---|

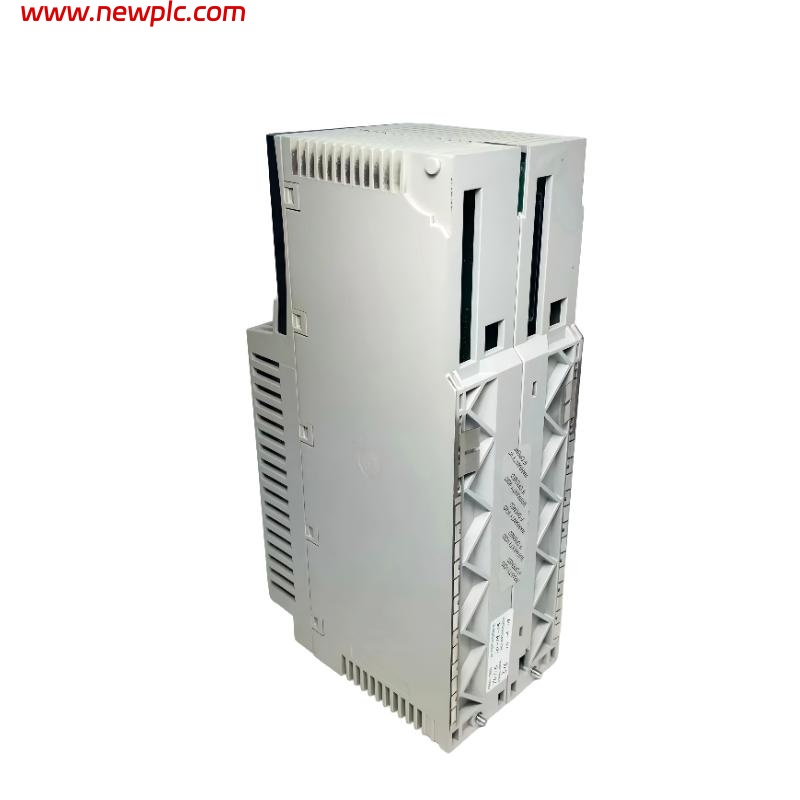

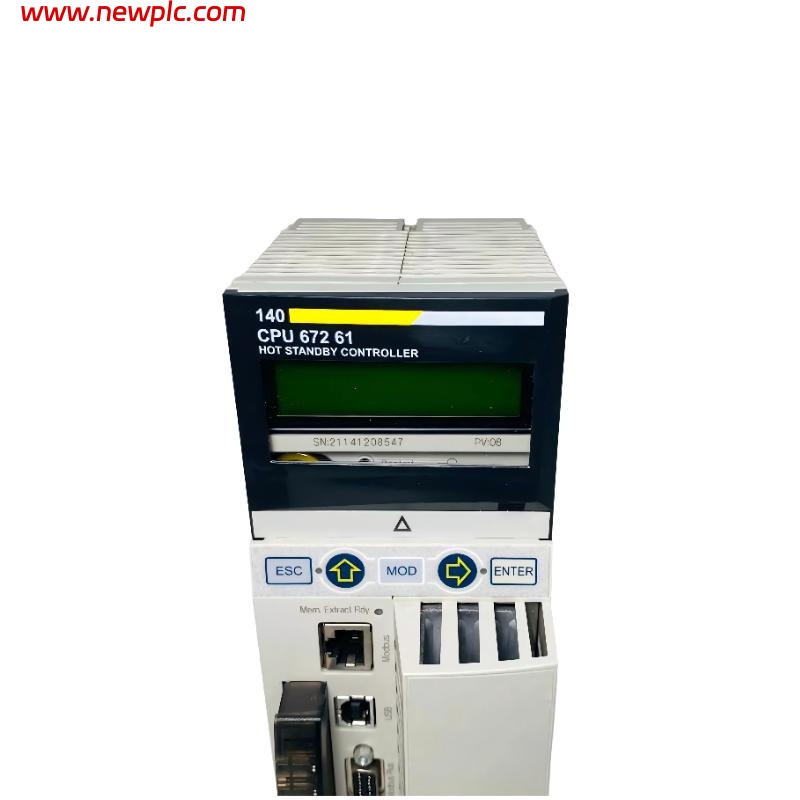

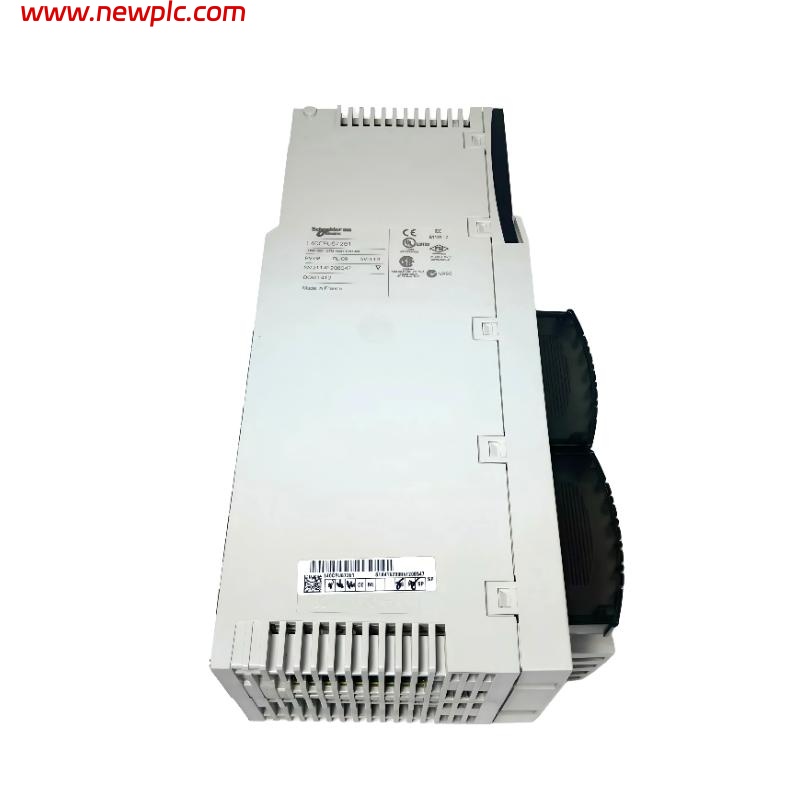

| Model | Schneider 140CPU67261C |
| Product Type | Unity Hot Standby Processor |
| Brand | Schneider Electric |
| Processor Type | Redundant safety-rated CPU |
| CPU Clock Speed | 32-bit, 60 MHz |
| User Memory | 4 MB RAM, 16 MB Flash |
| Programming Languages Supported | Ladder Logic, Structured Text, Function Block, Instruction List |
| Safety Standards | SIL 3, IEC 61508, ISO 13849-1 |
| Communication Ports | Modbus, Modbus TCP/IP, Ethernet, CAN, RS-232/RS-485 |
| Supported Networks | Modbus, Modbus TCP/IP, Ethernet, CAN |
| I/O Capacity | Up to 4096 discrete and 2048 analog I/O points |
| System Bus | Unity backplane bus |
| Typical Scan Time | 1 ms per K instruction |
| Internal Clock Accuracy | ±1 second per day |
| Diagnostic Features | Built-in self-tests, safety diagnostics, fault reporting |
| Redundancy | Hot standby redundant configuration |
| Power Supply Voltage | 24 V DC via backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Vibration Resistance | 5–150 Hz, 3.5 mm amplitude |
| Shock Resistance | 30 g for 11 ms |
| Mounting Type | Rack-mounted |
| Package Dimensions | 110 x 185 x 325 mm |
| Package Weight | 1.472 kg |
FAQ
FAQ
Q1: What is the main function of the 140CPU67261C?
A1: This processor provides hot standby redundancy, ensuring continuous operation and high availability in safety-critical control systems.
Q2: Which safety standards does this processor comply with?
A2: It meets SIL 3, IEC 61508, and ISO 13849-1 standards, suitable for high-risk industrial applications requiring redundancy.
Q3: How does the hot standby feature work?
A3: The primary processor runs actively while the secondary processor remains in standby mode, ready to take over immediately in case of failure.
Q4: What programming languages are supported?
A4: It supports Ladder Logic, Structured Text, Function Block, and Instruction List according to IEC 61131-3 standards.
Q5: What diagnostic features are included?
A5: The processor includes self-tests, safety diagnostics, fault detection, and reporting to ensure reliable operation and quick fault identification.
Q6: Which communication protocols are available for integration?
A6: It supports Modbus, Modbus TCP/IP, Ethernet, CAN, and RS-232/RS-485 for flexible network connectivity.
Q7: What is the maximum I/O capacity of this processor?
A7: It supports up to 4096 discrete and 2048 analog I/O points, allowing for large and complex control systems.
Q8: What environmental conditions can the processor handle?
A8: The processor operates in temperatures from 0°C to 60°C and humidity from 5% to 95% non-condensing, suitable for standard industrial environments.
