Technical Specifications
| Parameter | Specification |
|---|---|

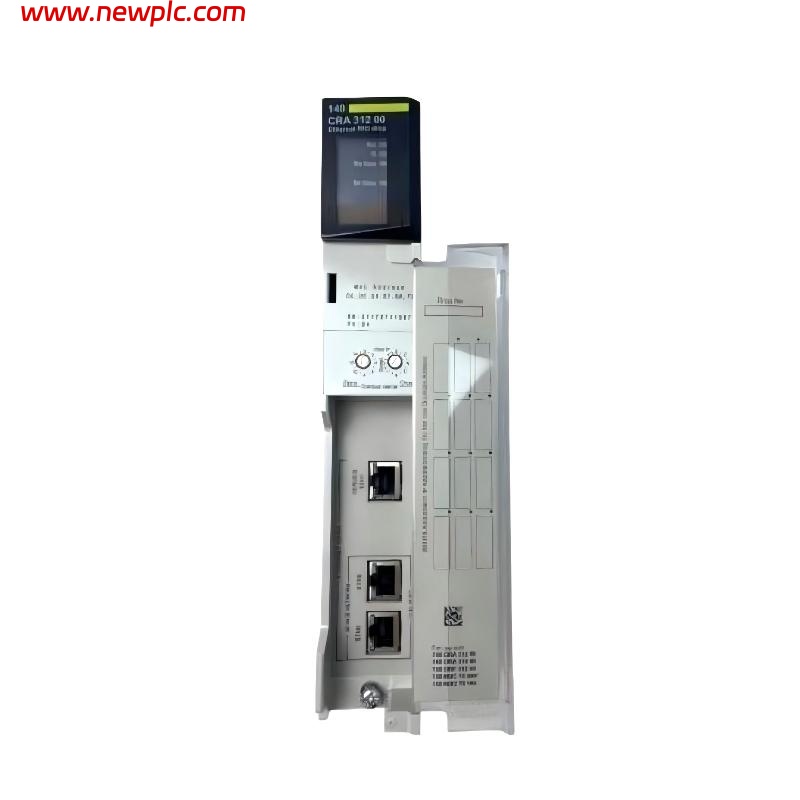

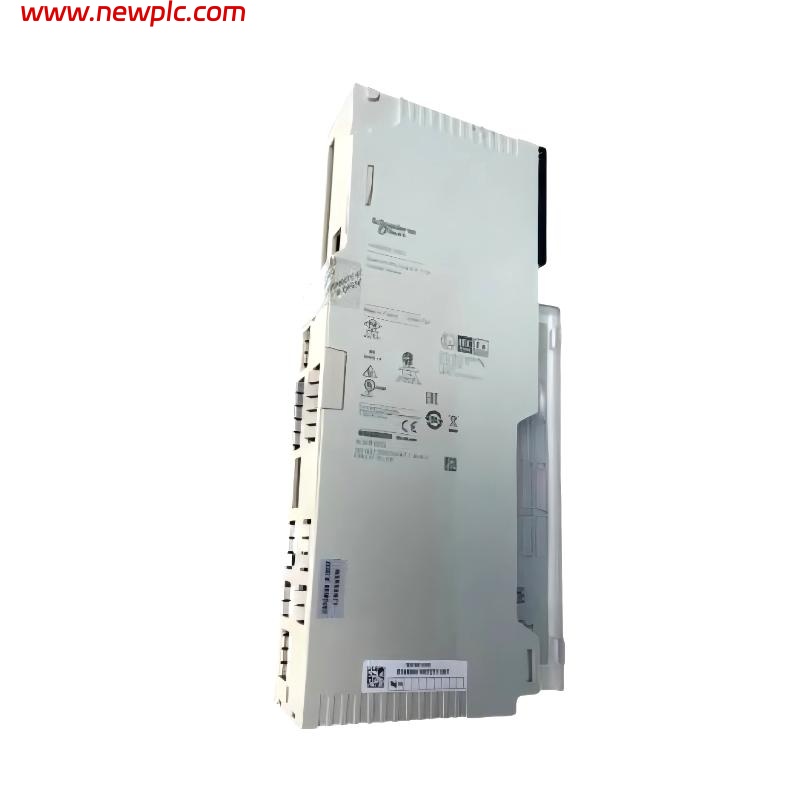

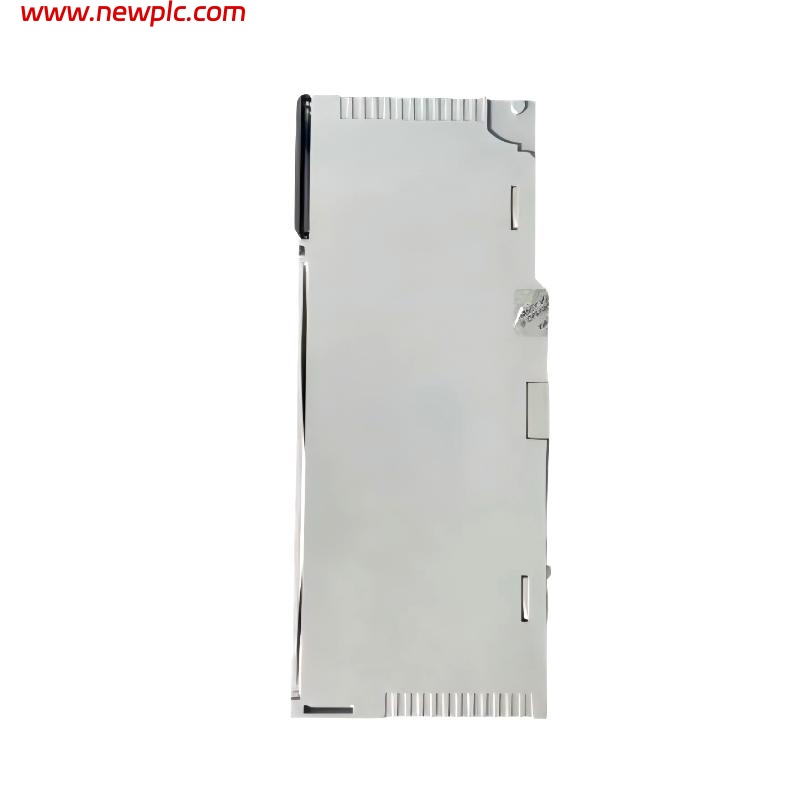

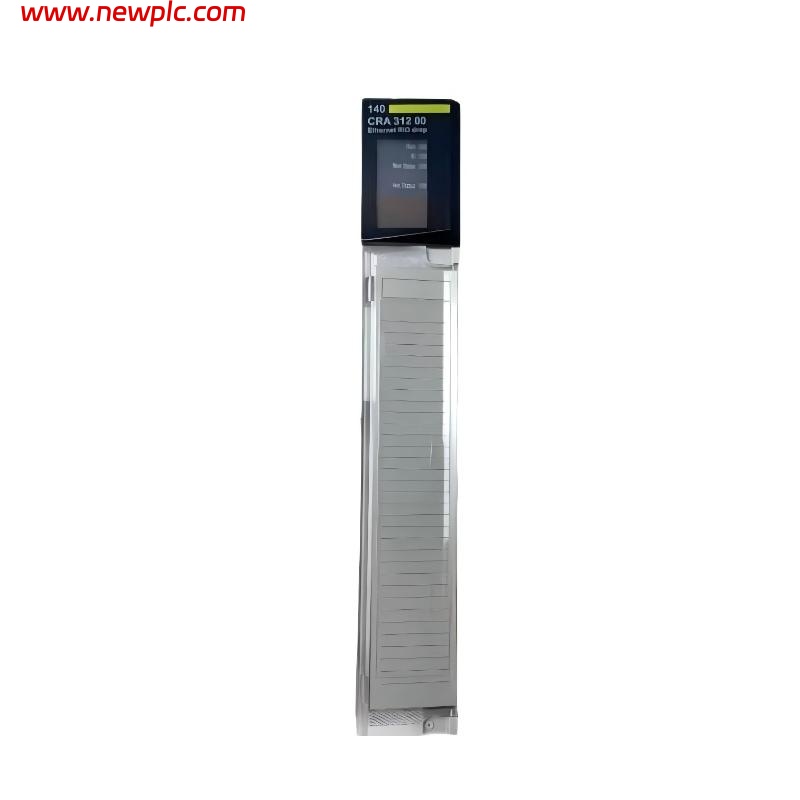

| Product Name | Ethernet RIO Drop Adaptor |
| Model Number | Schneider 140CRA31200C |
| Package Dimensions | 167 x 50 mm |
| Package Weight | 0.554 kg |
| Product Type | Remote I/O Communication Adapter |
| System Compatibility | Modicon Quantum and Ethernet-enabled controllers |
| Communication Interface | Ethernet 10/100 Mbps |
| Supported Protocols | Modbus TCP, Modicon Remote I/O over Ethernet |
| Network Configuration | Star, daisy-chain, or redundant topology |
| Power Supply Voltage | 24 V DC nominal |
| Power Consumption | 3 W typical |
| Maximum RIO Drops Supported | Up to 32 RIO drops per network segment |
| Backplane Connector | Standard Quantum Ethernet interface |
| Diagnostics | Status LEDs for network, link, and module health |
| Isolation Voltage | 1500 V RMS between I/O and internal logic |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting Type | DIN rail or rack-mounted |
| Typical Applications | Industrial process control, distributed Ethernet I/O systems |
FAQ
FAQ
Q1: What is the main purpose of the Schneider 140CRA31200C Ethernet RIO Drop Adaptor?
A1: It functions as a communication interface, connecting Modicon Quantum controllers to distributed RIO drops over Ethernet networks, enabling reliable data exchange in industrial systems.
Q2: Which communication protocols does this adaptor support?
A2: It supports Modbus TCP and Modicon Remote I/O over Ethernet, allowing integration with various industrial automation systems.
Q3: How many RIO drops can be connected using this adaptor?
A3: The adaptor supports up to 32 RIO drops per network segment, providing flexibility for extensive distributed I/O configurations.
Q4: Does the 140CRA31200C include diagnostic features?
A4: Yes, it has status LEDs for network link, module operation, and overall health to facilitate easy monitoring and troubleshooting.
Q5: Can this module operate in redundant network topologies?
A5: Yes, it supports redundant network configurations, ensuring continuous communication even in the event of a network segment failure.
Q6: What type of mounting is supported by the Ethernet RIO Drop Adaptor?
A6: The module can be mounted on standard DIN rails or within a rack, providing flexible installation options for industrial environments.
Q7: How is the 140CRA31200C powered?
A7: It is powered by a nominal 24 V DC supply, which is typical for industrial Ethernet I/O devices.
Q8: What are common applications for this adaptor?
A8: It is commonly used in industrial process control, manufacturing automation, and distributed Ethernet I/O systems requiring reliable and scalable network communication.
