Technical Specifications
| Parameter | Specification |
|---|---|

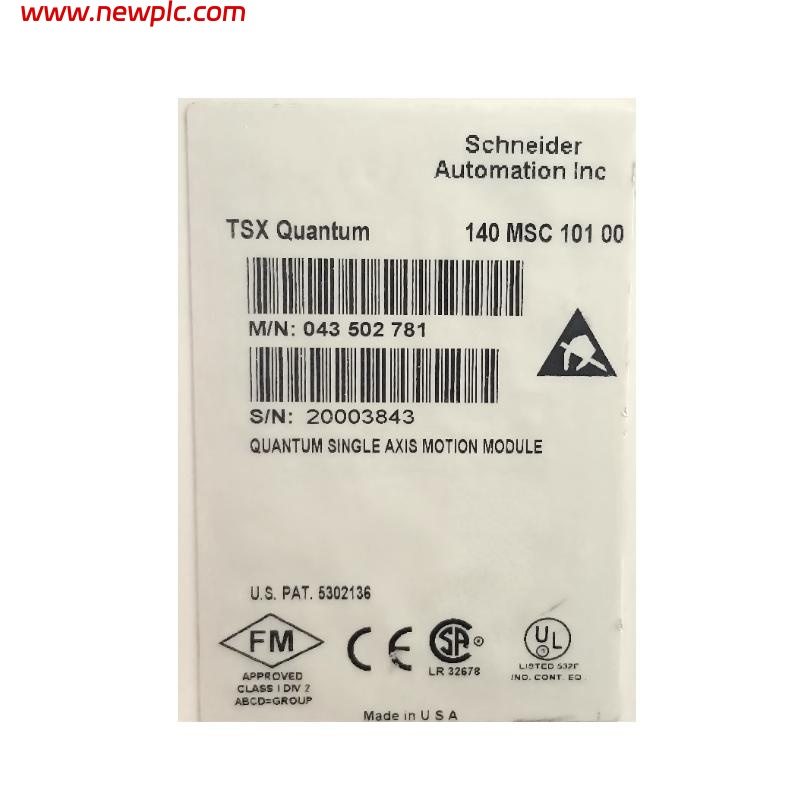

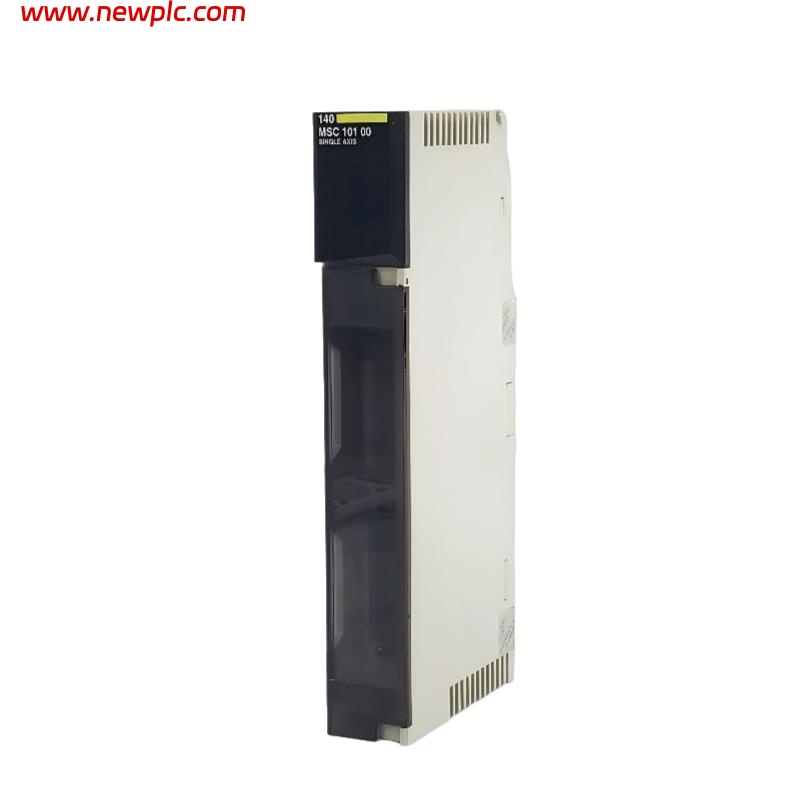

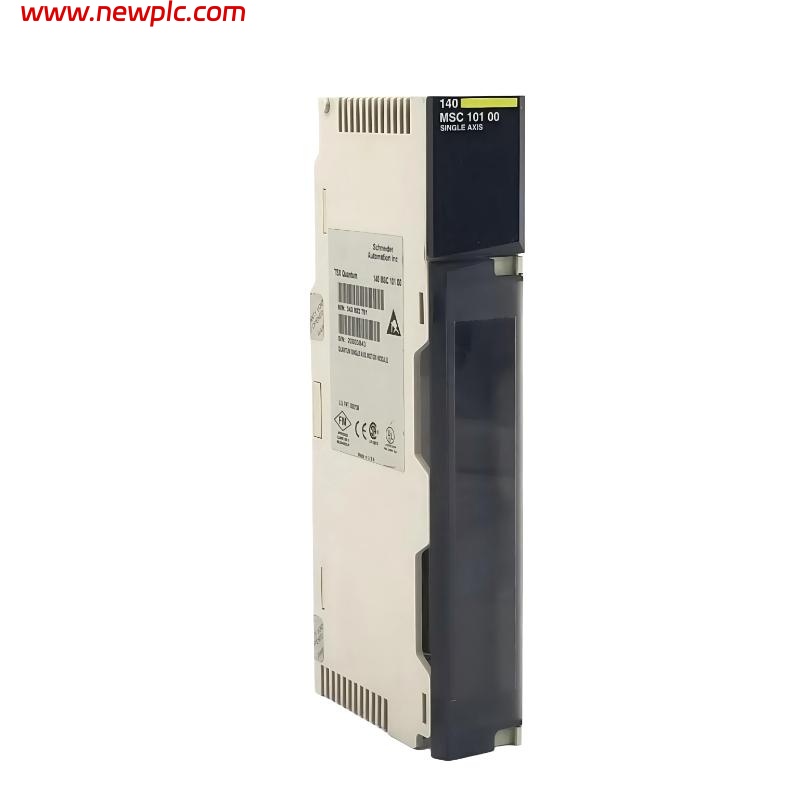

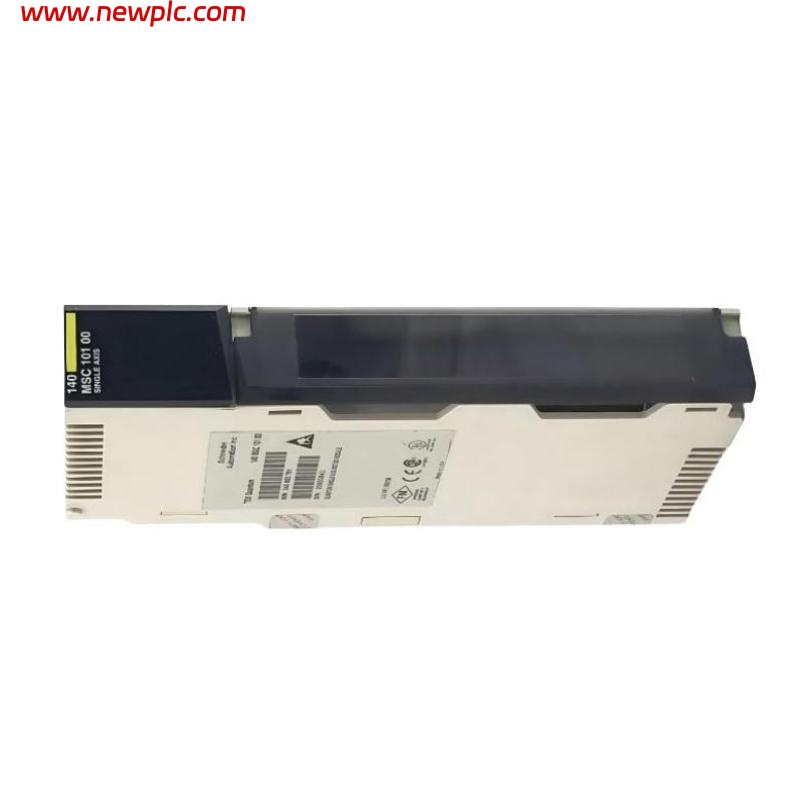

| Model | Schneider 140MSC10100 |
| Type | Single Axis Motion Module |
| Function | Provides precise motion control for a single axis in automation systems |
| Supported Axis | 1 axis |
| Control Type | Position, velocity, and torque control |
| Input Voltage | 24 VDC nominal |
| Communication Interfaces | Ethernet/IP, Modbus TCP, CANopen |
| Programming Language | IEC 61131-3 compliant (structured text, ladder, function block) |
| Feedback Support | Encoder and resolver for closed-loop control |
| I/O Support | Digital and analog I/O compatible |
| Motion Profiles | Point-to-point, linear, and interpolated motion |
| Safety Functions | Emergency stop, Safe Torque Off (STO) support |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -20°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Panel or DIN rail mount |
| Compliance | CE, UL, and RoHS certified |
| Dimensions (HxWxD) | 103.9 × 40.3 × 250 mm |
| Weight | 0.48 kg |
FAQ
FAQ
Q1: What is the primary function of the Schneider 140MSC10100?
A1: The 140MSC10100 is designed to provide precise motion control for a single axis, enabling accurate positioning, velocity regulation, and torque control for automation applications.
Q2: How many axes can this module control?
A2: This module supports a single axis, making it suitable for applications requiring focused, high-precision control on one motion path.
Q3: What types of motion control are available with this module?
A3: It supports point-to-point, linear, and interpolated motion profiles, allowing flexible motion paths and smooth trajectory execution.
Q4: Which communication protocols are supported for system integration?
A4: The module supports Ethernet/IP, Modbus TCP, and CANopen, allowing seamless integration with PLCs, HMIs, and other industrial automation components.
Q5: Can the 140MSC10100 operate in closed-loop control mode?
A5: Yes, it supports encoder and resolver feedback for accurate closed-loop control of position, velocity, and torque, ensuring precise movement.
Q6: What programming languages are compatible with this motion module?
A6: It is compliant with IEC 61131-3 standards, supporting structured text, ladder logic, and function block programming for flexible automation programming.
Q7: What safety features does the module include?
A7: The module includes emergency stop functionality and Safe Torque Off (STO) support to ensure safe operation under emergency or fault conditions.
Q8: What environmental conditions is the module designed to operate in?
A8: The module is designed for industrial environments, operating within 0°C to 55°C and 5% to 95% non-condensing humidity, suitable for standard automation conditions.
