Technical Specifications
| Item | Specification |
|---|---|
| Model | 140NOE77111 |

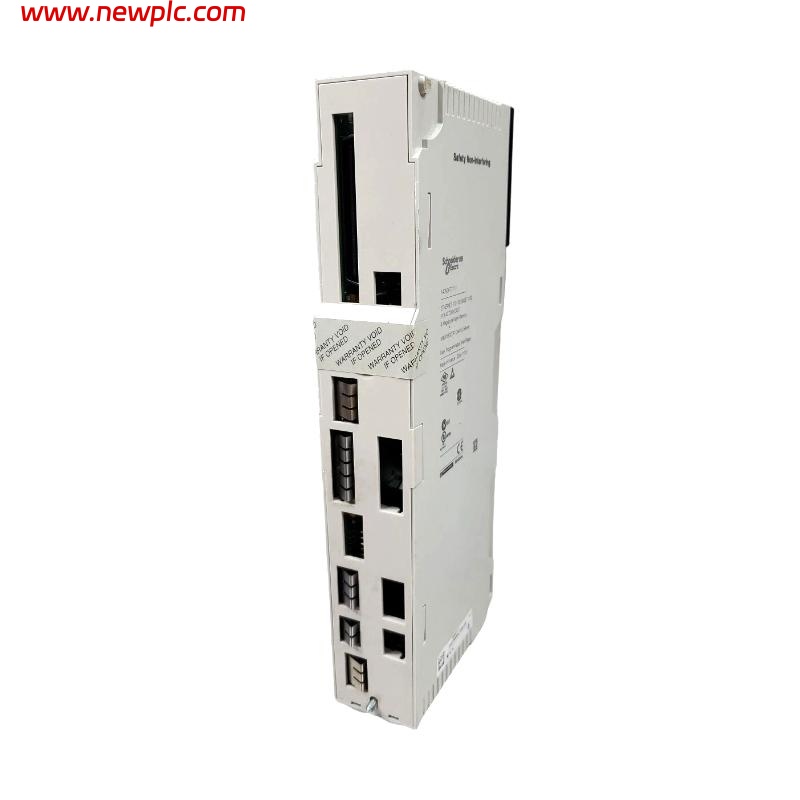

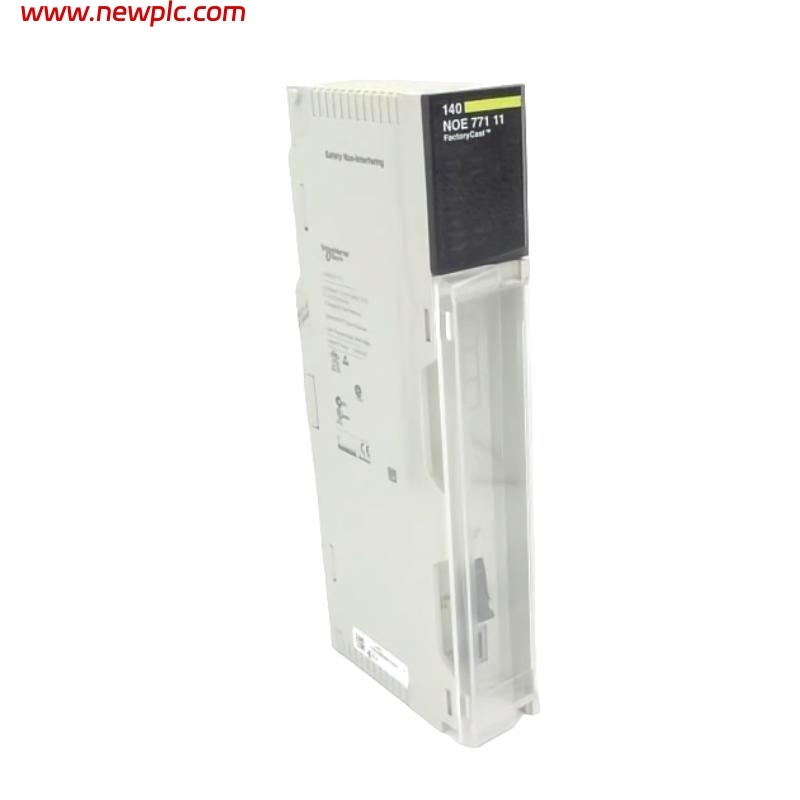

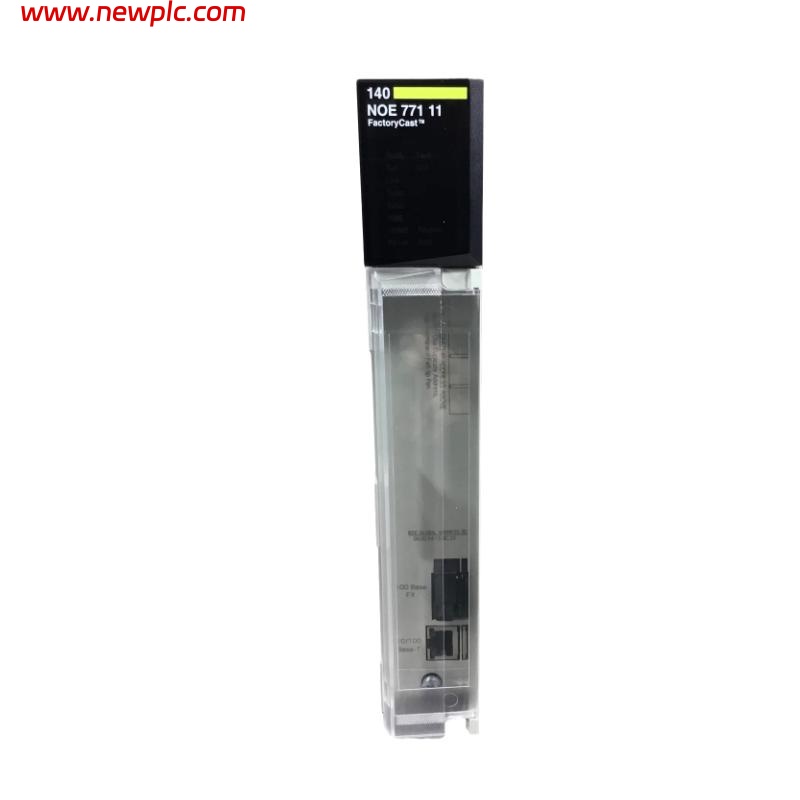

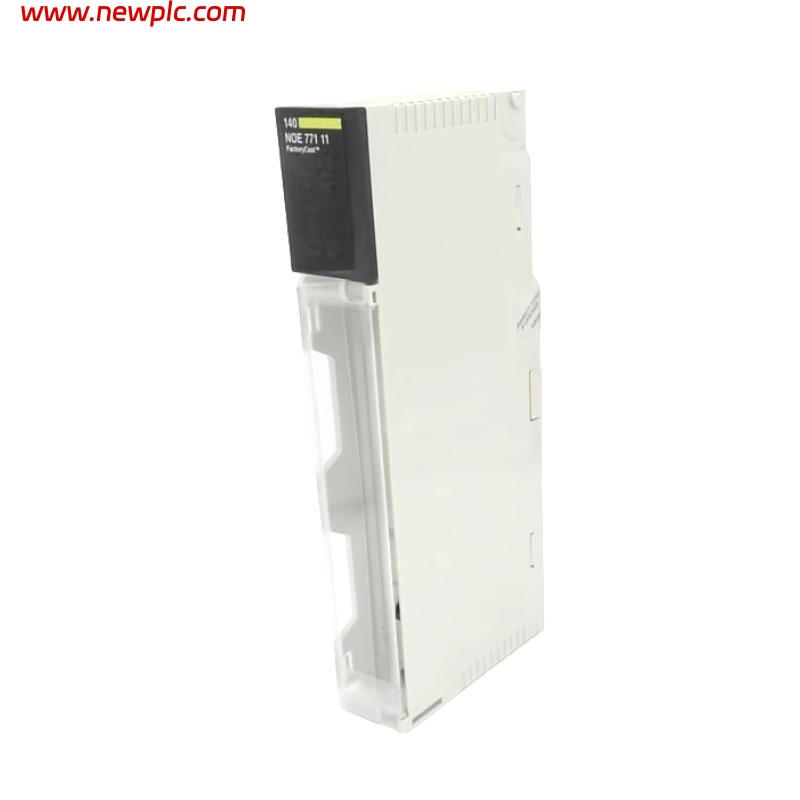

| Product Name | Ethernet TCP/IP Module |
| Manufacturer | Schneider Electric |
| Series | Modicon Quantum Series |
| Communication Interface | 10/100 Mbps Ethernet, RJ45 |
| Supported Protocols | Ethernet TCP/IP |
| Network Topology | Point-to-Point, Star, Bus |
| Maximum Nodes | 32 (depends on PLC configuration) |
| Data Rate | 10/100 Mbps auto-negotiation |
| Operating Voltage | 5 V DC |
| Current | Approx. 750 mA |
| Power Consumption | Max 3.75 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Max 80% RH non-condensing |
| Maximum Altitude | ≤ 1000 m |
| Installation Environment | Indoor, clean, non-corrosive environment |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.345 kg |
FAQ
FAQ
Q1: Which PLC series is the 140NOE77111 compatible with?
A1: It is compatible with the Schneider Modicon Quantum series PLC systems.
Q2: Which communication protocols does the module support?
A2: Supports Ethernet TCP/IP protocol.
Q3: What network topologies are supported?
A3: Supports Point-to-Point, Star, and Bus topologies.
Q4: How many nodes can the module support?
A4: Up to 32 nodes, depending on PLC configuration.
Q5: What is the power and current requirement of the module?
A5: Operating voltage is 5 V DC, current approximately 750 mA, max power consumption 3.75 W.
Q6: What is the operating temperature range?
A6: Operating temperature is 0°C to +60°C; storage temperature is -40°C to +85°C.
Q7: How is the module mounted?
A7: The module is mounted on a DIN rail for industrial use.
Q8: What are the typical applications of this module?
A8: Typical applications include industrial automation network communication, PLC networking, and data acquisition and control systems.
