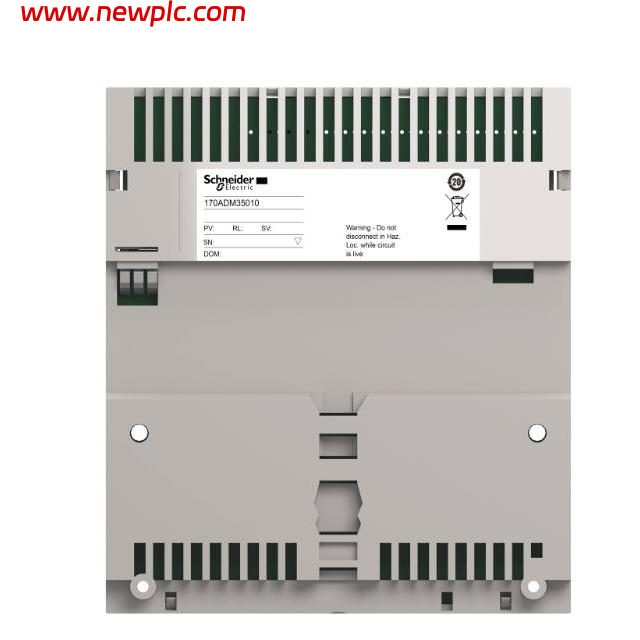

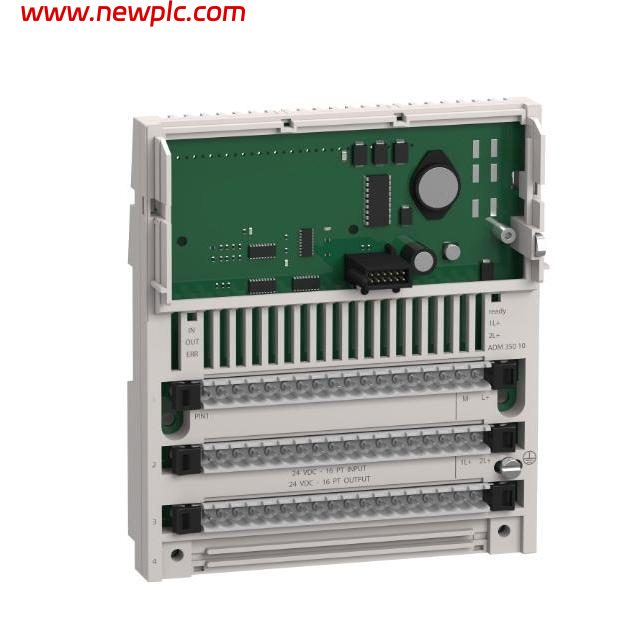

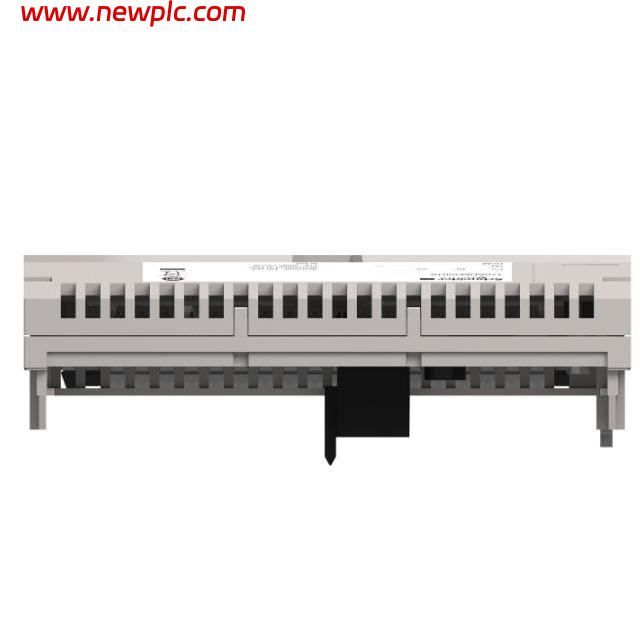

Schneider 170ADM35010 Modicon Momentum Discrete I/O Module

FAQ

Q1: What is Schneider Electric 170ADM35010?
A1: It is a Modicon Momentum discrete I/O module providing 16 inputs and 16 solid-state outputs.

Q2: How many inputs does it have?
A2: It has 16 discrete 24 V DC inputs conforming to IEC 1131-2 Type 1.

Q3: How many outputs does it provide?
A3: It provides 16 solid-state outputs arranged in two groups of eight.

Q4: What is the output current rating?
A4: Each output is rated at 0.5 A, with 4 A maximum per group and 8 A maximum per module.

Q5: What is the input voltage range?
A5: The specified input voltage range is -3…30 V DC, with 11…30 V DC guaranteed as the ON state.

Q6: What is the response time?
A6: Input response time is 2.2 ms from OFF to ON and 3.3 ms from ON to OFF. Output response time is less than 0.1 ms in either direction.

Q7: What are the dimensions and weight?
A7: The module measures approximately 125 × 47.5 × 141.5 mm and weighs approximately 0.20 kg.

Q8: Is the 170ADM35010 still available?
A8: Schneider Electric lists the product for discontinuation on December 1, 2027, with end of standard service on December 31, 2035. Recommended replacement solutions include Modicon Edge I/O NTS input and output modules with bases.
