Technical Specifications
| Parameter | Description |
|---|---|

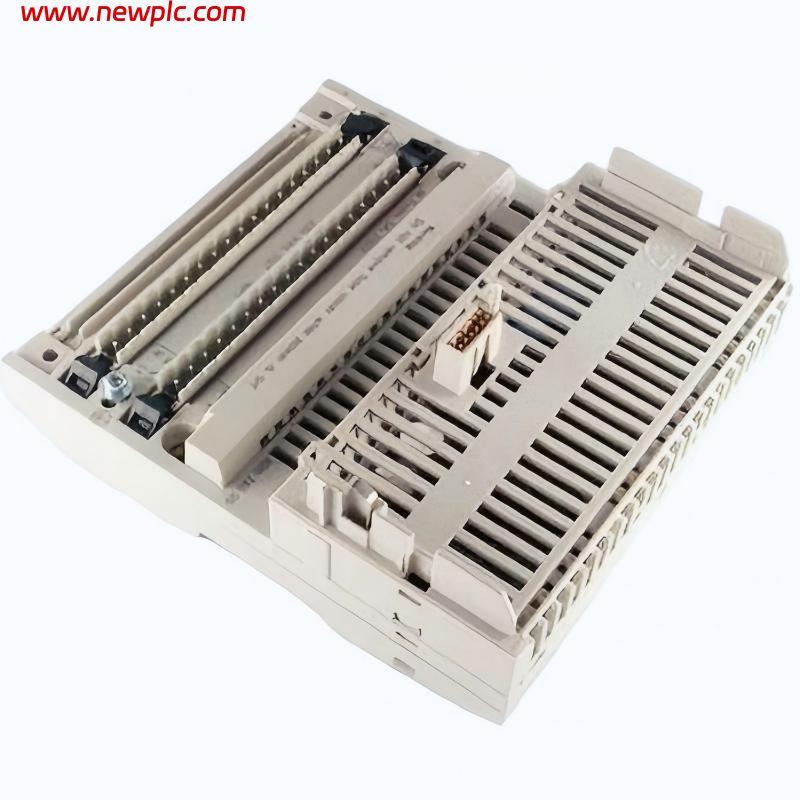

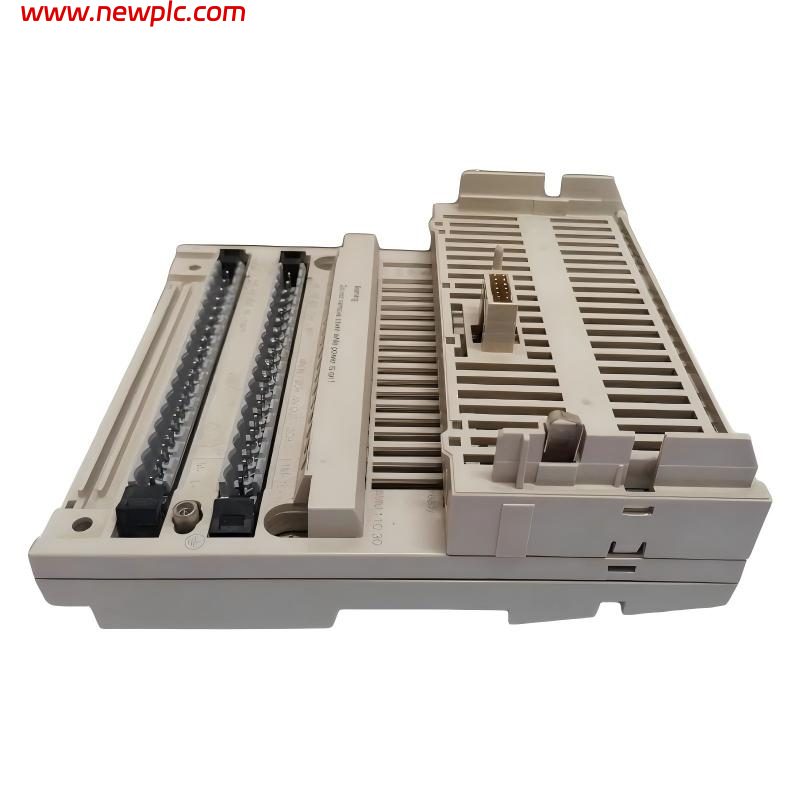

| Product Model | Schneider Electric 170ADO34000 |
| Manufacturer | Schneider Electric |
| Product Series | Modicon Momentum |
| Product Type | Discrete Digital Output Module |
| Function | Provides 24 VDC solid-state transistor outputs for distributed automation control systems |
| Application | Machine control, material handling, process automation, remote I/O systems |
| Output Type | Solid-State Transistor Output |
| Number of Outputs | 16 Outputs |
| Output Configuration | 2 Groups × 8 Outputs |
| Output Voltage | 24 VDC |
| Rated Output Current | 0.5 A per channel |
| Maximum Output Current | 4 A per group / 8 A per module |
| Output Technology | Electronic solid-state switch |
| Output Protection | Electronic short-circuit and overload protection |
| Maximum Leakage Current | 1 mA at 24 VDC |
| Voltage Drop | <0.5 V at 0.5 A output current |
| Surge Current | 5 A for 1 ms |
| Response Time | 0.1 ms (OFF to ON), 0.1 ms (ON to OFF) |
| Isolation | 500 VAC between channels and bus |
| Power Supply | 24 VDC |
| Current Consumption | 250 mA at 24 VDC |
| Power Dissipation | 3.5 W typical / 4.5 W maximum |
| Protective Treatment | Conformal coating (TC) |
| LED Indicators | 16 channel status LEDs |
| Installation | Modicon Momentum I/O Base |
| Communication | Through Momentum communication adapter |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA, FM Class 1 Division 2 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 125 × 141.5 × 47.5 mm (W × H × D) |
| Weight | Approx. 0.21 kg |
FAQ
FAQ
Q1: What is the Schneider Electric 170ADO34000 used for?
A: The 170ADO34000 is used in Modicon Momentum automation systems to control 24 VDC field devices, including actuators, solenoid valves, relays, and industrial indicators.
Q2: How many outputs does the 170ADO34000 provide?
A: The module provides 16 digital outputs, divided into two groups of 8 outputs.
Q3: What type of outputs does this module use?
A: The module uses solid-state transistor outputs with a rated voltage of 24 VDC and a current rating of 0.5 A per channel.
Q4: Does the 170ADO34000 have output protection?
A: Yes. The outputs include electronic short-circuit and overload protection to improve system reliability.
Q5: What PLC system is compatible with the 170ADO34000?
A: The module is part of the Schneider Electric Modicon Momentum automation platform and is installed with Momentum I/O bases and communication adapters.
Q6: What are the dimensions and weight of the 170ADO34000?
A: The module dimensions are approximately 125 × 141.5 × 47.5 mm, and the weight is approximately 0.21 kg.
Q7: Does the module provide channel status indication?
A: Yes. The 170ADO34000 includes 16 LED indicators for monitoring the operating status of each output channel.
Q8: What should be checked before installing the 170ADO34000?
A: Before installation, verify the 24 VDC power supply, output load current requirements, wiring configuration, Momentum I/O base compatibility, communication adapter settings, and environmental conditions.
