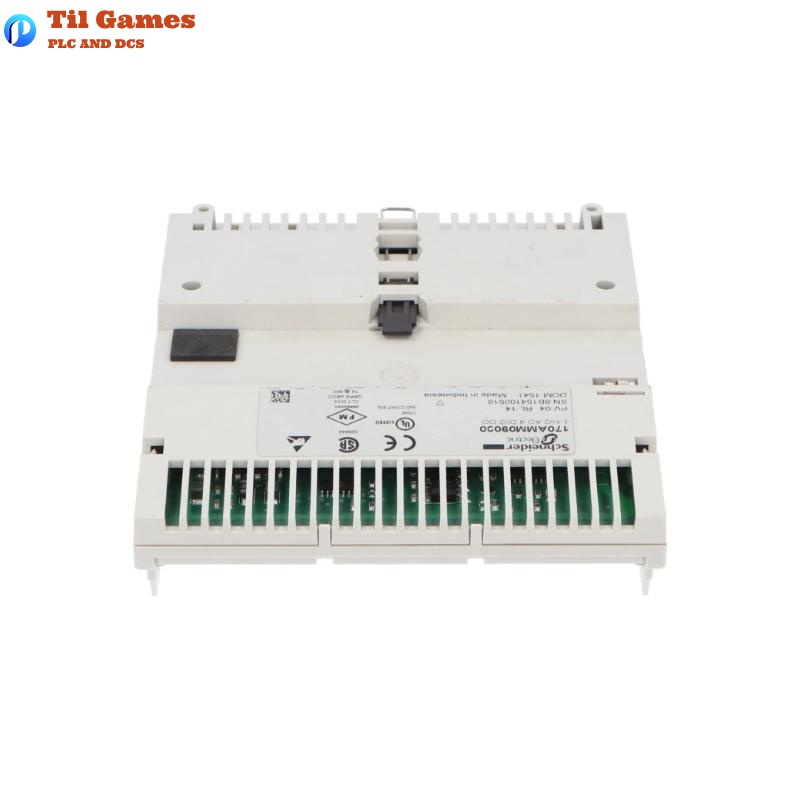

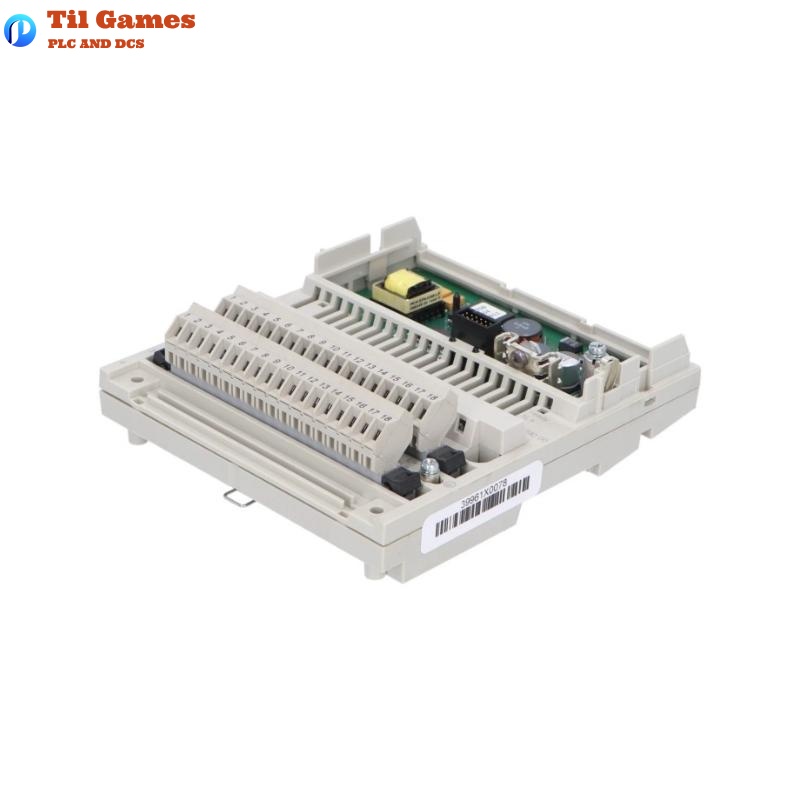

Schneider 170AMM09000 Analogue Discrete I/O Base

Frequently Asked Questions (FAQ)

Q1: What types of analog input signals are supported by the 170AMM09000 module?
A1: It supports ±10V, ±5V, ±20mA, 1–5V, and 4–20mA differential inputs.

Q2: What is the maximum load for the analog outputs?
A2: Up to 600Ω for current output and at least 3kΩ for voltage output.

Q3: Does the discrete output have short-circuit protection?
A3: Yes, it includes short-circuit and overload protection for discrete outputs.

Q4: Is there input overvoltage protection on the analog channels?
A4: Yes, analog inputs are protected against -50 to +50V for short durations.

Q5: What type of discrete output does this module provide?
A5: It uses transistor outputs with positive logic.

Q6: What applications is the 170AMM09000 suited for?
A6: It is commonly used in infrastructure, energy systems, material handling, and simple machine control.

Q7: What is the analog conversion accuracy?
A7: Up to ±0.35% at 25°C for outputs; analog input accuracy can be as fine as 0.0016.

Q8: What is the operating temperature range of the module?
A8: The module operates reliably between 0°C and 60°C.

170AMM09000 Analogue Discrete I/O Base Schneider
