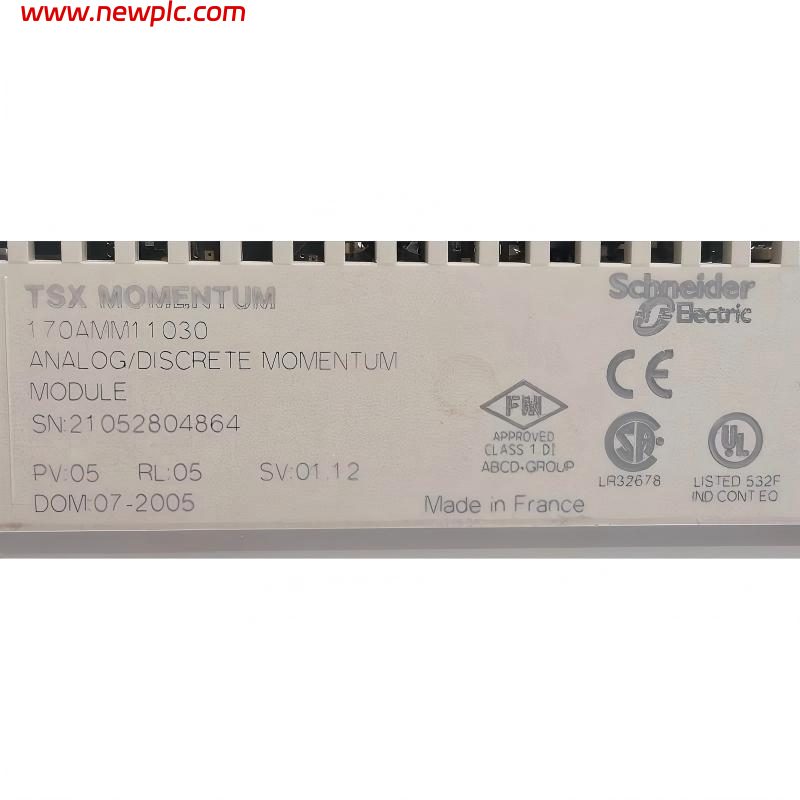

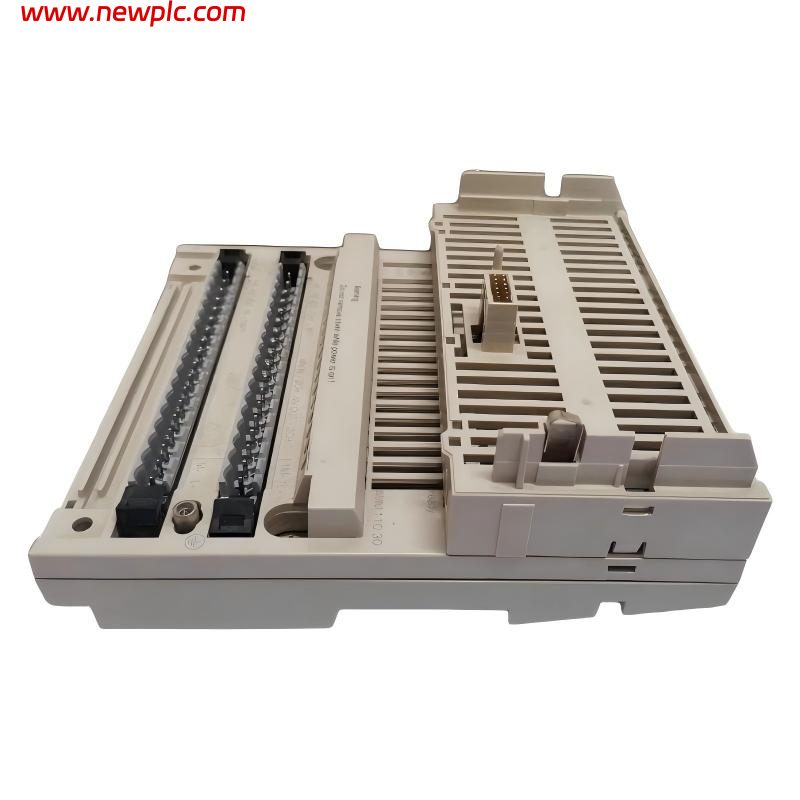

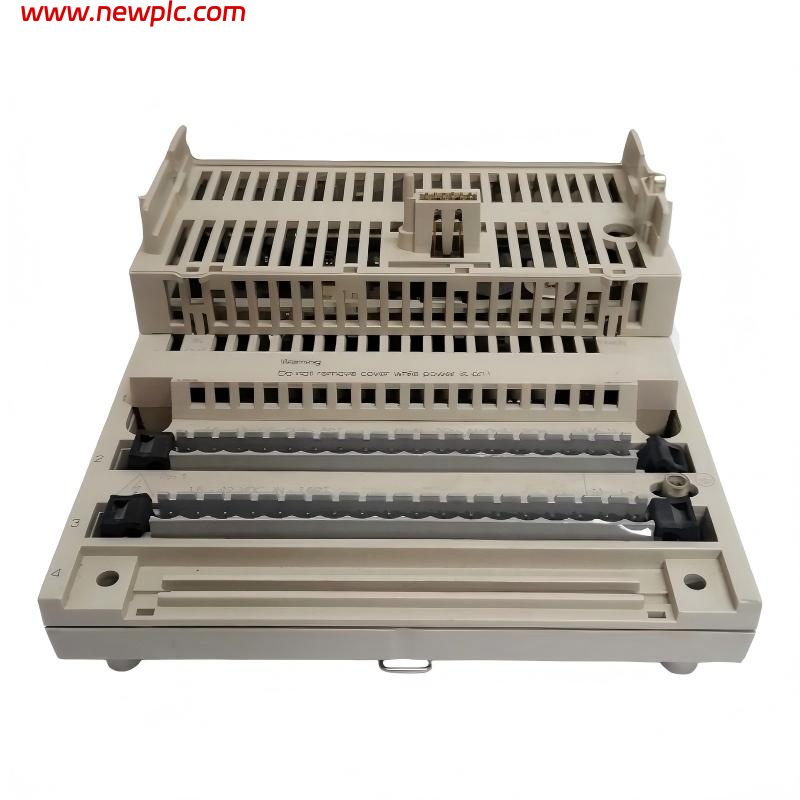

Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | Schneider Electric 170AMM11030 |
| Manufacturer | Schneider Electric |
| Product Series | Modicon Momentum |
| Product Type | Mixed Analog and Digital I/O Module |
| Function | Provides analog input/output and digital I/O capability for distributed automation systems |
| Application | Process control, machine automation, remote I/O systems, industrial monitoring and control |
| Analog Input Channels | 2 Channels |
| Analog Output Channels | 2 Channels |
| Digital Inputs | 16 Channels |
| Digital Outputs | 8 Channels |
| Analog Input Type | Differential Analog Input |
| Analog Input Ranges | ±10 VDC, 0–10 VDC, 0–20 mA, 4–20 mA |
| Analog Output Type | Voltage Output |
| Analog Output Range | ±10 VDC |
| Analog Resolution | 12 bits + sign |
| Digital Input Voltage | 24 VDC |
| Digital Input Type | IEC 1131-2 Type 1 |
| Digital Output Type | Solid-State Transistor Output |
| Digital Output Voltage | 24 VDC |
| Digital Output Current | 0.5 A per point |
| Power Supply | 24 VDC |
| Supply Voltage Range | 16–42 VDC |
| Module Current Consumption | 400 mA at 24 VDC |
| Analog Input Conversion Time | Approx. 12 ms |
| Analog Output Update Time | Approx. 2 ms |
| Output Protection | Short-circuit and overload protection |
| Isolation | 500 VAC field-to-ground; 700 VDC analog output channel-to-channel |
| LED Indicators | Ready, digital I/O status, analog channel status |
| Installation | Modicon Momentum I/O Base |
| Communication | Through Momentum communication adapter |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA, FM Class 1 Division 2 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 125 × 141.5 × 47.5 mm (H × W × D) |
| Weight | Approx. 0.25 kg |
FAQ
FAQ
Q1: What is the Schneider Electric 170AMM11030 used for?
A: The 170AMM11030 is used in Modicon Momentum systems to handle mixed signal applications, including analog measurement, analog control output, digital signal monitoring, and digital device control.
Q2: How many I/O channels does the 170AMM11030 provide?
A: The module provides 2 analog inputs, 2 analog outputs, 16 digital inputs, and 8 digital outputs in one distributed I/O module.
Q3: What analog signals are supported by the 170AMM11030?
A: The analog input channels support common industrial signals such as ±10 VDC, 0–10 VDC, 0–20 mA, and 4–20 mA, while the analog outputs provide voltage control signals.
Q4: What type of digital outputs does this module use?
A: The 170AMM11030 uses 24 VDC solid-state transistor outputs, with each output channel supporting up to 0.5 A.
Q5: What power supply does the 170AMM11030 require?
A: The module requires a 24 VDC external power supply with an operating range of approximately 16–42 VDC.
Q6: What are the dimensions and weight of the 170AMM11030?
A: The module dimensions are approximately 125 × 141.5 × 47.5 mm, with a weight of about 0.25 kg.
Q7: Does the 170AMM11030 include protection functions?
A: Yes. The module provides protection features including short-circuit and overload protection for digital outputs, as well as electrical isolation between field circuits and communication interfaces.
Q8: Are there any known issues with older versions of the 170AMM11030?
A: Schneider Electric reported that some early versions could experience incorrect analog output values after several minutes of operation. Updated hardware and firmware versions were released to correct this issue.
