Technical Specifications
| Parameter | Description |
|---|---|

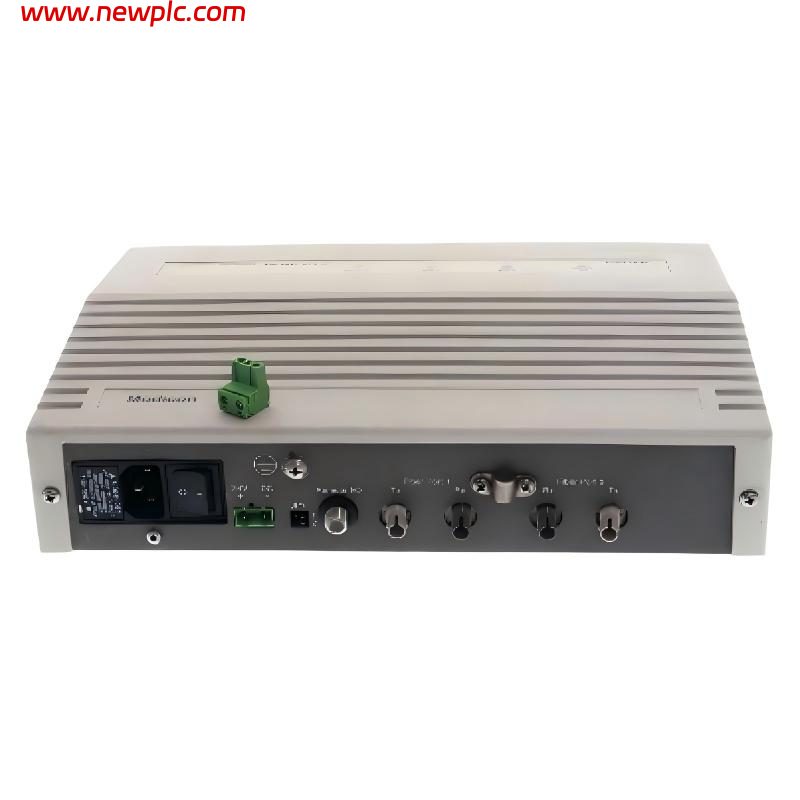

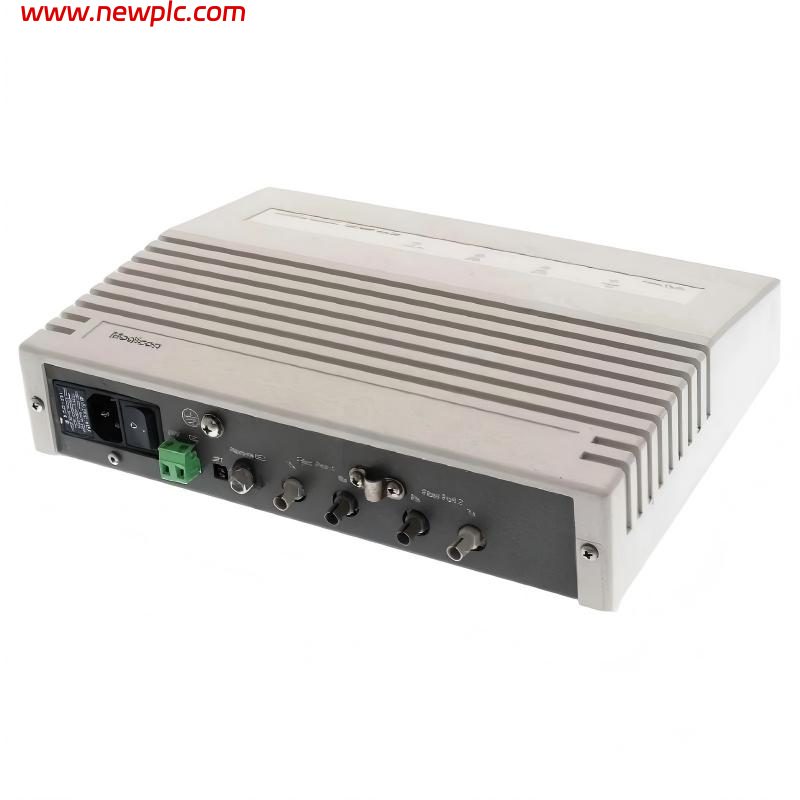

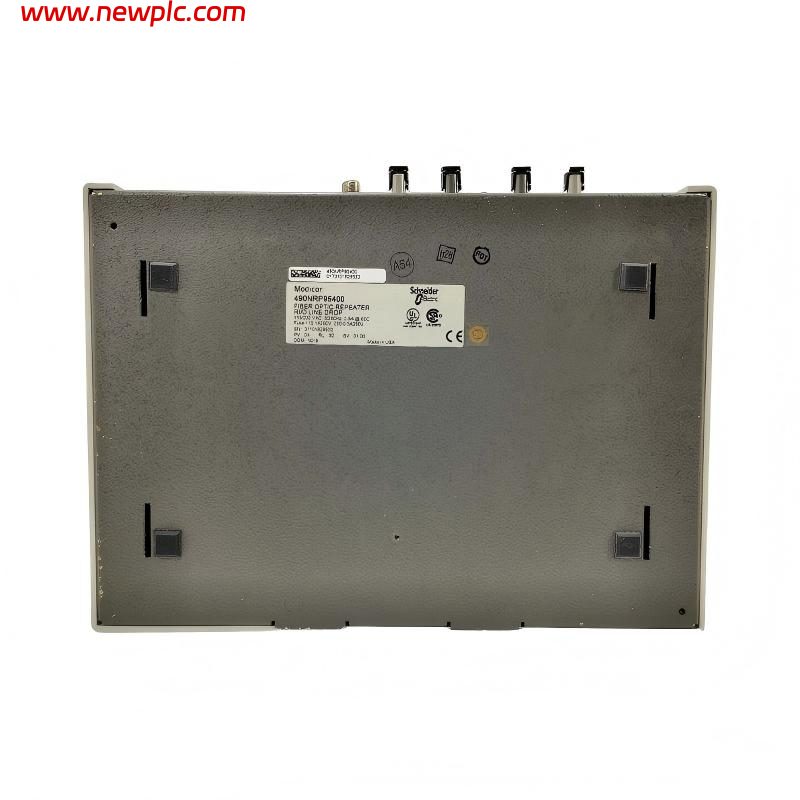

| Product Model | Schneider Electric 490NRP95400 |
| Manufacturer | Schneider Electric |
| Product Series | Modicon Quantum |
| Product Type | Remote I/O (RIO) Fiber Optic Drop Module |
| Function | Provides fiber optic communication connection between Quantum PLC systems and remote I/O drops |
| Application | Distributed I/O systems, industrial automation networks, process control applications |
| Communication Network | Modicon S908 Remote I/O (RIO) Network |
| Communication Type | Fiber Optic Link |
| Fiber Type | Multimode Fiber (MMF) |
| Recommended Fiber | 62.5/125 μm Multimode Fiber |
| Supported Fiber Cable | 50/125 μm, 62.5/125 μm, 100/140 μm multimode fiber |
| Network Role | Remote I/O Drop Interface |
| Compatible Platform | Modicon Quantum Automation Platform |
| Compatible System | S908 Remote I/O Network |
| Fiber Connector Type | ST Fiber Optic Connector |
| Maximum Fiber Distance | Up to approximately 3 km (depending on fiber type and optical loss) |
| Communication Method | Remote I/O Serial Communication |
| Data Transmission | Cyclic I/O Data Exchange |
| Installation | Quantum Remote I/O Rack |
| Power Supply | Supplied through Quantum backplane |
| LED Indicators | Network status and diagnostic indicators |
| Configuration | Configured through Quantum programming software |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Approx. 241 × 31.5 × 103.6 mm (H × W × D) |
| Weight | Approx. 3.2 kg (shipping weight) |
FAQ
FAQ
Q1: What is the Schneider Electric 490NRP95400 used for?
A: The 490NRP95400 is used as a fiber optic Remote I/O drop interface for Modicon Quantum PLC systems, allowing remote I/O racks to communicate with the main PLC controller over an S908 RIO network.
Q2: What communication network does the 490NRP95400 support?
A: The module supports the Modicon S908 Remote I/O (RIO) network used with Quantum automation platforms.
Q3: What type of fiber cable is required for the 490NRP95400?
A: The 490NRP95400 supports multimode fiber only. Schneider Electric recommends 62.5/125 μm multimode fiber, while 50/125 μm and 100/140 μm multimode fibers are also supported.
Q4: Is the 490NRP95400 compatible with Modicon Quantum PLC systems?
A: Yes. The module belongs to the Modicon Quantum automation platform and is designed for Quantum Remote I/O applications.
Q5: What is the advantage of using fiber optic communication with this module?
A: Fiber optic communication provides electrical isolation, improved resistance to electromagnetic interference, and reliable communication over longer distances compared with traditional copper wiring.
Q6: What are the dimensions and weight of the 490NRP95400?
A: The module shipping information indicates a package weight of approximately 3.2 kg, with package dimensions around 299 × 398 × 150 mm. The actual module size is smaller than the shipping package.
Q7: Is the 490NRP95400 still available from Schneider Electric?
A: The 490NRP95400 has been discontinued by Schneider Electric and is no longer commercially available as a new product. Replacement options should be confirmed with Schneider Electric or automation system specialists.
Q8: What should be checked before replacing a 490NRP95400?
A: Before replacement, verify the Quantum PLC model, S908 RIO network configuration, fiber type, connector type, remote I/O rack compatibility, and existing application requirements to ensure system compatibility.
