Technical Specifications
| Item | Specification |
|---|---|

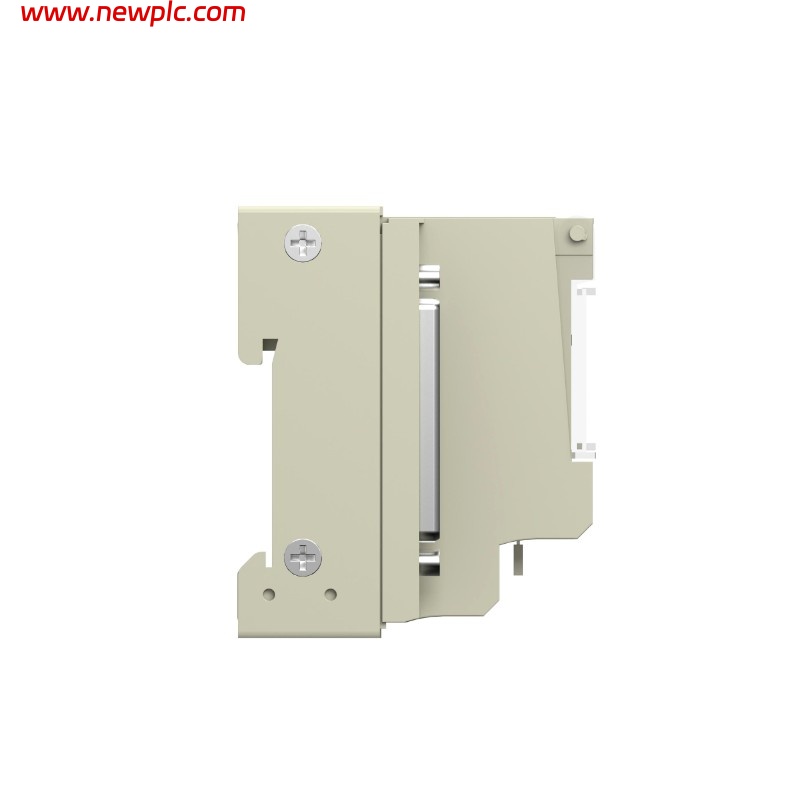

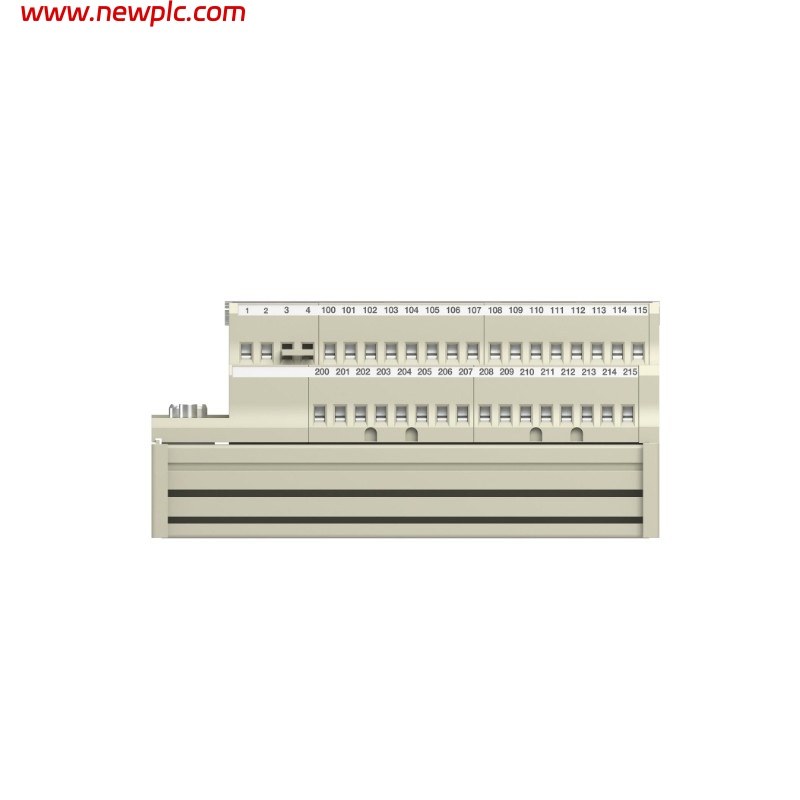

| Model | Schneider ABE7CPA410 |
| Type | Analog Connection Sub-Base |
| Product Category | PLC I/O wiring accessory |
| Product Family | Advantys Telefast ABE7 |
| Function | Connection and distribution sub-base for analog signals |
| Number of Channels | 4 analog channels |
| Supported Signal Type | Analog input signals |
| PLC Connection | 25-pin SUB-D connector |
| Field Wiring | Screw terminal blocks |
| Electrical Isolation | Channel and supply isolation |
| Rated Insulation Voltage | 2000 V |
| Installation Category | Category II |
| Mounting Method | 35 mm DIN rail or screw mounting |
| Protection Rating | IP20 |
| Housing Material | Industrial-grade plastic |
| Operating Temperature Range | 0 °C to +60 °C |
| Storage Temperature Range | –40 °C to +80 °C |
| Application Environment | Industrial control cabinets and automation systems |
| Compatible PLC Modules | Modicon M340 analog input modules (e.g., BMXAMI0410) |
| Dimensions | Approx. 96 mm × 82 mm × 70 mm |
| Weight | Approximately 0.18 kg |
FAQ
FAQ
Q1: What is the main purpose of the ABE7CPA410?
It provides a convenient connection and distribution interface for four analog input channels between a PLC module and field wiring.
Q2: Which PLC platforms are compatible with the ABE7CPA410?
It is designed for Schneider Modicon systems using Advantys Telefast ABE7 accessories, especially Modicon M340 analog input modules.
Q3: How many analog channels does this sub-base support?
The ABE7CPA410 supports four independent analog channels.
Q4: How is the ABE7CPA410 connected to the PLC module?
It connects via a 25-pin SUB-D connector directly to the corresponding PLC analog input module.
Q5: What type of field wiring connections are provided?
The module uses screw terminal blocks for secure and reliable field signal connections.
Q6: Does the ABE7CPA410 provide electrical isolation?
Yes, it offers electrical isolation to help protect the PLC and improve signal integrity.
Q7: Can the ABE7CPA410 be mounted in standard control cabinets?
Yes, it is designed for DIN rail mounting or screw mounting in industrial control panels.
Q8: What are the physical dimensions and weight of the ABE7CPA410?
The unit measures approximately 96 mm × 82 mm × 70 mm and weighs about 0.18 kg.
