Technical Specifications
| Parameter | Description |
|---|---|

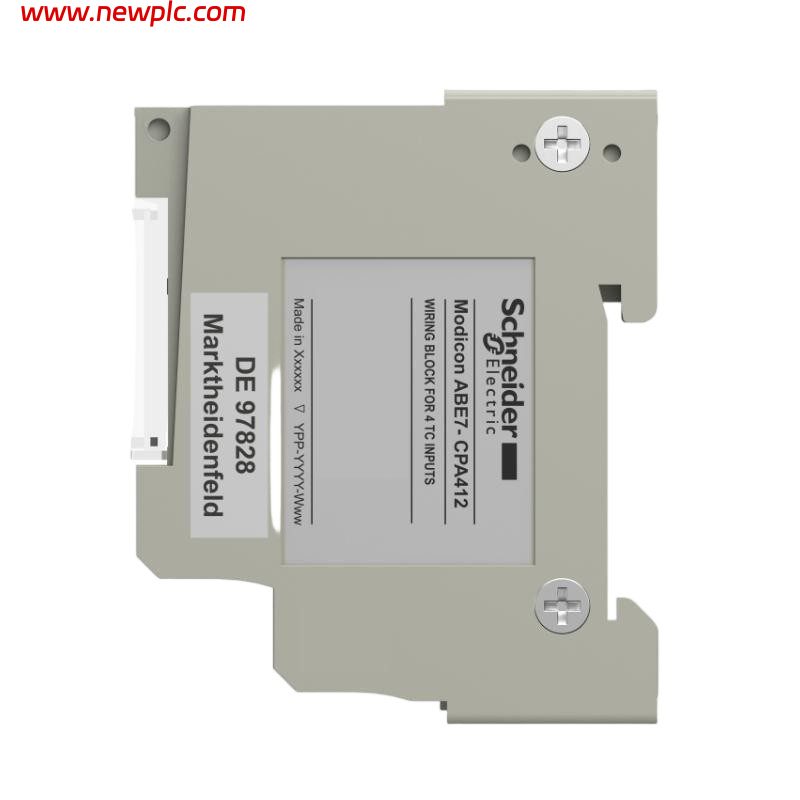

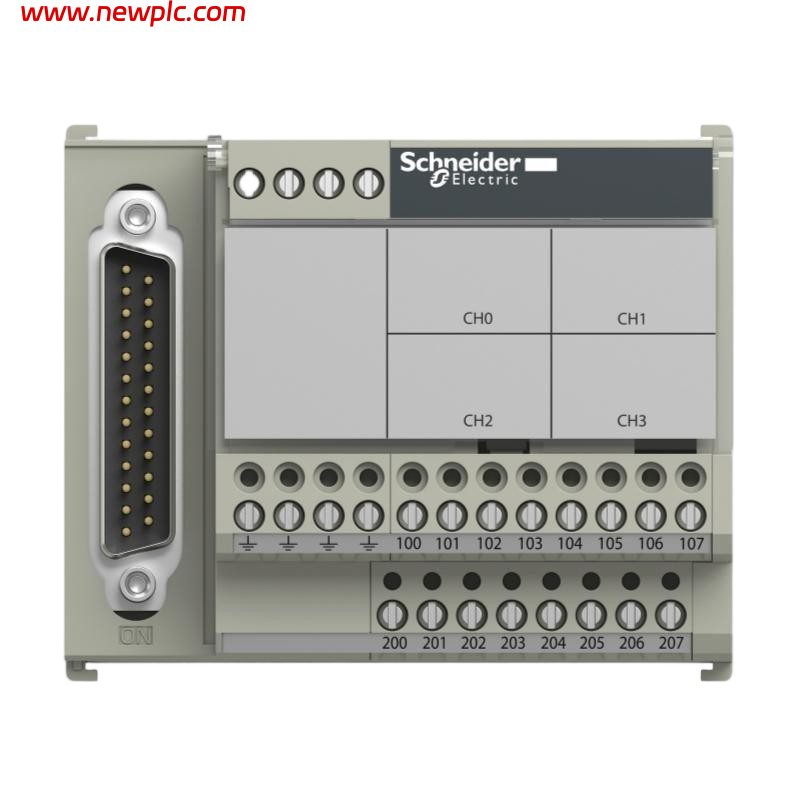

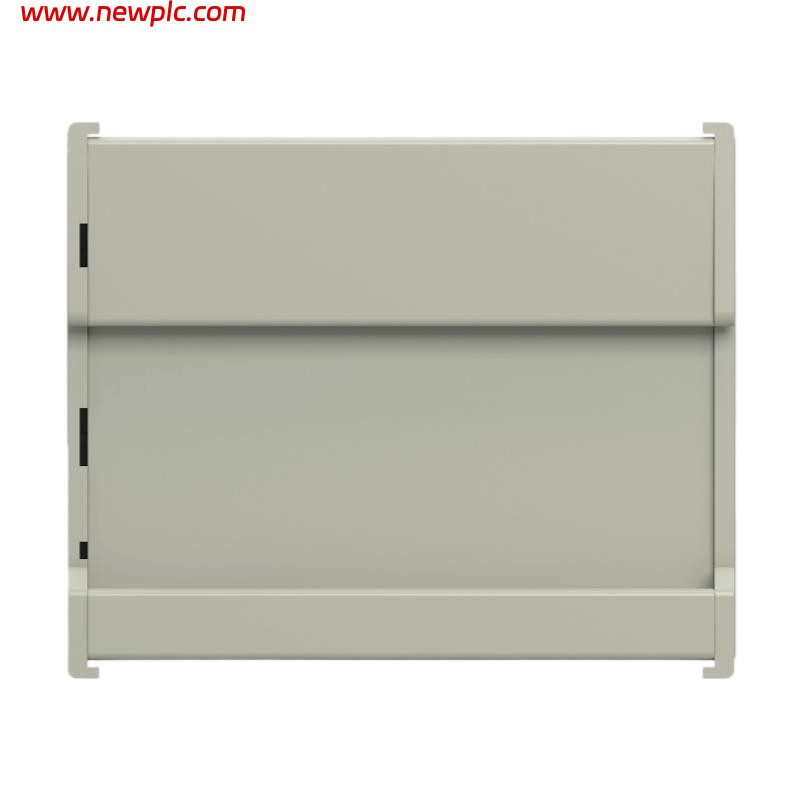

| Product Name | Schneider Electric ABE7CPA412 |
| Part Number | ABE7CPA412 |
| Product Type | Telefast Connection Sub-Base (Analog Thermocouple Interface Module) |
| Manufacturer | Schneider Electric |
| Range | Modicon ABE7 / Telefast system |
| Function | Provides interface between field thermocouples and PLC analog input modules, including signal conditioning and cold junction compensation |
| Application | Industrial automation / Modicon M340 / M580 analog temperature acquisition systems |
| Number of Channels | 4 thermocouple input channels |
| Supported Sensors | Thermocouples (various types depending on configuration) |
| Signal Conditioning | Built-in cold junction compensation |
| Electrical Interface | 25-way SUB-D connector to PLC + screw terminal field wiring |
| Isolation | 2000 V insulation between terminals and mounting rail |
| Mounting Type | DIN rail (35 mm) or panel mounting |
| Wiring Type | Screw terminal connection |
| Compatibility | Schneider Modicon M340 BMXART0414 / BMXART0814 analog input modules |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH non-condensing |
| Certifications | UL, CSA, DNV, BV, GL, LROS |
| Dimensions (W × H × D) | Approx. 125 × 141.5 × 47.5 mm |
| Weight | 0.18 kg (180 g) |
FAQ
FAQ
Q1: What is Schneider ABE7CPA412 used for?
A1: It is used as a thermocouple connection sub-base that links field temperature sensors to Schneider PLC analog input modules, while providing signal conditioning and cold junction compensation.
Q2: Is ABE7CPA412 a module or a cable?
A2: It is neither a PLC module nor a cable; it is a connection sub-base (interface terminal unit).
Q3: How many input channels does it support?
A3: It supports 4 thermocouple input channels.
Q4: What PLC systems is it compatible with?
A4: It is compatible with Schneider Modicon M340 and M580 systems using BMXART0414 or BMXART0814 modules.
Q5: What is its main function?
A5: It distributes and conditions thermocouple signals and provides cold junction compensation before sending signals to the PLC.
Q6: What type of wiring does it use?
A6: It uses screw terminal field wiring with a 25-way SUB-D connection to the PLC module.
Q7: What are its physical dimensions?
A7: Approximately 125 × 141.5 × 47.5 mm.
Q8: What is its weight?
A8: Approximately 0.18 kg (180 g).
