Technical Specifications
| Parameter | Description |
|---|---|

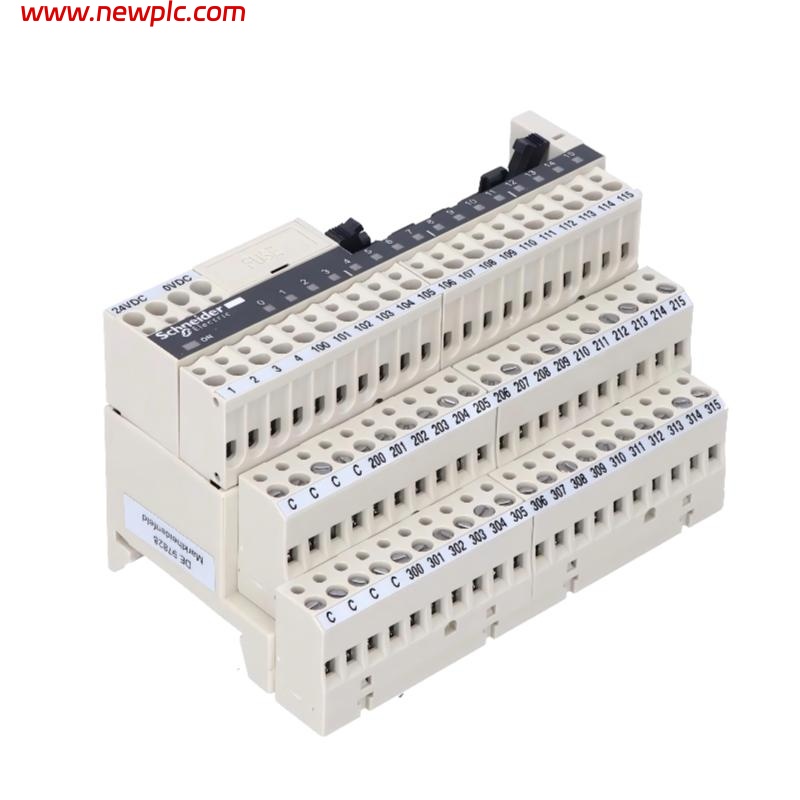

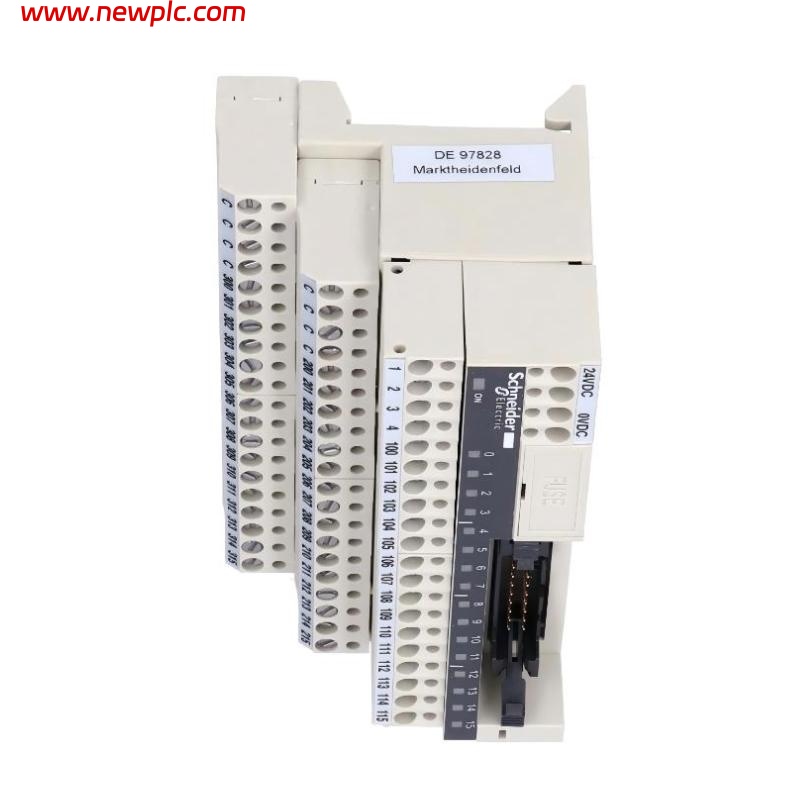

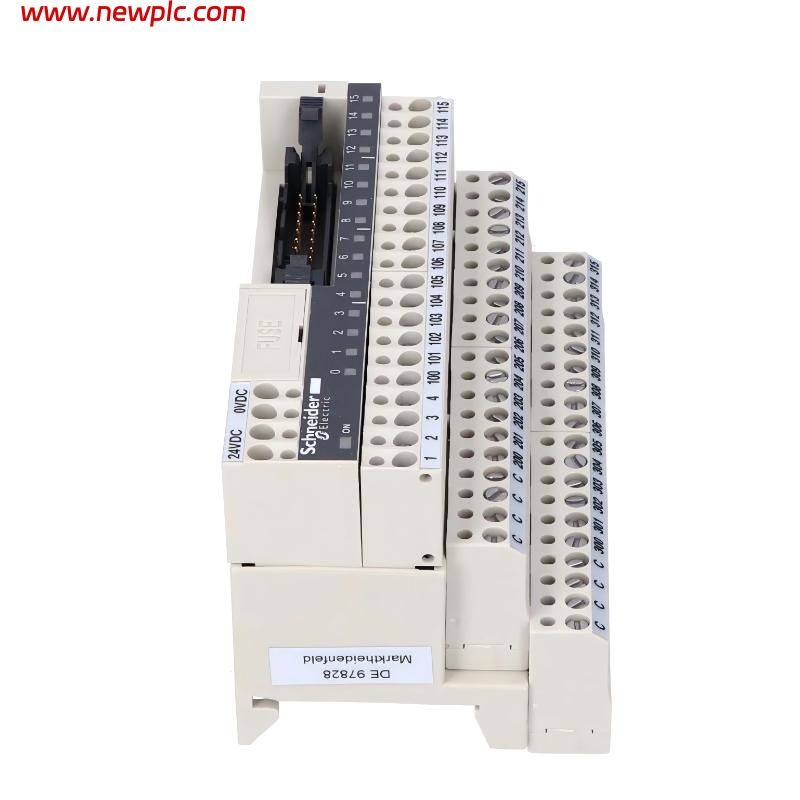

| Product Name | Schneider ABE7H16C31 Passive Connection Base |
| Type | Passive terminal connection base for distributed I/O systems |
| Function | Provides terminal points for field signal wiring to interface with ABE7 series modules |
| Application | Used to connect sensors, actuators, and control signals through plug-in interface modules |
| Wiring Type | Screw-type terminal block |
| Number of Channels | 16 channels |
| Mounting | Standard DIN-rail mounting |
| Dimensions | 106 × 63 × 64 mm |
| Weight | 0.26 kg |
| Compatibility | Designed for Schneider ABE7 interface modules |
FAQ
FAQ
Q1: What is the main function of the ABE7H16C31 passive connection base?
A1: It provides terminal wiring points that allow field devices to be connected to Schneider’s ABE7 interface modules.
Q2: Does this base include any active components or electronics?
A2: No, it is a fully passive base with no electronics or signal processing.
Q3: What type of wiring terminals does it use?
A3: It uses screw-type terminals suitable for industrial-grade wiring.
Q4: Is this base compatible with all ABE7 plug-in modules?
A4: Yes, it supports the full range of ABE7 interface modules.
Q5: Is DIN-rail mounting supported?
A5: Yes, it mounts directly onto standard industrial DIN rails.
Q6: Can the base handle different kinds of field signals simultaneously?
A6: Yes, each of the 16 channels is isolated for independent signal wiring.
Q7: Does the base require configuration after installation?
A7: No configuration is necessary; it is ready for wiring as soon as it is mounted.
Q8: Is this base beneficial for organizing complex control panel wiring?
A8: Yes, it streamlines wiring layout and provides a clean, structured interface between field devices and control hardware.
