Technical Specifications
| Item | Specification |
|---|---|

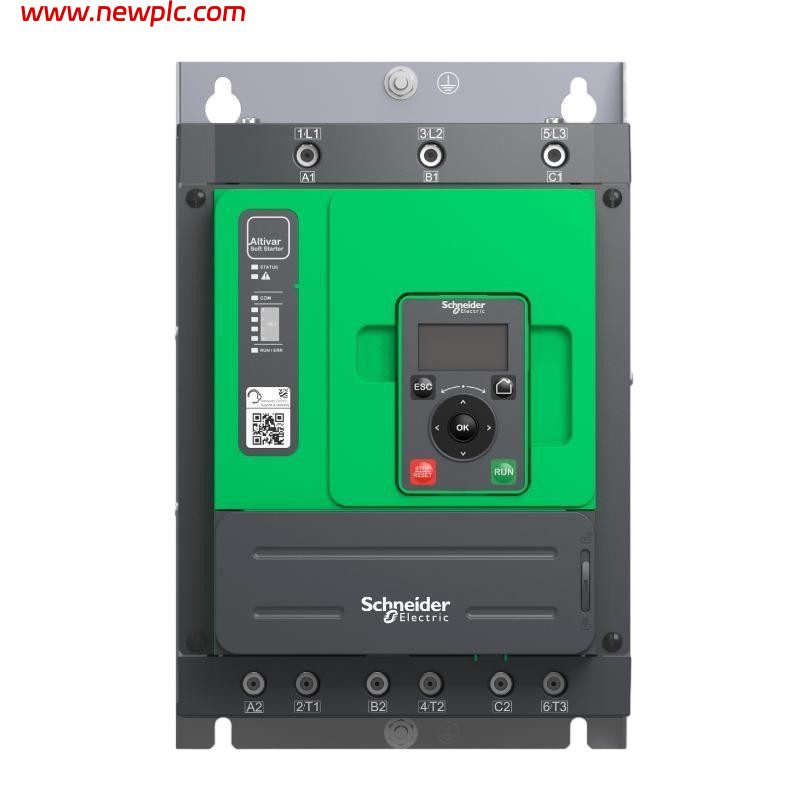

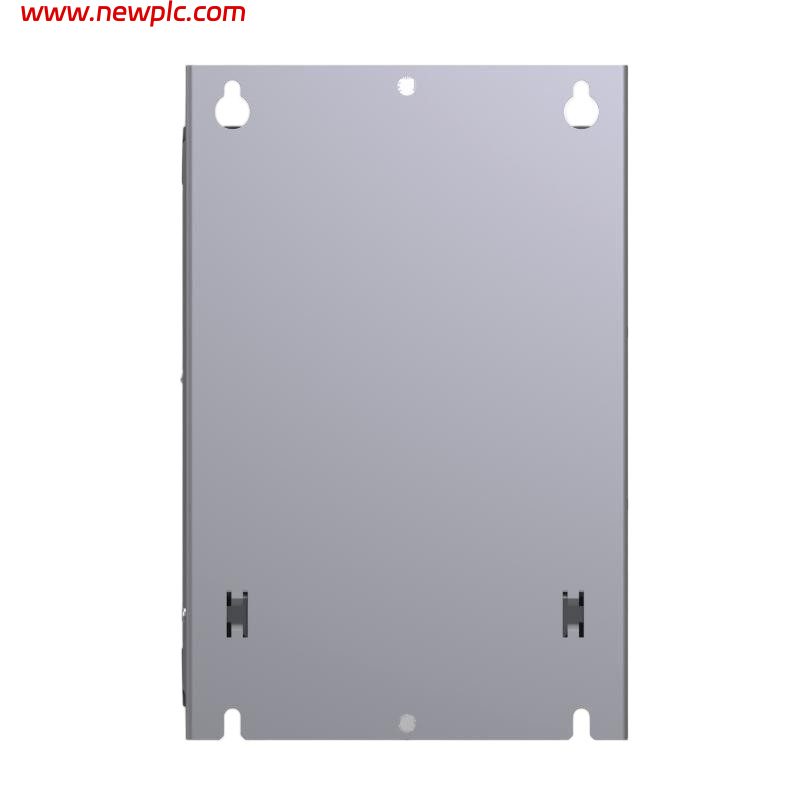

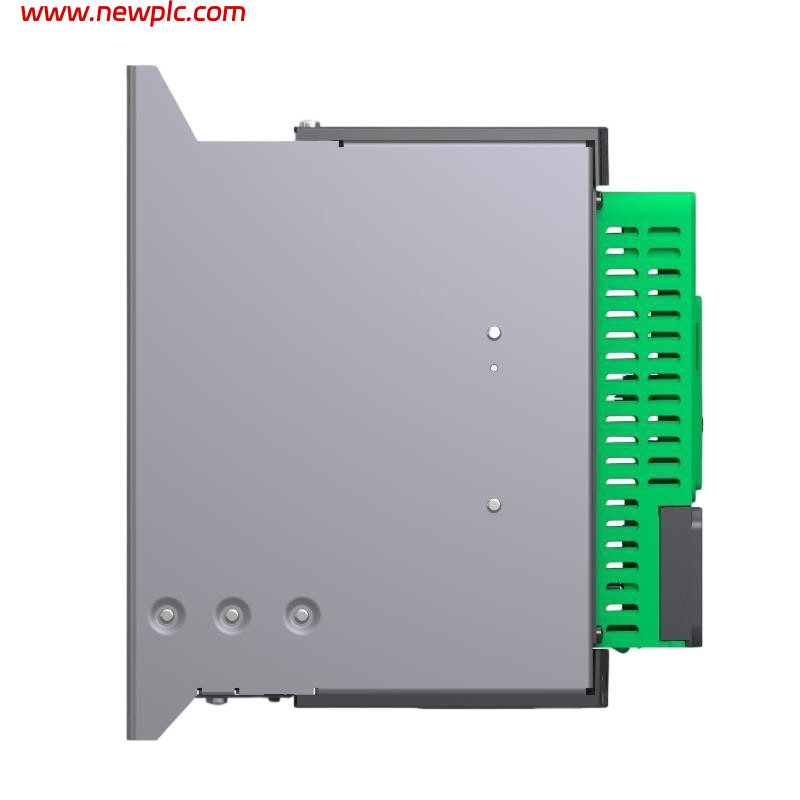

| Product Name | Schneider Electric ATS480C11Y |
| Product Type | Soft Starter |
| Product Series | Altivar Soft Starter ATS480 |
| Application | 3-phase asynchronous motor starting and stopping |
| Rated Operational Current | 110 A (normal duty @ 40°C) |
| Heavy Duty Current | 88 A |
| Supply Voltage (Power Circuit) | 208 – 690 V AC |
| Supply Frequency | 50 / 60 Hz |
| Control Supply Voltage | 110 – 230 V AC |
| Control Method | Torque Control (TCS), voltage ramp start/stop |
| Motor Power Range | ~30 kW to 90 kW (depending on voltage and duty) |
| Motor Compatibility | 3-phase asynchronous motors |
| Protection Rating | IP20 |
| Communication Interface | Modbus Serial (RS485, RJ45) |
| Communication Protocols | Modbus RTU (standard), optional fieldbus modules |
| Analog Outputs | 1 × analog output (0–20 mA or 0–10 V) |
| Control Functions | Soft start/stop, dynamic braking, DC injection stop |
| Built-in Functions | Motor protection, overload protection, bypass control, diagnostics |
| Mounting Type | Panel / chassis mount |
| Operating Temperature | -15°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 0–95% non-condensing |
| Altitude Derating | >1000 m requires current derating |
| Dimensions (H × W × D) | 290 × 190 × 247 mm |
| Weight | ~8.3 kg |
| Certifications | CE, UL, cULus, UKCA, CCC, RCM, EAC, Marine approvals |
FAQ
FAQ
Q1: What is the ATS480C11Y used for?
It is a soft starter designed to control the acceleration and deceleration of three-phase AC induction motors, reducing mechanical stress and electrical inrush current.
Q2: What motor size can it support?
It supports motors roughly from 30 kW up to 90 kW depending on supply voltage and load conditions.
Q3: What is the main difference between a soft starter and a VFD?
A soft starter like ATS480C11Y only controls motor starting and stopping, while a VFD controls speed continuously during operation.
Q4: Does it support communication protocols?
Yes, it supports Modbus RTU via RS485, and can be expanded with additional communication modules.
Q5: What protection features are included?
It includes motor overload protection, phase monitoring, thermal protection, and fault diagnostics.
Q6: What are the dimensions and weight?
The unit measures 290 × 190 × 247 mm and weighs approximately 8.3 kg.
Q7: Can it be used in harsh environments?
It is rated IP20, so it must be installed inside a protective electrical cabinet.
Q8: What is the control supply requirement?
It requires a 110–230 V AC control supply for operation and logic control.
