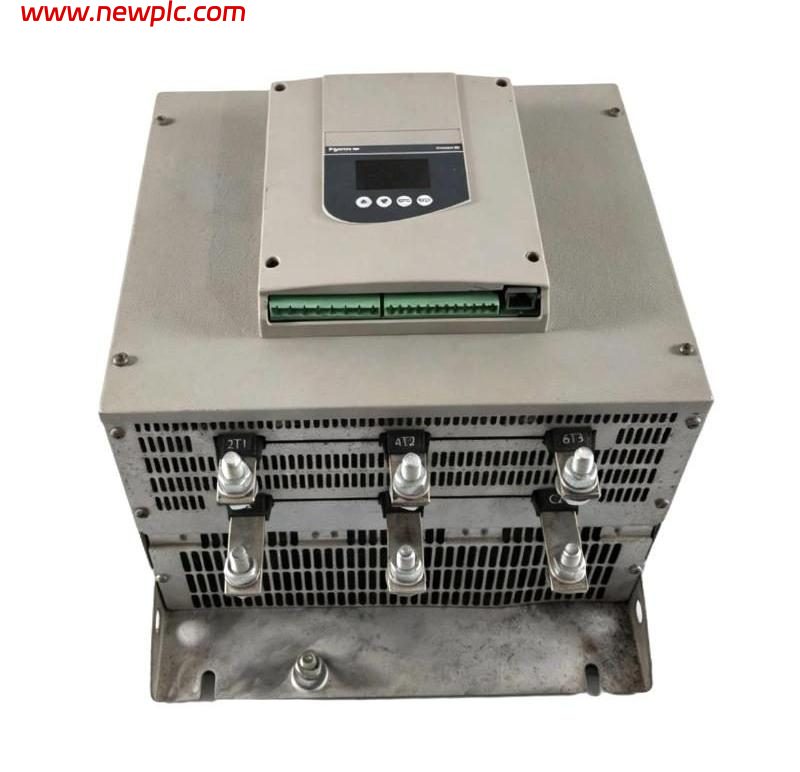

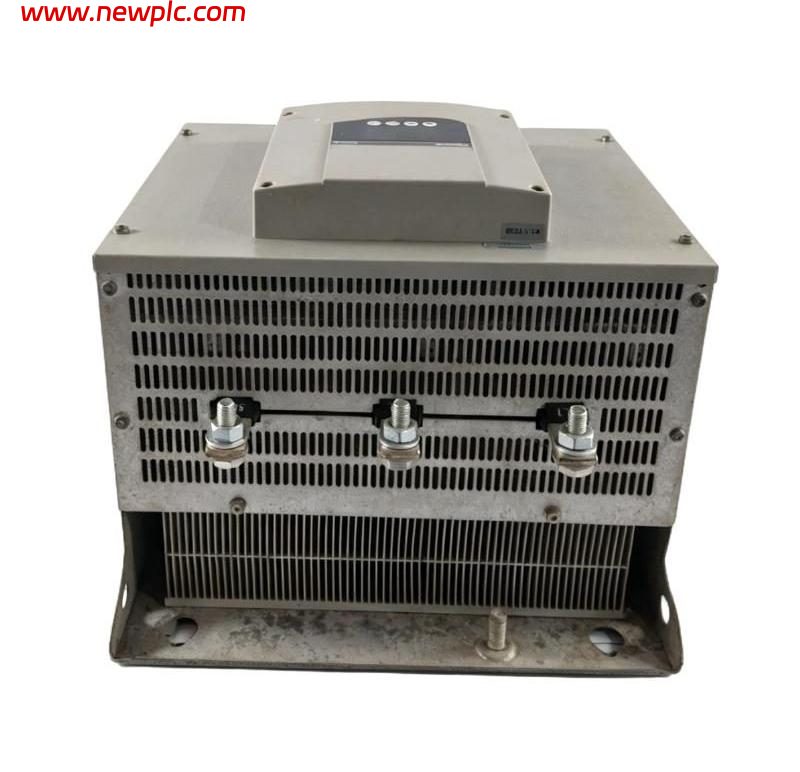

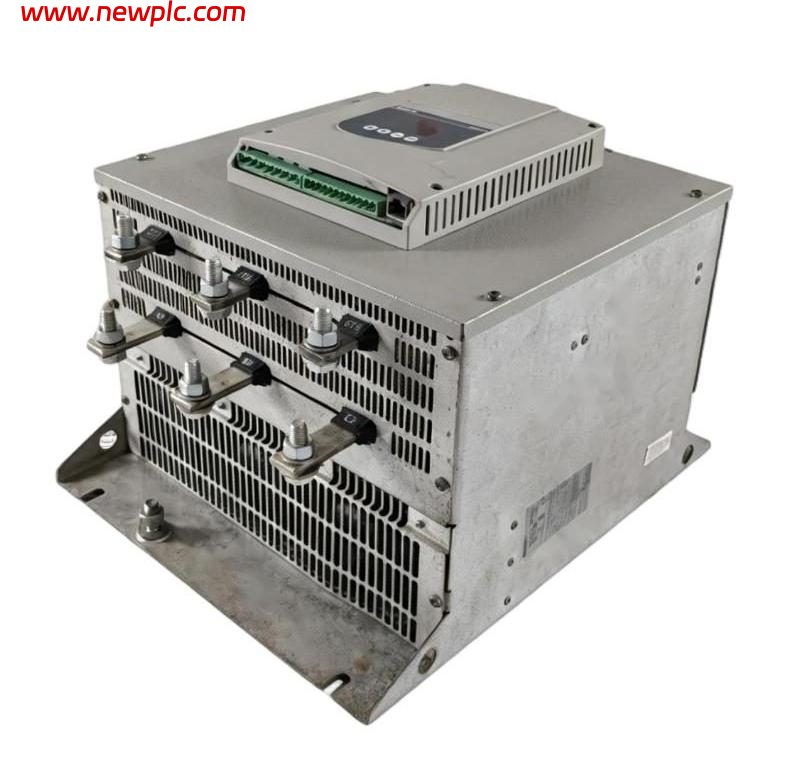

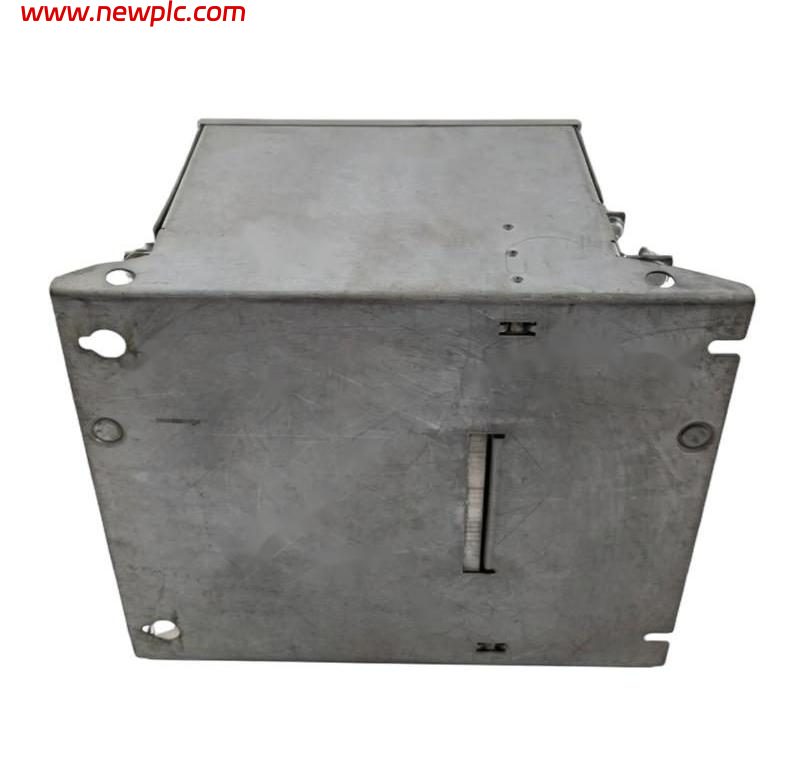

Schneider ATS48C32Q Soft Starter for Asynchronous Motor

FAQ

Q1: What is the Schneider Electric ATS48C32Q?
A: It is an Altistart 48 soft starter designed for three-phase asynchronous motors, particularly heavy-duty industrial and pumping applications.

Q2: What is the rated current?
A: The factory-rated current is 285 A. Depending on the connection method and duty, the applicable current rating can differ.

Q3: What supply voltage does it support?
A: It supports 230–415 VAC at 50–60 Hz.

Q4: What motor power can it handle?
A: Depending on voltage, motor connection and application duty, the supported range extends from 75 kW to 250 kW. At 400 V, it supports up to 220 kW in severe applications and 250 kW in standard applications with delta connection.

Q5: Does the ATS48C32Q support Modbus communication?
A: Yes. It provides Modbus communication through an RS-485 multidrop interface using an RJ45 connector.

Q6: What starting method does it use?
A: It uses torque-controlled starting with the current limited to approximately 5 times the rated current.

Q7: What are the dimensions and weight?
A: The dimensions are approximately 380 × 320 × 265 mm, with a net weight of approximately 18.2 kg.

Q8: Is the ATS48C32Q discontinued?
A: Yes. Schneider Electric lists the ATS48C32Q as discontinued, with end of service scheduled for December 31, 2030. The recommended replacement is the ATS480C32Y, rated at 320 A for 208–690 VAC.
