Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |

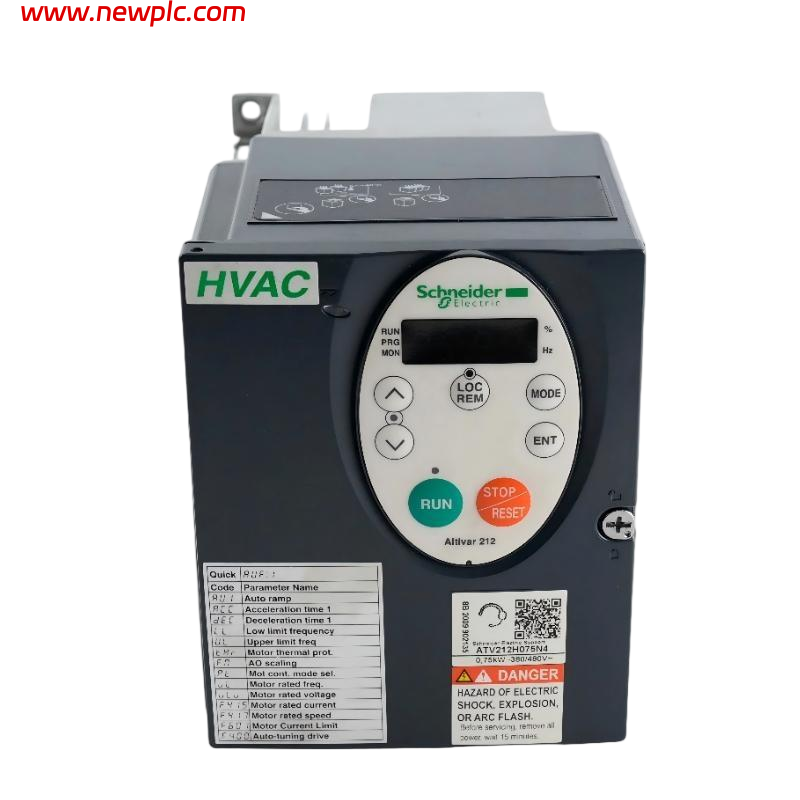

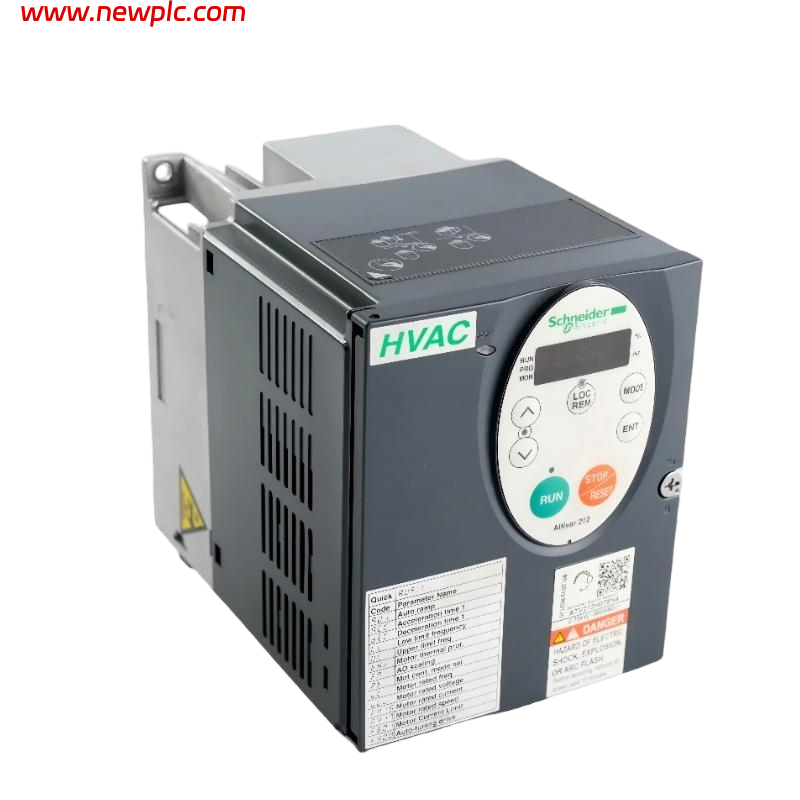

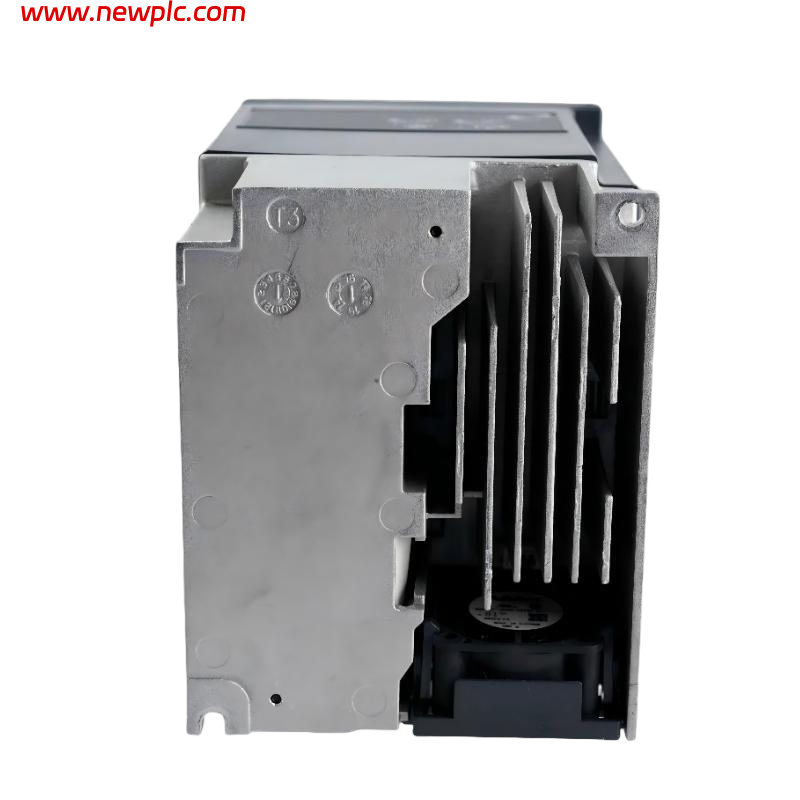

| Model / Part Number | ATV212H075N4 |
| Product Type | Variable Frequency Drive (VFD) |
| Product Series | Altivar 212 |
| Nominal Motor Power | 0.75 kW (1 hp) |
| Supply Voltage | 323–528 VAC (commonly 380–480 VAC), 3‑phase |
| Rated Output Current | ~2.2 A at 380–480 VAC |
| Transient Current Capability | ~2.4 A for 60 s |
| Output Frequency Range | ~0.5–200 Hz |
| Speed Range | ~1 : 10 |
| Control Modes | V/f control (voltage/frequency ratio) and sensorless flux vector control |
| Built‑In EMC Filter | Class C2 / C3 integrated |
| Communication | Modbus, METASYS N2, APOGEE FLN, BACnet (standard) |
| Protection Rating | IP21 / Open (UL Type 1) enclosure |
| Approvals | CE, UL, CSA, C‑Tick, NOM |
| Ambient Operating Temp. | ~‑10 °C to +40 °C (typical regulatory range for Altivar 212) |
| Power Dissipation | ~55 W |
| Mounting | Vertical panel or DIN rail (optional kit) |
| Dimensions (W × H × D) | 107 × 143 × 150 mm |
| Net Weight | 2 kg |
| Typical Uses | Variable speed control of 3‑phase asynchronous motors for pumps, fans, HVAC and general industrial applications |
FAQ
FAQ
Q1: What is this variable frequency drive used for?
It is used to control the speed and torque of a 3‑phase asynchronous motor by varying the supplied frequency and voltage.
Q2: What motor size is this drive rated for?
It is rated for motors up to 0.75 kW (1 hp) on 380–480 VAC three‑phase supplies.
Q3: What voltage range can this drive accept?
It accepts a 323–528 VAC 3‑phase supply, commonly used with 380 VAC or 480 VAC mains.
Q4: What protection rating does this unit have?
It has an IP21 degree of protection, suitable for indoor industrial use with limited water/dust exposure.
Q5: What communications protocols are built in?
Standard communications include Modbus, METASYS N2, APOGEE FLN and BACnet for integration into building and industrial control systems.
Q6: What are the physical dimensions of the drive?
The drive measures approximately 107 mm wide × 143 mm high × 150 mm deep.
Q7: How much does the drive weigh?
The net weight of the unit is about 2 kg.
Q8: What applications is this VFD commonly used in?
It is commonly used for controlling pumps, fans, HVAC equipment, and other machinery requiring variable speed motor control.
