Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |

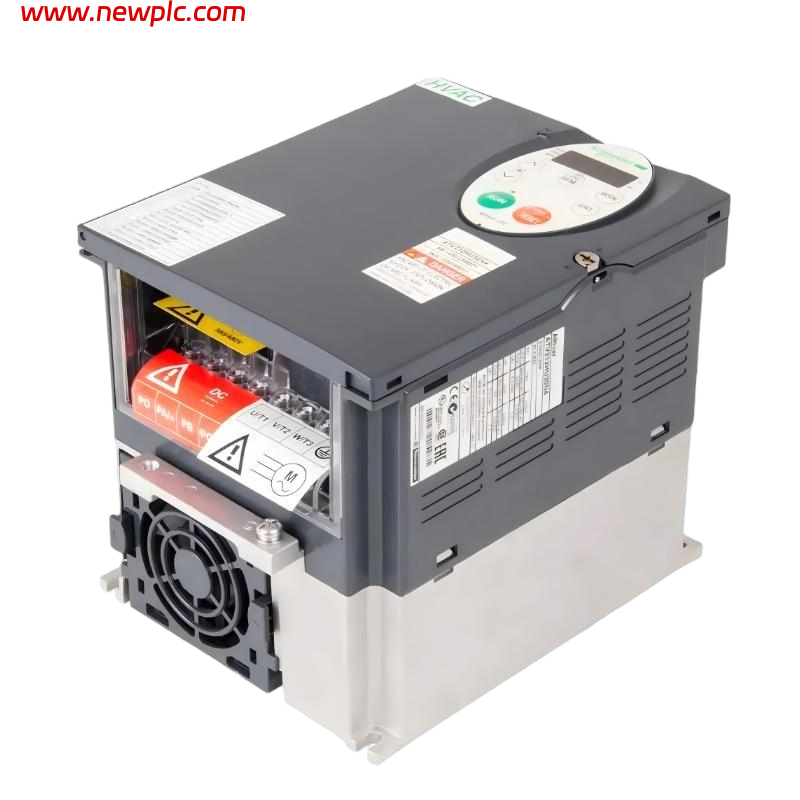

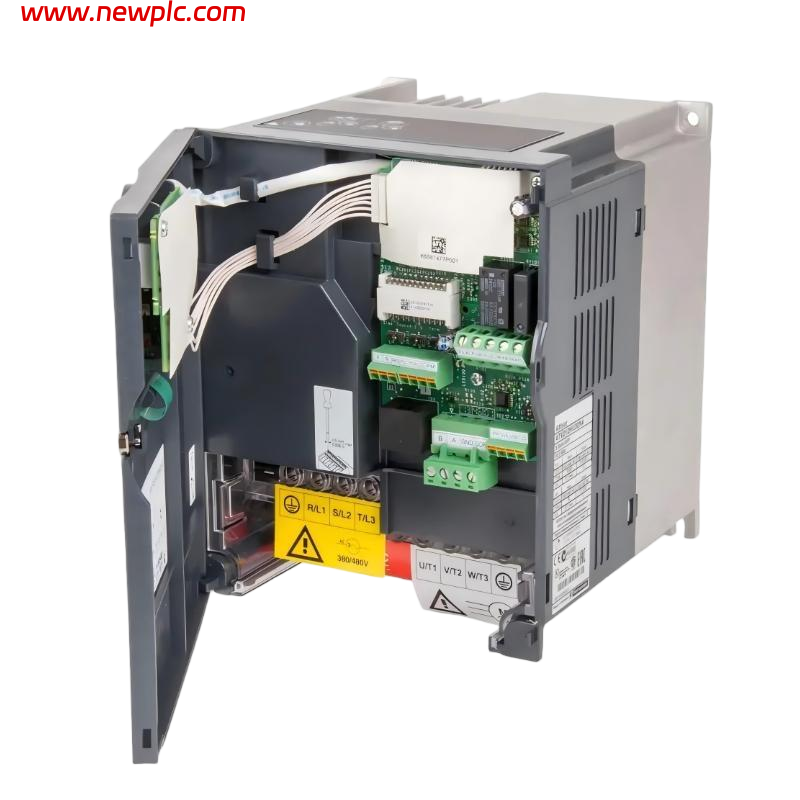

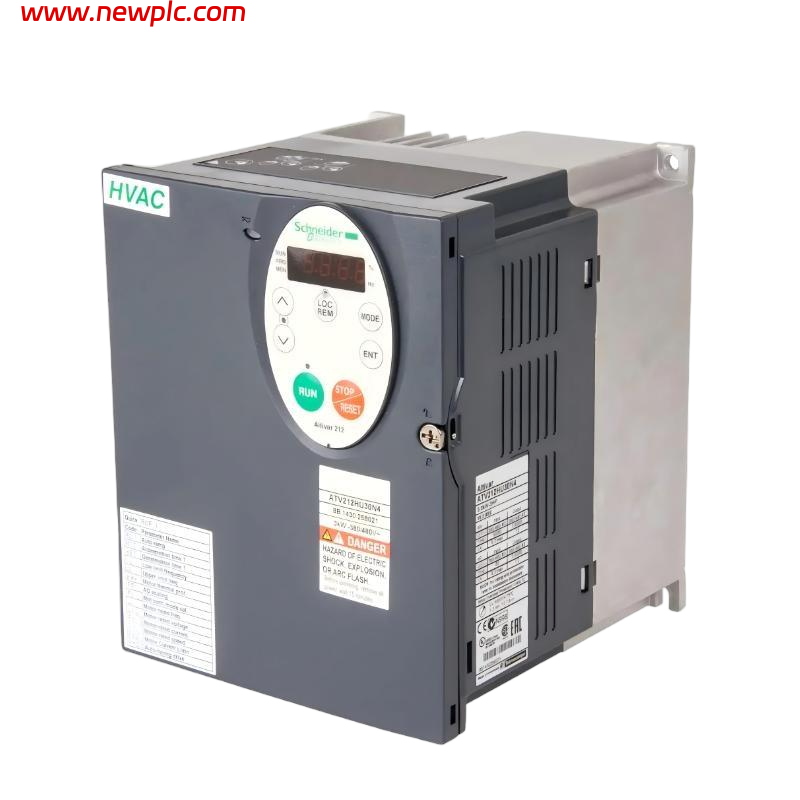

| Model / Part Number | ATV212HU30N4 |
| Product Series | Altivar 212 Variable Frequency Drive (VFD) |
| Product Type | 3-phase AC motor speed controller |
| Nominal Motor Power | 3 kW (≈ 4 hp) |
| Supply Voltage | 380–480 VAC, three-phase (supports 323–528 VAC range) |
| Rated Output Current | ≈ 7.2 A |
| Output Frequency Range | 0.5 – 200 Hz |
| Built-in EMC Filter | Class C2 |
| Control Methods | V/f (voltage/frequency) and sensorless flux vector |
| Communication Protocols | Modbus, BACnet, METASYS N2, APOGEE FLN as standard |
| Protection Rating | IP21 (indoor industrial) |
| Approvals / Standards | CE, UL, CSA, C-Tick, NOM, IEC/EN 61800-5-1 & -3 compliance |
| Mounting | Vertical panel mounting (± 10°) |
| Dimensions (W × H × D) | 142 × 184 × 150 mm (~5.59″ × 7.24″ × 5.91″) |
| Net Weight | ≈ 3.35 kg |
| Operating Temperature | −10 °C to +40 °C (derating above) |
| Typical Use | Speed and torque control of three-phase motors for HVAC, pumps, fans, and miscellaneous industrial systems |
FAQ
FAQ
Q1: What does the ATV212HU30N4 VFD do?
It controls the speed and torque of three-phase AC motors by varying the output frequency and voltage for improved performance and energy efficiency.
Q2: What motor size is this drive rated for?
This drive is designed for motors up to 3 kW (approximately 4 hp).
Q3: What supply voltage range does it accept?
It operates on a 380–480 VAC three-phase input and can accommodate wider industrial range voltages from 323 VAC to 528 VAC.
Q4: What is the output frequency range of this VFD?
The drive can vary the output frequency from about 0.5 Hz up to 200 Hz.
Q5: What communications protocols are supported?
It has integrated support for common automation protocols including Modbus, BACnet, METASYS N2, and APOGEE FLN.
Q6: What protection rating does this unit have?
The drive features an IP21 protection rating, suitable for indoor industrial environments.
Q7: What are the physical dimensions of the ATV212HU30N4?
The product measures approximately 142 mm wide × 184 mm high × 150 mm deep.
Q8: How much does this drive weigh?
The net weight is about 3.35 kg.
