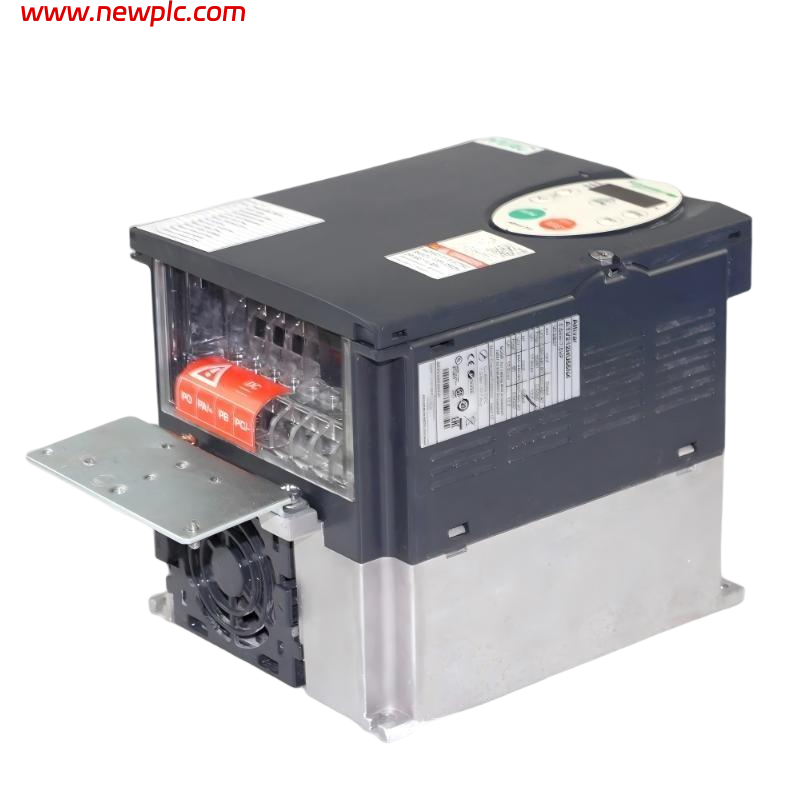

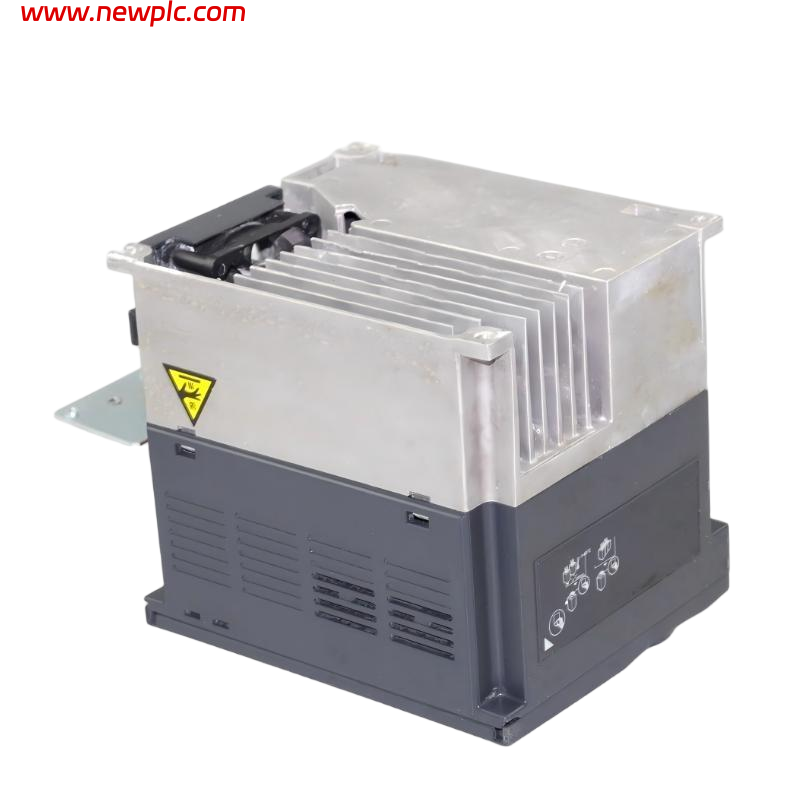

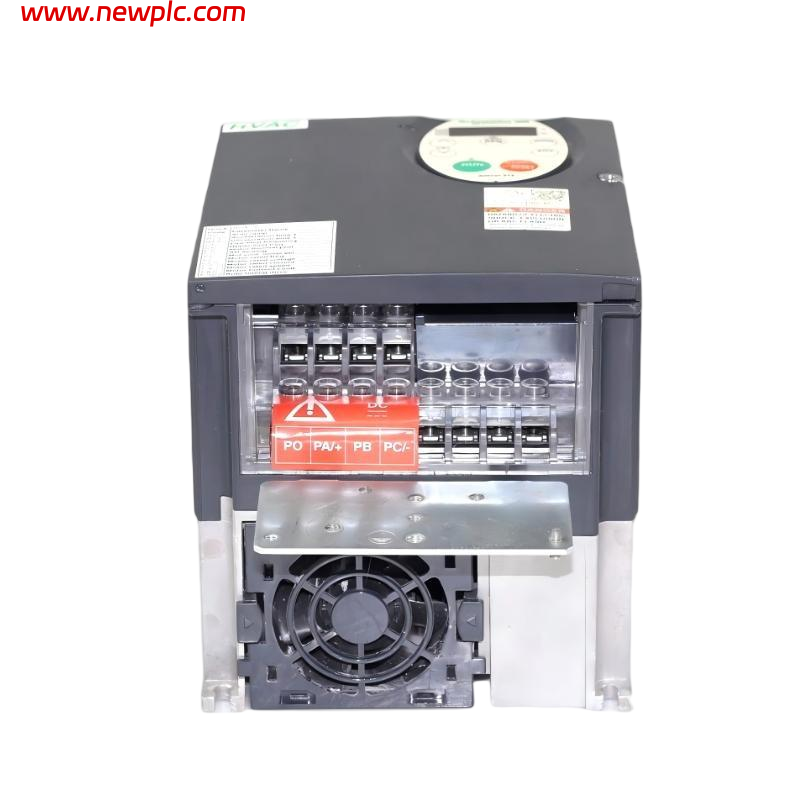

Schneider ATV212HU55N4 Altivar 212 Variable Frequency Drive (VFD)

FAQ

Q1: What kind of application is this VFD designed for?
This drive is engineered for controlling three-phase asynchronous motors in systems like HVAC, pumping and ventilation to improve motor performance and energy efficiency.

Q2: What motor power rating does the ATV212HU55N4 support?
It supports motors up to 5.5 kW (7.5 hp) on a three-phase 380–480 VAC supply.

Q3: What voltage range can this drive operate with?
It operates with a supply voltage between 380 VAC and 480 VAC and tolerates a broader industrial range from 323–528 VAC.

Q4: What protection rating does this frequency drive have?
The unit carries an IP21 rating, meaning it’s suitable for indoor industrial environments with limited dust and moisture.

Q5: What are the physical dimensions of this VFD?
The drive measures approximately 142 mm wide × 184 mm high × 150 mm deep.

Q6: How much does the ATV212HU55N4 weigh?
The net weight of the drive is about 3.35 kg.

Q7: What output frequency range does it support?
It outputs a wide frequency range from 0.5 Hz up to 200 Hz, allowing flexible motor speed control.

Q8: Does this VFD include communication options?
Yes — it supports standard protocols like Modbus, BACnet, METASYS N2 and APOGEE FLN for integration into automation systems.

ATV212HU55N4 Schneider
