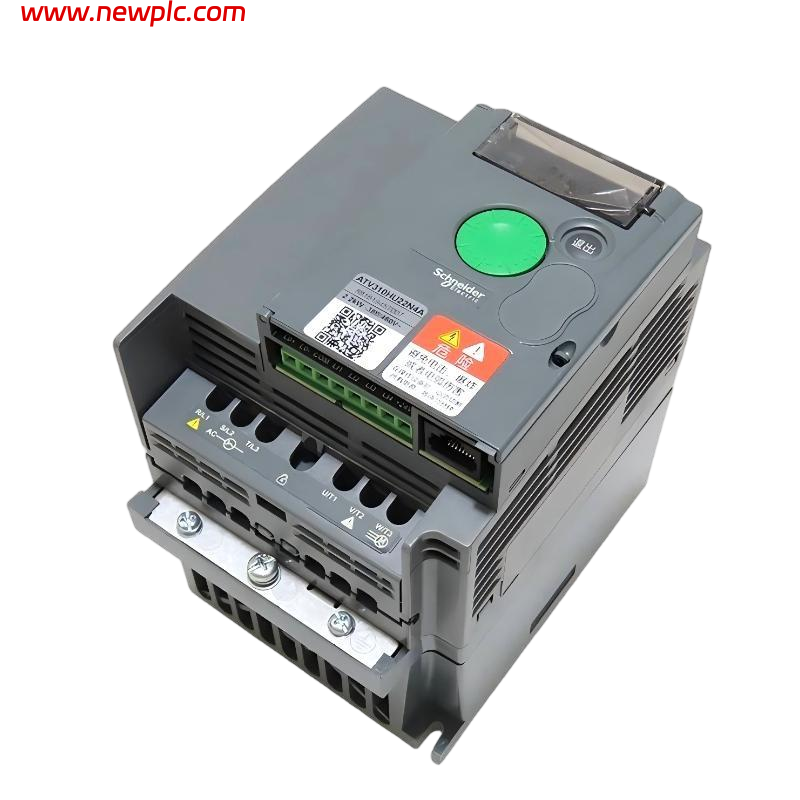

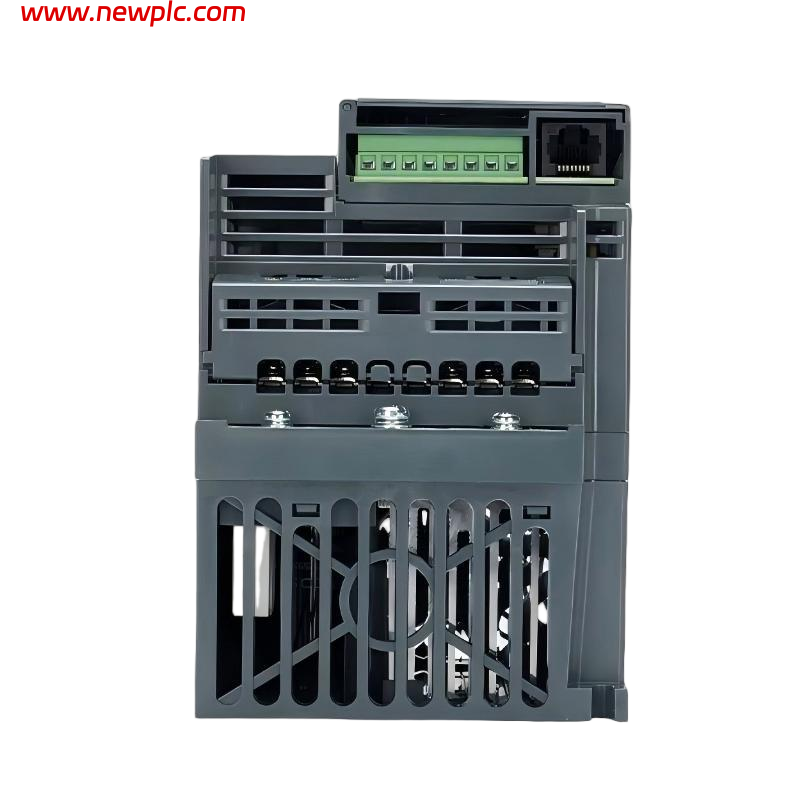

Schneider ATV310HU15N4A 3-phase AC motor speed controller (VFD)

FAQ

Q1: What is the function of the ATV310HU15N4A?
It is a compact variable frequency drive (VFD) that controls the speed and torque of three-phase AC motors by varying the output frequency and voltage for better performance and energy efficiency.

Q2: What motor power rating does this drive support?
This model is designed for motors up to 1.5 kW (2 hp) on a three-phase supply.

Q3: What supply voltage and frequency range does it accept?
It operates on a 380–460 VAC three-phase supply and supports 50/60 Hz industrial power.

Q4: Does the ATV310HU15N4A include an EMC filter?
No — this model does not include a built-in EMC filter, simplifying installation but possibly requiring external filtering in sensitive environments.

Q5: What communication interface does it have?
It includes Modbus communication via an RS-485 RJ45 port, allowing integration with PLCs or automation systems.

Q6: What are the physical dimensions of this drive?
The unit measures approximately 105 mm wide × 143 mm high × 151 mm deep.

Q7: How much does the ATV310HU15N4A weigh?
The net weight is about 1.1 kg.

Q8: What environments is this drive designed for?
It is designed for indoor industrial environments with an IP20 protection rating and robust electrical compatibility per IEC standards.
