Technical Specifications
| Parameter | Description |
|---|---|

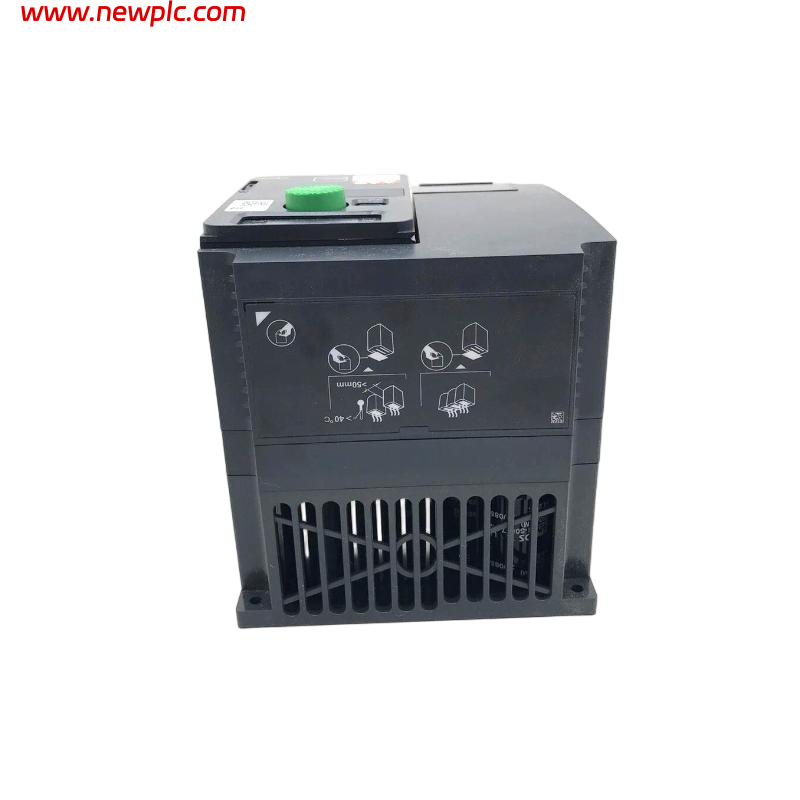

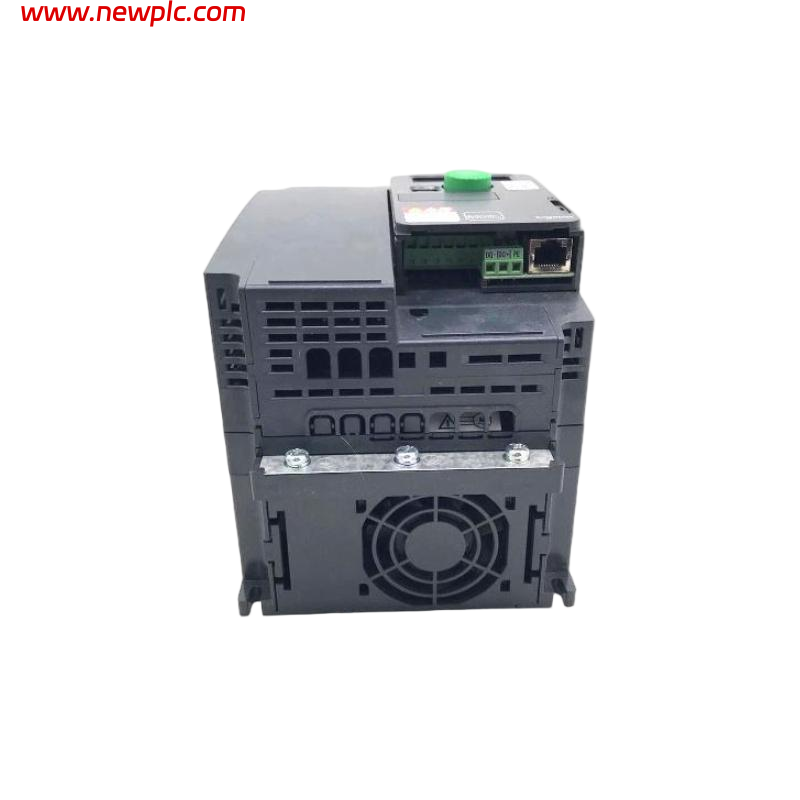

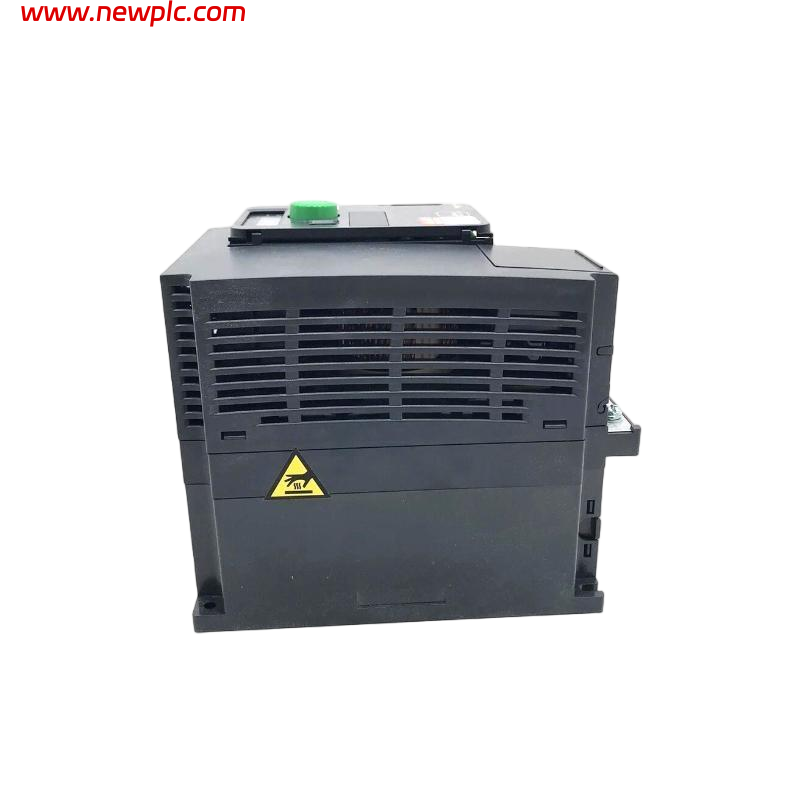

| Product | Schneider Electric ATV320D18N4C |
| Series | Altivar Machine ATV320 |
| Model Number | ATV320D18N4C |
| Drive Type | Variable Frequency Drive (VFD) |
| Motor Power | 18.5 kW (25 HP) |
| Supply Voltage | 3-phase, 380–500 V AC |
| Supply Frequency | 50 / 60 Hz |
| Output Current (Nominal) | 40 A |
| Output Frequency Range | Up to 599 Hz |
| Compatible Motor Types | Synchronous / Asynchronous |
| Control Methods | Flux vector control, V/f control |
| EMC Filter | Integrated |
| Communication Interfaces | Modbus RTU, CANopen (via RJ45) |
| Discrete Inputs | 6 programmable |
| Analog Inputs | 3 configurable |
| Digital Outputs | 3 outputs |
| Analog Output | 1 output |
| Protection Rating | IP20 |
| Protection Functions | Overcurrent, overvoltage, undervoltage, short-circuit |
| Operating Temperature | −10 °C to +50 °C (without derating) |
| Storage Temperature | −25 °C to +70 °C |
| Mounting | Wall / panel mount |
| Dimensions (H × W × D) | 390 × 180 × 229 mm |
| Weight | 9.5 kg |
FAQ
FAQ
Q1: What is the power rating of the ATV320D18N4C?
It is rated for 18.5 kW (25 HP) three-phase motors.
Q2: What supply voltage and frequency does this drive require?
This drive operates on 3-phase 380–500 V AC at 50/60 Hz.
Q3: What types of motors can be used with the ATV320D18N4C?
It supports both synchronous and asynchronous motors.
Q4: Does this model include an EMC filter?
Yes, an integrated EMC filter is included.
Q5: What communication interfaces are available?
The drive supports Modbus RTU and CANopen communication.
Q6: What protections are built into the drive?
It offers protection against overcurrent, overvoltage, undervoltage, and short-circuits.
Q7: What are the physical dimensions and weight of this drive?
Dimensions are 390 × 180 × 229 mm and the weight is 9.5 kg.
Q8: What industrial applications is this model suitable for?
It is suitable for complex machines including conveyors, pumps, hoisting systems, and automated production equipment where precise motor control is needed. (General product series use case based on ATV320 application context)
