Technical Specifications
| Parameter | Description |
|---|---|

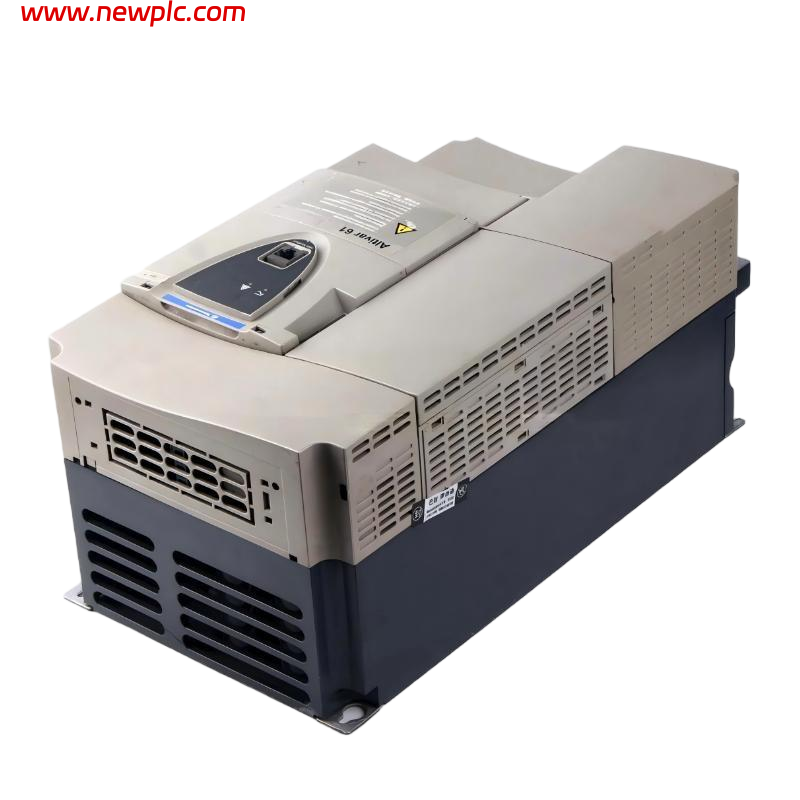

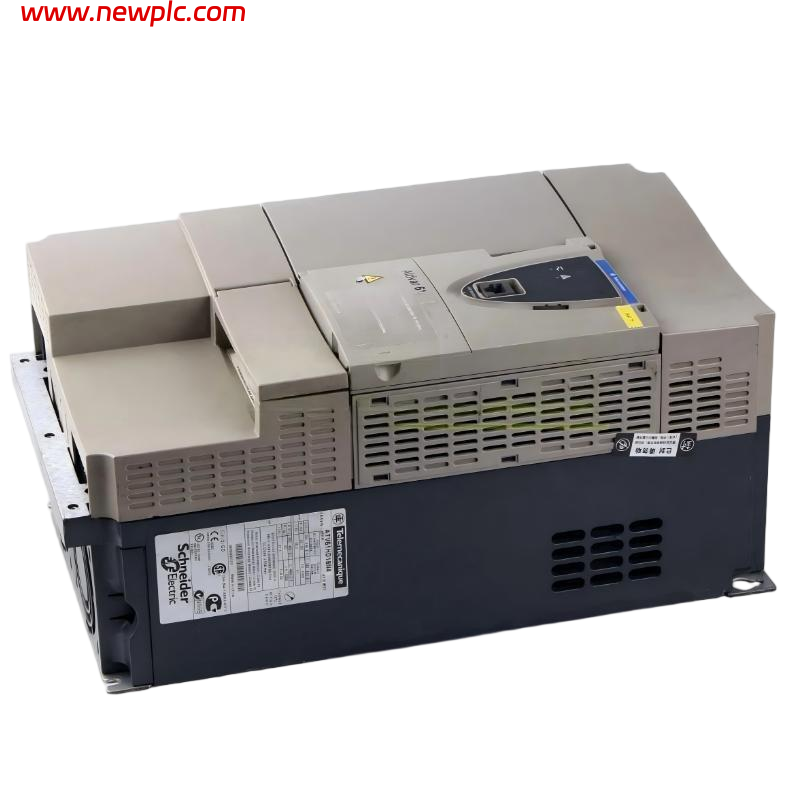

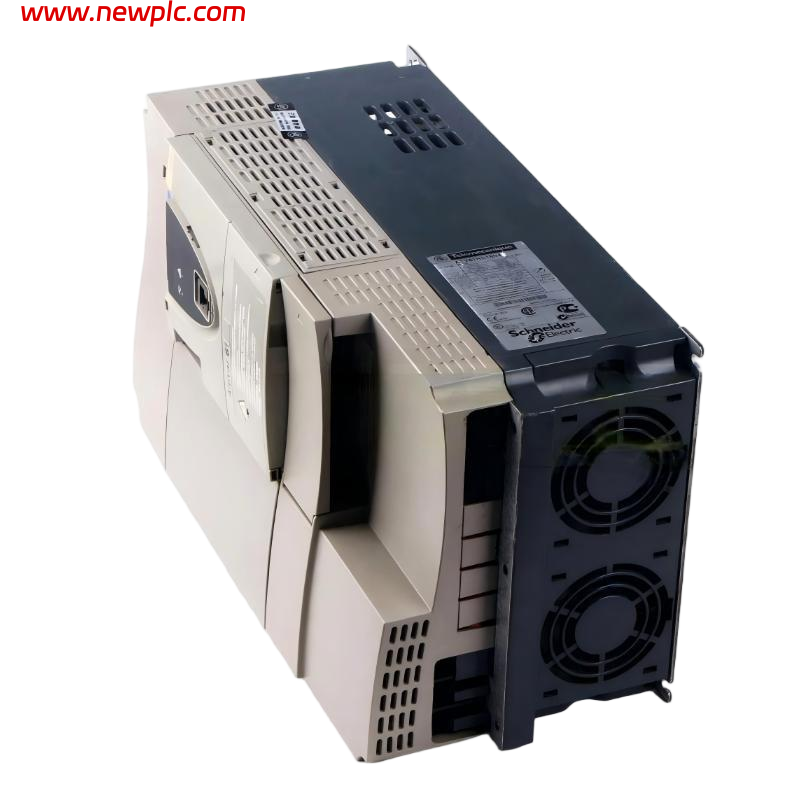

| Product | Schneider Electric ATV61HD18N4 |
| Series | Altivar 61 |
| Model Number | ATV61HD18N4 |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 18.5 kW (25 HP) three‑phase motor control |
| Supply Voltage | Three‑phase, 380 – 480 V AC (‑15 % / +10 %) |
| Supply Frequency | 50 / 60 Hz |
| Output Current | 45.5 A @ 380 V / 37.5 A @ 480 V |
| Output Frequency Range | 0.1 – 599 Hz (adjustable) |
| Control Methods | Voltage/frequency control (V/f), flux vector control without sensor |
| EMC Filter | Integrated Level 3 EMC filter |
| Communication Interfaces | Modbus RTU, CANopen (via RJ45) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protections |
| Protection Rating | IP20 enclosure (panel mount) |
| Mounting | Vertical panel / wall mount with heatsink |
| Switching Frequency | 1…16 kHz adjustable (nominal 12 kHz) |
| Braking | DC injection braking, transient overload capability |
| Applicable Motors | Asynchronous and synchronous three‑phase AC motors |
| Dimensions (H × W × D) | 400 × 230 × 213 mm |
| Weight | 22 kg |
| Operating Temperature | −10 °C to +50 °C (typical) |
| Storage Temperature | −25 °C to +70 °C (typical) |
FAQ
FAQ
Q1: What motor power is the ATV61HD18N4 designed for?
The ATV61HD18N4 is designed to control three‑phase motors with a rated power of 18.5 kW (25 HP).
Q2: What supply voltage and frequency does this drive require?
This drive operates on a three‑phase 380 – 480 V AC supply at 50 / 60 Hz.
Q3: What is the nominal output current of the ATV61HD18N4?
Nominal output current is about 45.5 A at 380 V and 37.5 A at 480 V.
Q4: What output frequency range does this model support?
The drive can output an adjustable frequency from approximately 0.1 Hz up to 599 Hz.
Q5: What control methods are supported?
It supports voltage/frequency (V/f) control and sensorless flux vector control for flexible motor speed and torque management.
Q6: Does the drive include communication interfaces?
Yes — it supports Modbus RTU and CANopen communication via RJ45 port.
Q7: What are the physical dimensions and weight of the drive?
The unit measures approximately 400 × 230 × 213 mm and weighs about 22 kg.
Q8: What is the protection rating and filter level of the ATV61HD18N4?
It has an IP20 protection rating with an integrated Level 3 EMC filter for industrial electromagnetic compatibility.
