Technical Specifications
| Parameter | Description |
|---|---|

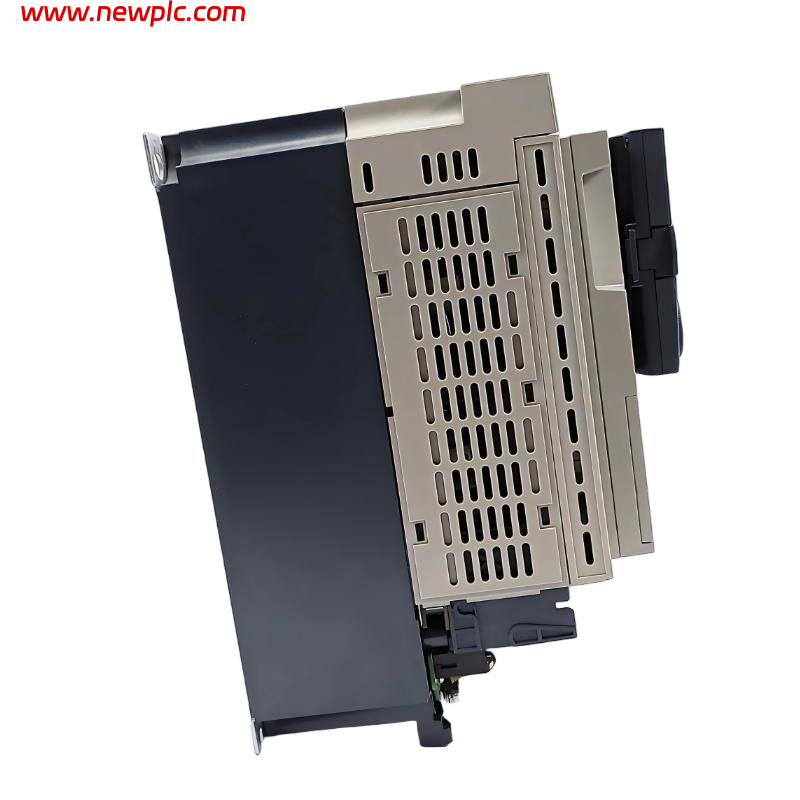

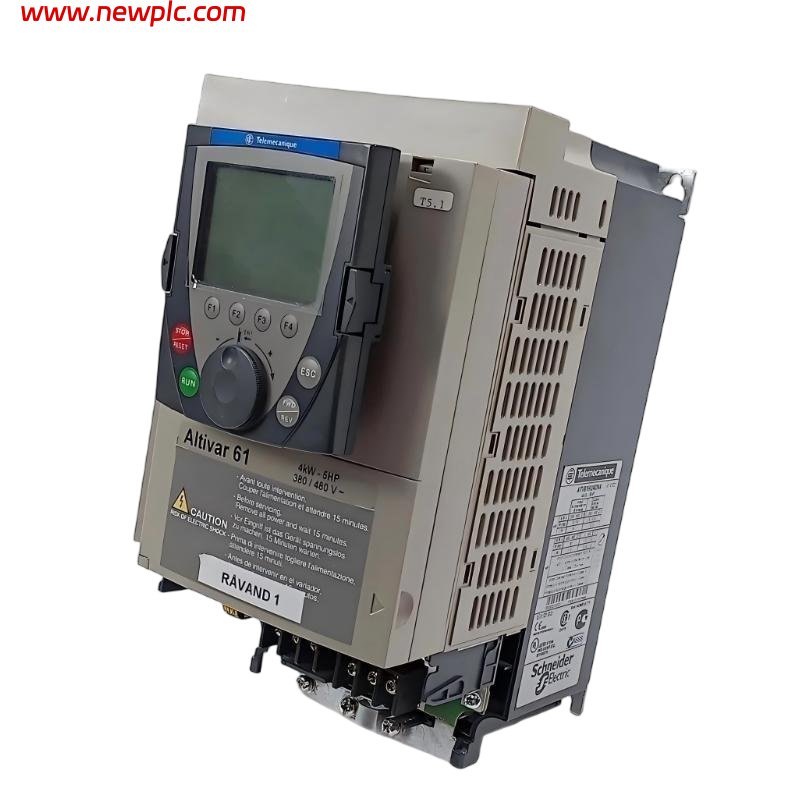

| Product | Schneider Electric ATV61HU40N4 – Altivar 61 Variable Frequency Drive (VFD) |
| Series | Altivar 61 VFD series |
| Model Number | ATV61HU40N4 |
| Drive Type | Variable Frequency Drive for three-phase AC motors |
| Rated Motor Power | 4 kW (5 HP) |
| Supply Voltage | Three-phase, 380 – 480 V AC |
| Supply Frequency | 50 / 60 Hz |
| Output Current | 10.5 A @ 380 V; 7.6 A @ 460 V |
| Output Frequency Range | 0.1 – 599 Hz (adjustable) |
| Control Methods | V/f control; sensorless flux vector control |
| Integrated EMC Filter | Integrated Level 3 EMC filter |
| Communication Interfaces | Modbus RTU; CANopen (optional expansion) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protections |
| Protection Rating | IP20 (indoor panel mount) |
| Switching Frequency | Adjustable 1 – 16 kHz (nominal ~12 kHz) |
| Braking | DC injection braking (with optional braking resistor) |
| Mounting | Vertical panel / wall mount with heat sink |
| Dimensions (W × H × D) | 155 × 260 × 187 mm |
| Weight | 4 kg |
| Operating Temperature | −10 °C to +50 °C typical |
| Storage Temperature | −25 °C to +70 °C typical |
FAQ
FAQ
Q1: What motor size is the ATV61HU40N4 designed for?
The ATV61HU40N4 is designed to control three-phase motors rated at 4 kW (5 HP).
Q2: What supply voltage and frequency range does this drive require?
This drive operates on a three-phase 380…480 V AC supply at 50 / 60 Hz.
Q3: What is the nominal output current of the ATV61HU40N4?
The nominal output current is about 10.5 A at 380 V and 7.6 A at 460 V.
Q4: What output frequency range does this model support?
It supports an adjustable output frequency range from approximately 0.1 Hz up to 599 Hz.
Q5: What control methods are available on this drive?
It supports voltage/frequency (V/f) control and sensorless flux vector control.
Q6: Does the ATV61HU40N4 include EMC filtering?
Yes — it includes an integrated Level 3 EMC filter to improve electromagnetic compatibility.
Q7: What are the physical dimensions and weight of this drive?
The unit measures approximately 155 × 260 × 187 mm and weighs around 4 kg.
Q8: What protection and communication features does this drive have?
It has built-in protections (overcurrent, overvoltage, undervoltage, thermal) and supports communication interfaces such as Modbus RTU and CANopen for industrial integration.
