Technical Specifications
| Item | Specification |
|---|---|

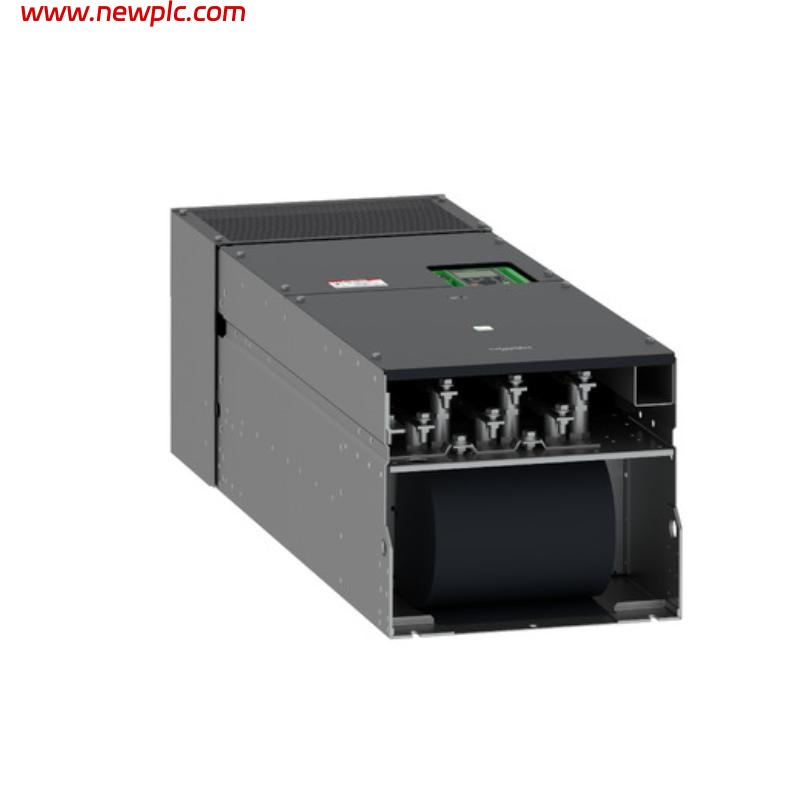

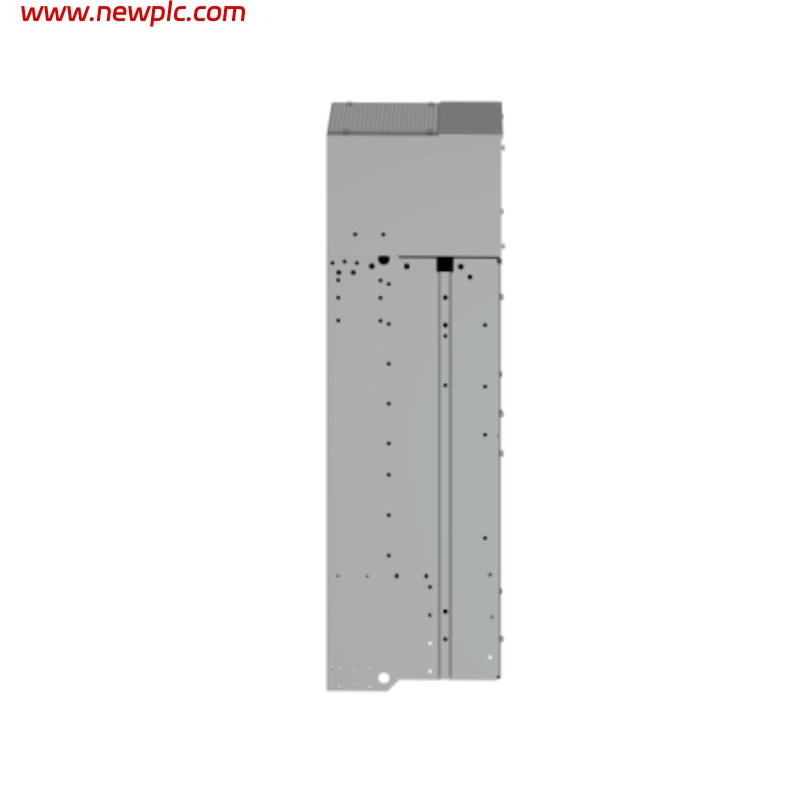

| Model | Schneider ATV630C22N4 |
| Product Type | Variable Speed Drive |
| Series | Altivar Process ATV630 |
| Power Rating | 220 kW (300 HP) |
| Rated Voltage | 380–480 V AC, 3-phase |
| Rated Current | 414 A |
| Frequency Range | 0.5–500 Hz |
| Control Type | Sensorless flux vector control, V/F control |
| Overload Capacity | 120% of nominal current for 60 seconds |
| Communication Protocols | Modbus, Ethernet/IP, CANopen, Modbus TCP |
| Display | Integrated graphic display with navigation dial |
| Input Signal | 6 digital inputs, 3 analog inputs |
| Output Signal | 2 relay outputs, 2 analog outputs |
| Cooling Method | Forced air cooling with integrated fan |
| Protection Degree | IP21 (standard), IP54 (optional) |
| Ambient Operating Temperature | -10°C to +50°C (derating above 40°C) |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5%–95%, non-condensing |
| Altitude | Up to 1000 m without derating (up to 3000 m with derating) |
| Dimensions | 440 x 1195 x 380 mm |
| Weight | 172 kg |
| Certifications | CE, UL, CSA, RoHS, IEC 61800-5-1 |
FAQ
FAQ
Q1: What is the main purpose of the Schneider ATV630C22N4 Variable Speed Drive?
A1: It is designed to control the speed and torque of three-phase motors to enhance energy efficiency and process performance.
Q2: What is the power capacity of this model?
A2: The ATV630C22N4 delivers up to 220 kW (300 HP) of power.
Q3: Which motor control modes does it support?
A3: It supports both sensorless flux vector control and V/F (voltage/frequency) control modes.
Q4: What communication options are available?
A4: It includes Modbus, Ethernet/IP, CANopen, and Modbus TCP protocols for flexible connectivity.
Q5: What is the overload capability?
A5: The drive can handle 120% of its rated current for up to 60 seconds.
Q6: What are its protection and cooling features?
A6: It has IP21 standard protection (IP54 optional) and uses forced-air cooling with a built-in fan.
Q7: What are the physical dimensions and weight of the drive?
A7: The unit measures 440 x 1195 x 380 mm and weighs is 172 kg.
Q8: What industries commonly use this model?
A8: It is widely used in water treatment, HVAC, oil and gas, and manufacturing applications requiring reliable motor control.
