Technical Specifications
| Parameter | Specification |
|---|---|

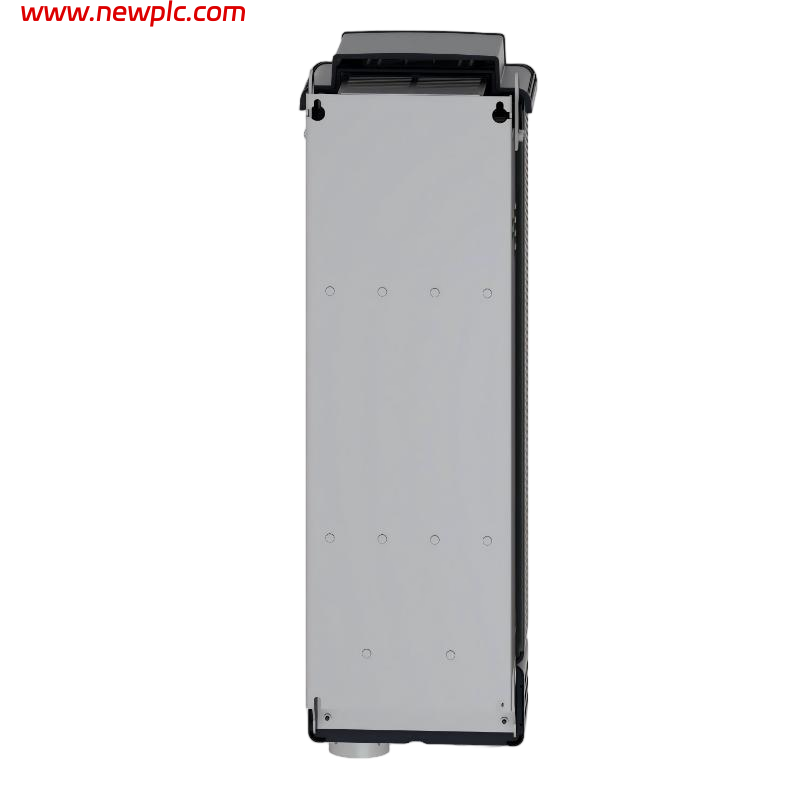

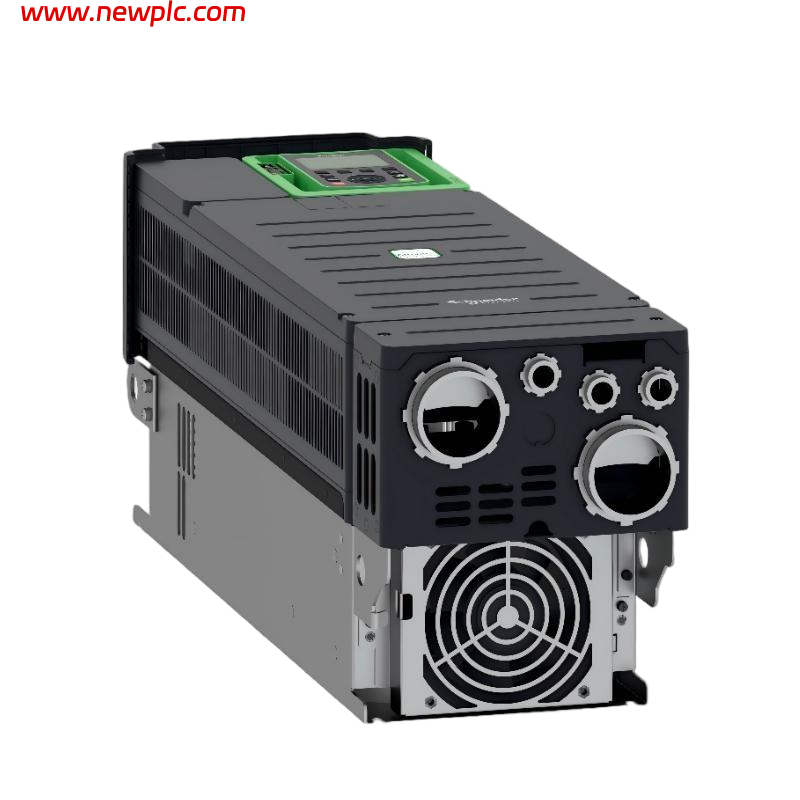

| Product | Schneider Electric ATV630D55N4 |
| Product Series | Altivar Process ATV600 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Power | 55 kW (Normal Duty) / 45 kW (Heavy Duty) |
| Rated Horsepower | 75 HP (Normal Duty) / 60 HP (Heavy Duty) |
| Supply Voltage | 3-phase 380–480 V AC |
| Supply Frequency | 50–60 Hz |
| Output Frequency Range | 0.0001–500 Hz |
| Rated Output Current | ~106 A (Normal Duty) / ~88 A (Heavy Duty) |
| Line Current (Typical) | ~97.2 A at 380 V / ~84.2 A at 480 V (Normal Duty); ~81.4 A at 380 V / ~71.8 A at 480 V (Heavy Duty) |
| Switching Frequency | Nominal 2.5 kHz (adjustable up to ~8 kHz) |
| Motor Control Methods | Constant torque, variable torque, optimized torque (supports synchronous & asynchronous motors) |
| Protection Rating | IP21 / UL Type 1 |
| Cooling Method | Forced convection |
| EMC Filter | Integrated, EN/IEC 61800‑3 Category C3 |
| Safety Functions | Safe Torque Off (STO), overload, thermal, short‑circuit protections |
| Digital Inputs | 8 |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Relay Outputs | 3 |
| Communications | Ethernet, Modbus TCP/RTU; optional fieldbus modules |
| Dimensions (W × H × D) | ~290 × 922 × 323 mm |
| Weight | ~56.5 kg |
FAQ
FAQ
Q1: What is the rated power of the ATV630D55N4?
The drive is rated for 55 kW under normal duty and 45 kW under heavy duty motor control applications.
Q2: What input voltage range does this model support?
It operates on a three‑phase AC supply between 380 V and 480 V at 50–60 Hz.
Q3: What types of motors can be controlled with this VFD?
This model supports both asynchronous and synchronous motor control with multiple torque control profiles.
Q4: What is the typical output current rating?
The continuous output current is approximately 106 A for normal duty and 88 A for heavy duty.
Q5: Does the drive include safety and protection functions?
Yes, it includes built‑in safety features such as Safe Torque Off (STO), overload, thermal, and short‑circuit protections.
Q6: What communication interfaces are available?
Standard communication options include Ethernet and Modbus TCP/RTU, with optional fieldbus expansion modules.
Q7: What are the physical size and weight of the drive?
The unit measures approximately 290 × 922 × 323 mm and weighs around 56.5 kg.
Q8: What is the enclosure protection rating and cooling method?
The drive has an IP21 / UL Type 1 enclosure rating and uses forced convection cooling.
