Technical Specifications
| Parameter | Specification |
|---|---|

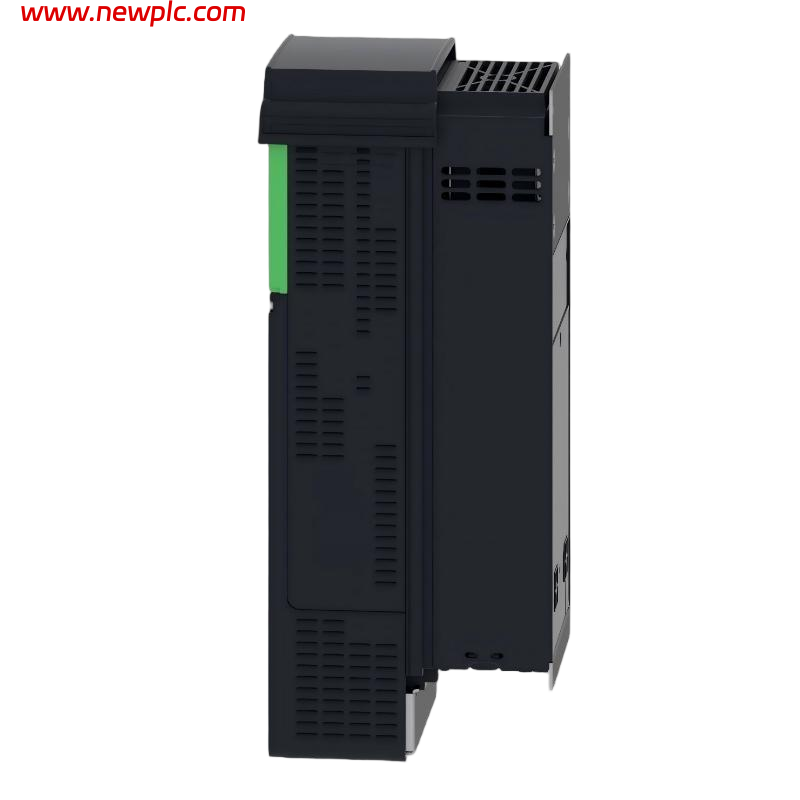

| Product Model | Schneider Electric ATV630U22N4 |
| Product Series | Altivar Process ATV600 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Power | 2.2 kW (Normal Duty) / 1.5 kW (Heavy Duty) |
| Rated Horsepower | 3 HP (Normal Duty) / 2 HP (Heavy Duty) |
| Supply Voltage | 3‑phase 380–480 V AC (-15% to +10%) |
| Supply Frequency | 50–60 Hz |
| Output Frequency Range | 0.1–500 Hz |
| Rated Output Current | ~5.6 A (Normal Duty) / ~4.0 A (Heavy Duty) |
| Line Current | ~4.3 A @380 V, ~3.8 A @480 V (Normal Duty); ~3.1 A @380 V, ~2.9 A @480 V (Heavy Duty) |
| Motor Control Methods | Constant torque, variable torque, optimized torque |
| Protection Rating | IP21 / UL Type 1 |
| Cooling Method | Forced Convection |
| Built‑in EMC Filter | Integrated (EN/IEC 61800‑3 Category C2/C3) |
| Communication Interfaces | Ethernet, Modbus Serial, Modbus TCP |
| Analog Inputs | 3 configurable inputs |
| Digital Inputs | 8 configurable inputs |
| Analog Outputs | 2 configurable outputs |
| Relay Outputs | 3 relay outputs |
| Preset Speeds | 16 preset speeds (via discrete input logic) |
| Dimensions (W × H × D) | 144 × 350 × 203 mm |
| Weight | Approx. 4.5 kg |
FAQ
FAQ
Q1: What power ratings does the ATV630U22N4 support?
It supports 2.2 kW (3 HP) under normal duty and 1.5 kW (2 HP) under heavy duty.
Q2: What supply voltage range is required for this drive?
The drive operates on a three‑phase AC supply from 380 V to 480 V.
Q3: What output frequency range does this model provide?
The output frequency range is from 0.1 Hz up to 500 Hz.
Q4: What types of motors can this VFD control?
It is suitable for both asynchronous and synchronous motors with multiple torque control profiles.
Q5: What communication interfaces are available on this drive?
Standard interfaces include Ethernet, Modbus Serial, and Modbus TCP.
Q6: How many inputs and outputs are available?
There are 3 analog inputs, 8 digital inputs, 2 analog outputs, and 3 relay outputs.
Q7: What is the protection rating of the enclosure?
The enclosure has an IP21 / UL Type 1 rating, suitable for industrial cabinet mounting.
Q8: What are the physical dimensions and weight of the ATV630U22N4?
The drive measures about 144 mm × 350 mm × 203 mm and weighs approximately 4.5 kg.
