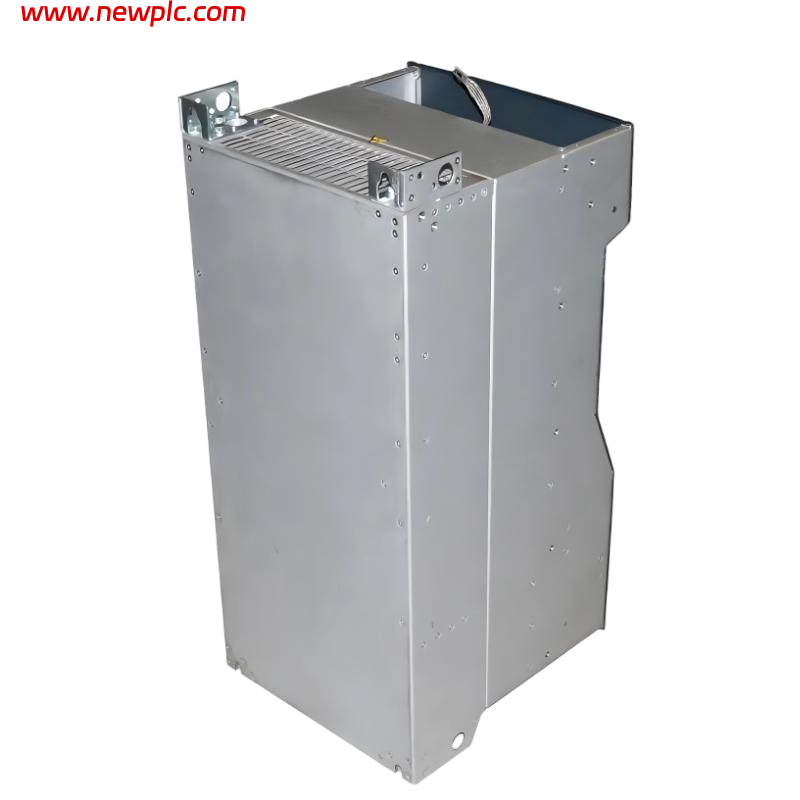

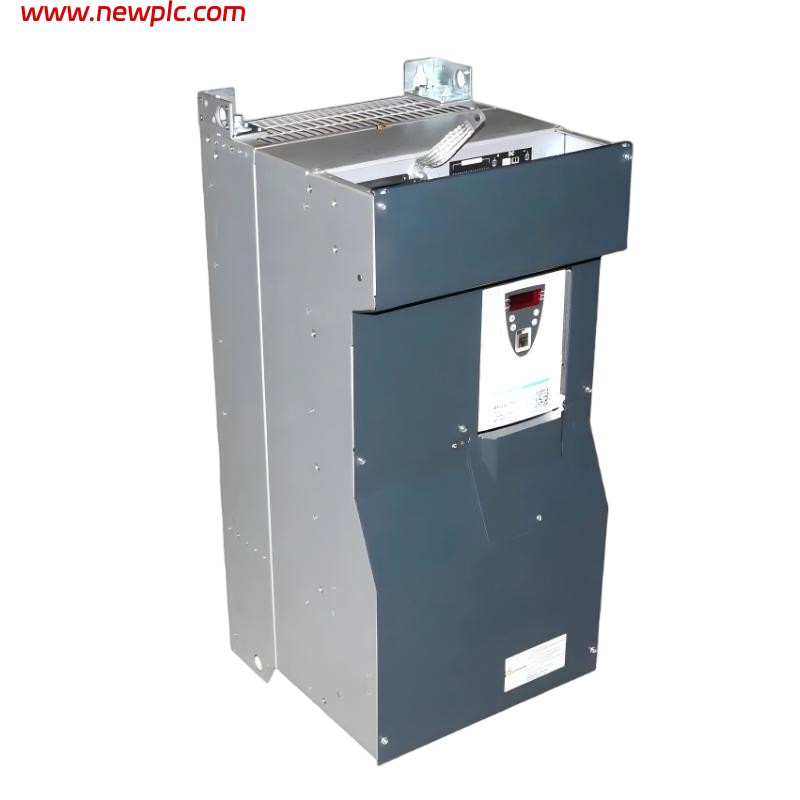

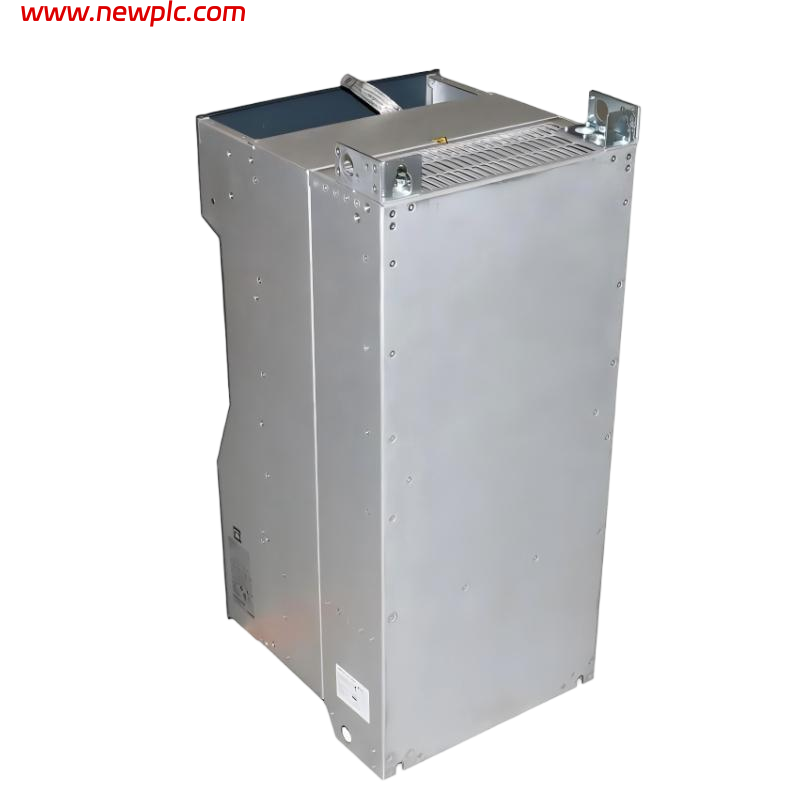

Schneider ATV71HC11N4 Variable Frequency Drive (VFD)

FAQ

Q1: What is the rated power capacity of this drive?
The ATV71HC11N4 is rated to control motors up to 110 kW (150 HP).

Q2: What supply voltage and frequency does it use?
It operates with a three‑phase 380–480 V AC supply at 50‑60 Hz.

Q3: What range of output frequency does this VFD provide?
It supports an adjustable output frequency range from 0.1 Hz to 500 Hz.

Q4: What types of motors can this drive control?
The drive supports multiple control methods including V/F ratio, energy adaptation (ENA), sensorless flux vector, and flux vector with sensor.

Q5: Does the ATV71HC11N4 include an EMC filter?
Yes, it includes an integrated EMC filter to help meet compatibility standards.

Q6: What protection and cooling features are provided?
The unit has an IP20 reinforcement rating and uses a heat sink for cooling.

Q7: What are the physical dimensions of this drive?
The approximate dimensions are 550 × 240 × 266 mm.

Q8: How much does the ATV71HC11N4 weigh?
The unit weighs around 37 kg.
