Technical Specifications
| Parameter | Specification |
|---|---|

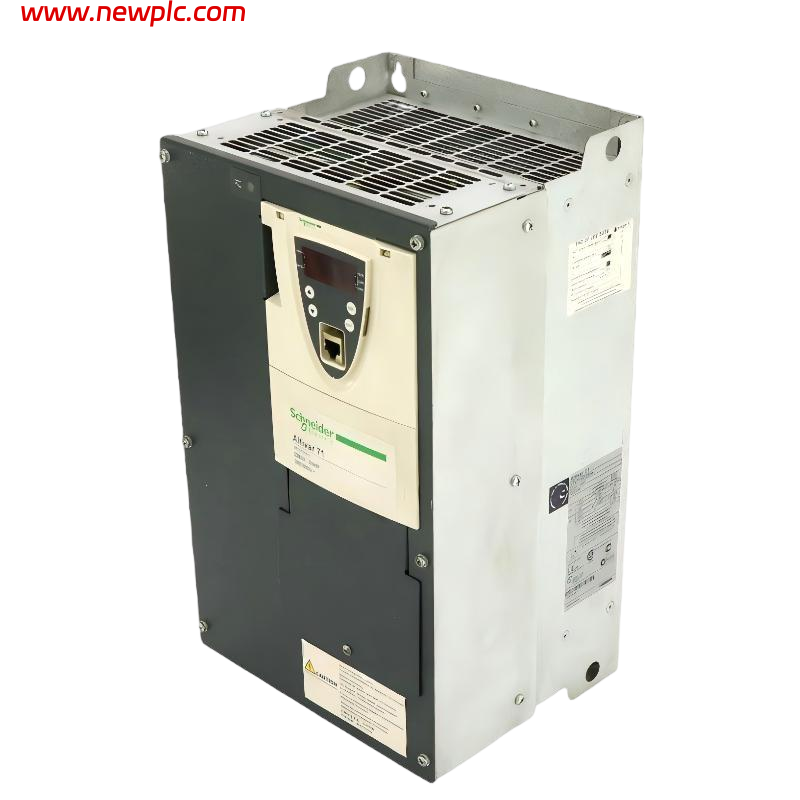

| Product Model | Schneider Electric ATV71HD22N4 |
| Product Series | Altivar 71 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Power | 22 kW (30 HP) |
| Supply Voltage | 3-phase 380–480 V AC |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.1–599 Hz |
| Nominal Output Current | ~41 A @ 460 V |
| Line Current | ~45 A @ 380 V / ~37 A @ 480 V |
| Maximum Transient Current | ~74 A (2 s) / ~67 A (60 s) |
| Motor Control Methods | V/F control, sensorless flux vector control, flux vector with encoder, ENA energy optimization |
| Protection Rating | IP20 |
| Cooling Method | Forced air cooling with heat sink |
| EMC Filter | Integrated |
| Communication Interfaces | Modbus (standard), optional fieldbus modules |
| Dimensions | 21.5 × 45.0 × 26.5 cm |
| Weight | ~24 kg |
FAQ
FAQ
Q1: What is the rated motor power for the ATV71HD22N4?
The drive is designed for motors up to 22 kW (30 HP).
Q2: What input voltage is required for this model?
It requires a three-phase 380–480 V AC power supply.
Q3: What output frequency range does the drive support?
The adjustable output frequency ranges from 0.1 Hz to 599 Hz.
Q4: Which motor control modes are available?
It supports V/F control, sensorless vector control, vector control with encoder feedback, and ENA energy optimization.
Q5: Does the ATV71HD22N4 include an EMC filter?
Yes, an integrated EMC filter is included as standard.
Q6: What is the enclosure protection level?
The drive has an IP20 rating and is intended for installation inside a control cabinet.
Q7: What are the physical dimensions of this drive?
The unit measures approximately 21.5 cm wide, 45.0 cm high, and 26.5 cm deep.
Q8: How much does the ATV71HD22N4 weigh?
The drive weighs approximately 24 kg.
