Technical Specifications
| Parameter | Specification |
|---|---|

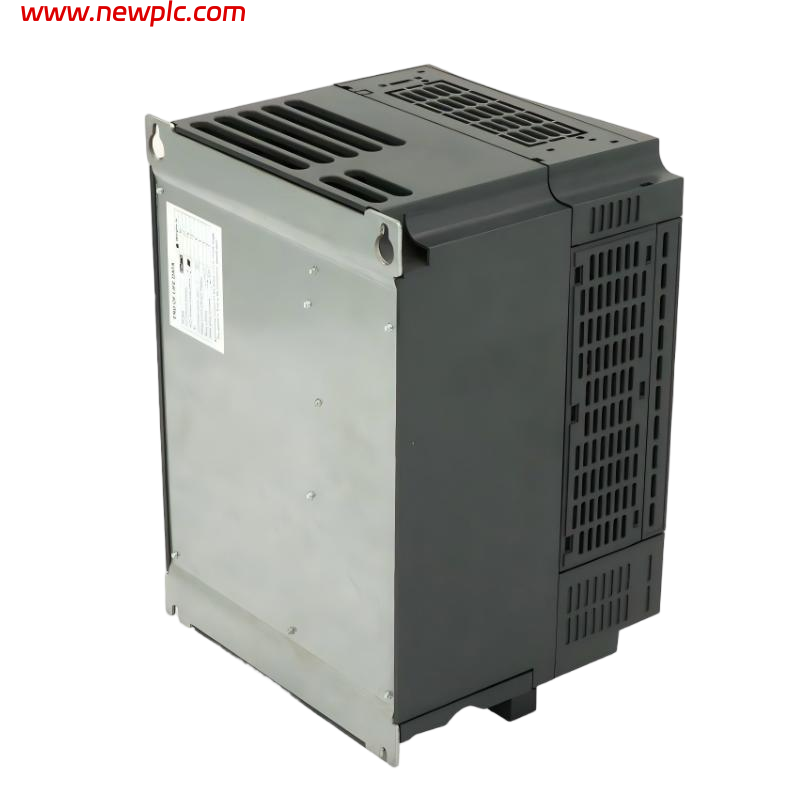

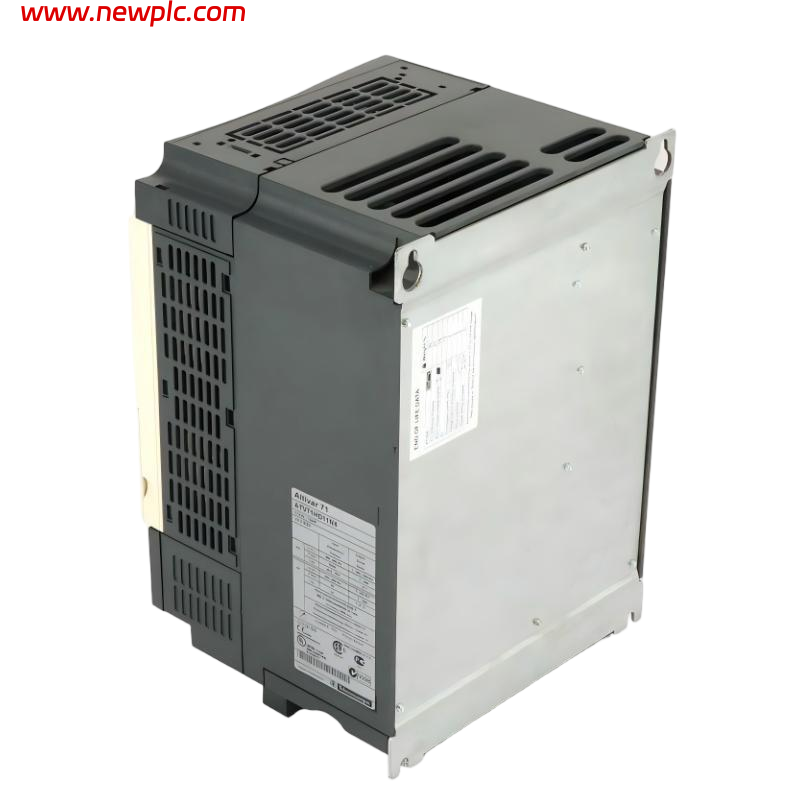

| Product Model | Schneider Electric ATV71HD45N4 |
| Product Series | Altivar 71 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Power | 45 kW (60 HP) |
| Supply Voltage | 3-phase 380–480 V AC (-15%/+10%) |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.1–500 Hz |
| Nominal Output Current | ~77 A @ 460 V (2.5 kHz) / ~94 A @ 380 V (2.5 kHz) |
| Line Current | ~85 A @ 480 V / ~104 A @ 380 V |
| Maximum Transient Current | ~141 A (60 s) / ~155 A (2 s) |
| Motor Control Methods | V/F ratio, sensorless vector, closed-loop vector with encoder, ENA energy adaptation |
| Protection Rating | IP20 |
| Cooling Method | Heat sink with forced air cooling |
| EMC Filter | Integrated |
| Communications | Modbus, CANopen (built-in); optional Profibus, EtherNet/IP via expansion |
| Dimensions | ~32.0 × 63.0 × 29.0 cm (W × H × D) |
| Weight | ~44 kg |
FAQ
FAQ
Q1: What is the rated motor power for this drive?
The ATV71HD45N4 is rated for 45 kW (60 HP) three-phase motor control.
Q2: What input voltage range does this model support?
It operates on a three-phase supply of 380–480 V AC with typical industrial tolerances.
Q3: What output frequency range is available?
The adjustable output frequency range is from approximately 0.1 Hz up to 500 Hz.
Q4: What motor control methods are supported?
This drive supports V/F control, sensorless vector control, closed-loop vector control with encoder feedback, and energy adaptation (ENA) profiles.
Q5: What protection and cooling features does the ATV71HD45N4 have?
It has an IP20 protection rating and uses a heat sink with forced air cooling for thermal management.
Q6: Does the drive include an EMC filter?
Yes, the unit includes an integrated EMC filter to reduce electromagnetic interference.
Q7: What are the physical dimensions of the unit?
The approximate dimensions are 32.0 cm wide, 63.0 cm high, and 29.0 cm deep.
Q8: How much does this drive weigh?
The drive weighs approximately 44 kg.
