Technical Specifications
| Parameter | Specification |
|---|---|

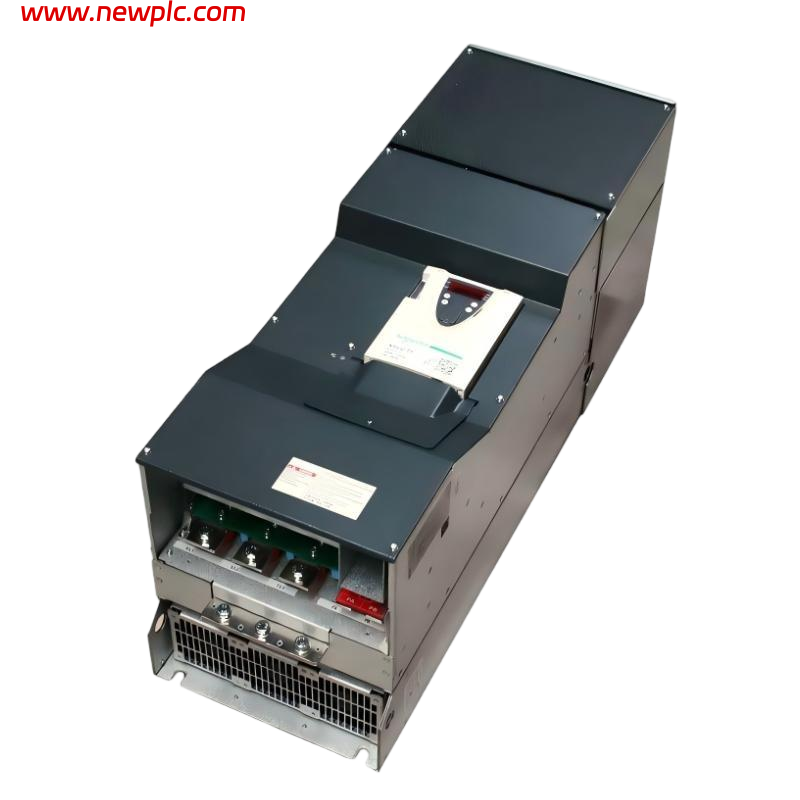

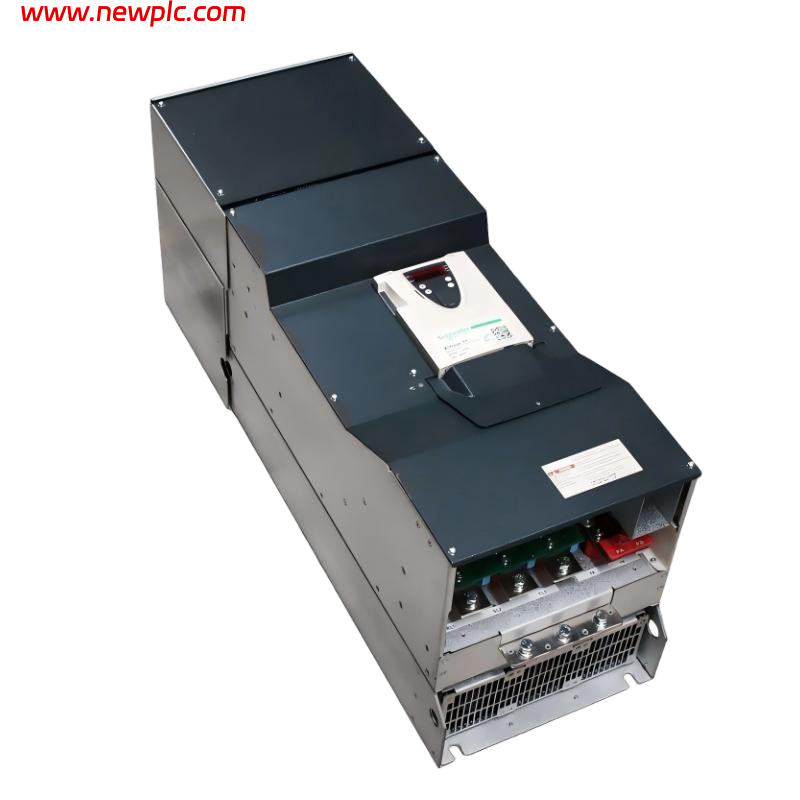

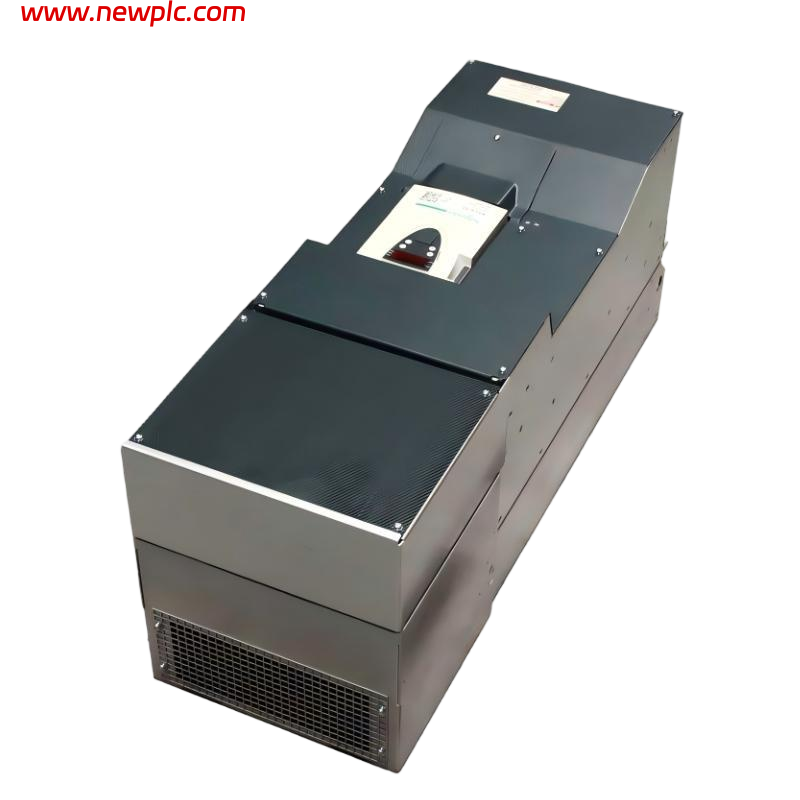

| Product Model | Schneider Electric ATV71HD90N4 |
| Product Series | Altivar 71 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Power | 90 kW (125 HP) three‑phase motor control |
| Supply Voltage | 3‑phase 380–480 V AC |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.1–500 Hz |
| Nominal Output Current | ~179 A at 2.5 kHz (380–460 V) |
| Line Current | ~134 A @ 480 V / ~166 A @ 380 V |
| Maximum Transient Current | ~269 A for 60 s / ~295 A for 2 s |
| Motor Control Methods | V/F ratio, sensorless flux vector, flux vector with sensor, ENA energy adaptation |
| Protection Rating | IP20 |
| Cooling Method | Heat sink with forced air cooling |
| EMC Filter | Integrated |
| Communications | Modbus, CANopen (optional) |
| Motor Cable Support | ≤100 m shielded / ≤200 m unshielded |
| Dimensions | 41 × 53 × 122.5 cm (W × H × D) approx. |
| Weight | ~77–107 kg (shipping/installed) |
FAQ
FAQ
Q1: What is the rated power of the ATV71HD90N4?
It is designed for 90 kW (125 HP) three‑phase motor control applications.
Q2: What supply voltage does this drive require?
The drive operates from a three‑phase 380–480 V AC supply at 50/60 Hz.
Q3: What output frequency range does it support?
The adjustable output frequency range is from 0.1 Hz up to 500 Hz.
Q4: What motor control methods are available?
It supports various control methods, including V/F ratio, sensorless flux vector, flux vector with encoder sensor, and ENA energy adaptation.
Q5: Does the drive include an EMC filter?
Yes, an integrated EMC filter is provided to reduce electrical noise and meet compatibility standards.
Q6: What are the typical current ratings?
Nominal output current is about 179 A, with line current around 134 A at 480 V and 166 A at 380 V.
Q7: What are the dimensions of the ATV71HD90N4?
Its approximate size is 41 cm (width) × 53 cm (height) × 122.5 cm (depth).
Q8: How much does this drive weigh?
The unit weighs approximately 77 kg (installed), and shipping weight may be higher (~107 kg).
