Technical Specifications
| Parameter | Specification |
|---|---|

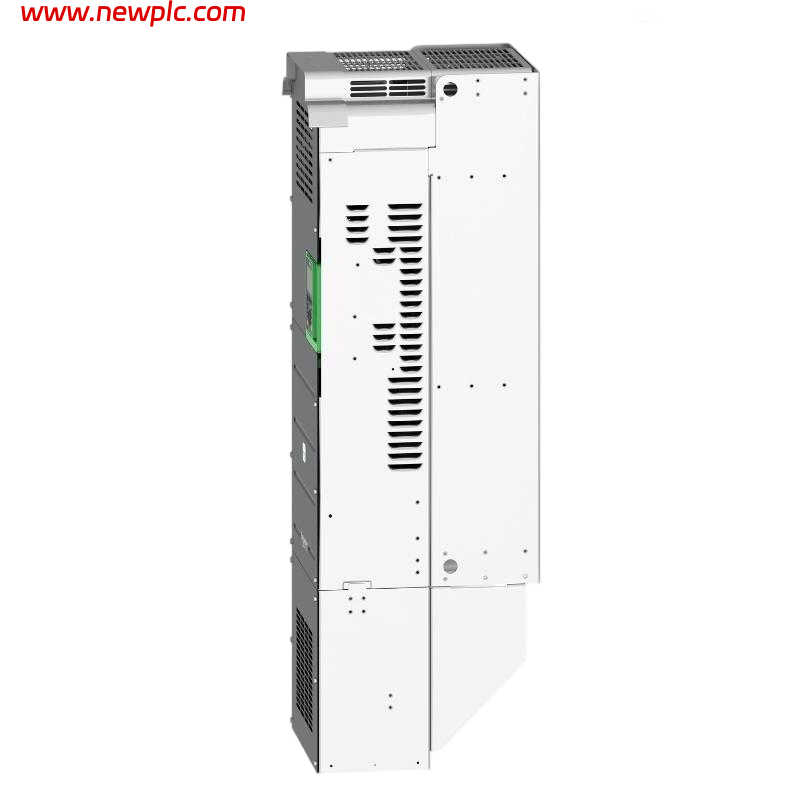

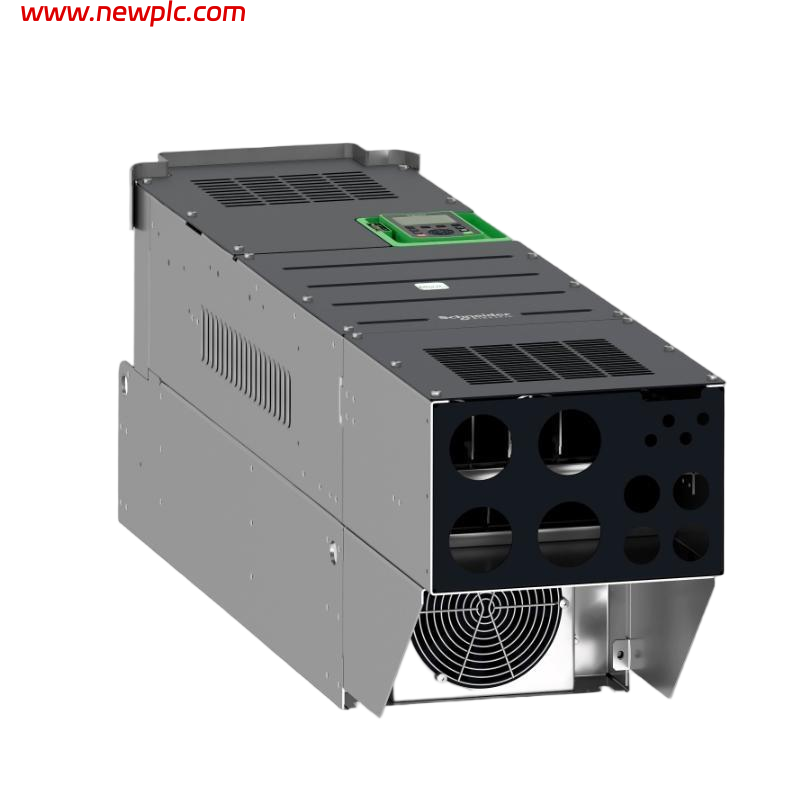

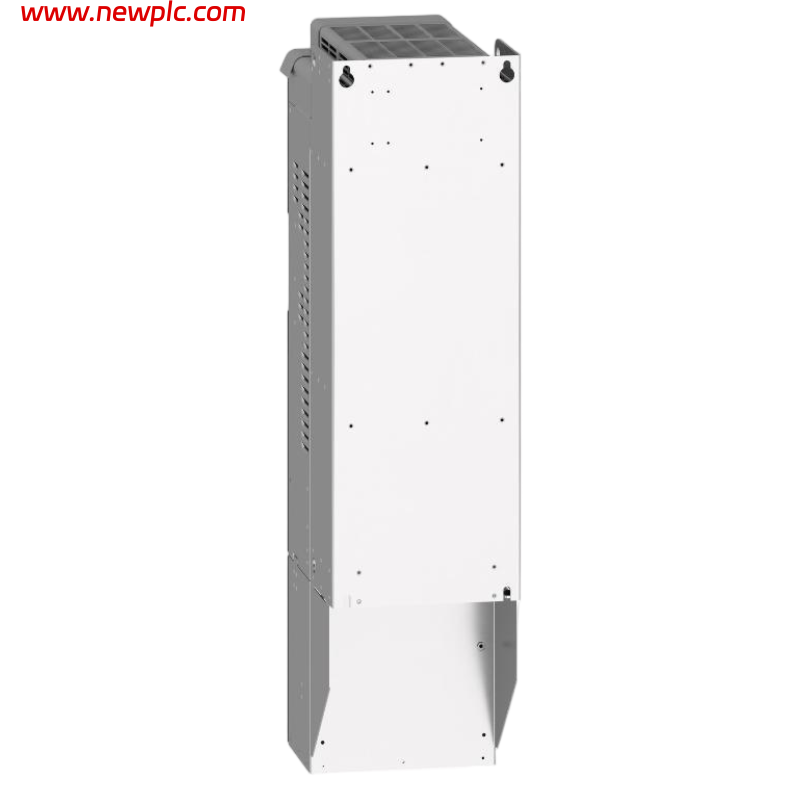

| Product Model | Schneider Electric ATV930C11N4 |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 110 kW (Normal Duty) / 90 kW (Heavy Duty) |
| Rated Horsepower | 150 HP (Normal Duty) / 125 HP (Heavy Duty) |
| Supply Voltage | 3‑phase 380 – 480 V AC (‑15 %/+10 %) |
| Supply Frequency | 50 – 60 Hz |
| Output Frequency Range | 0.1 – 599 Hz |
| Continuous Output Current | ~211 A Normal Duty / ~173 A Heavy Duty (4 kHz) |
| Line Current | ~201 A @ 380 V Normal Duty / ~170 A @ 380 V Heavy Duty |
| Switching Frequency | 1 – 8 kHz adjustable (nominal 2.5 kHz) |
| Control Methods | V/F ratio, sensorless vector, field‑oriented, torque control (multi‑motor support) |
| Communication Protocols | Ethernet/IP, Modbus TCP, Modbus serial; optional Profibus DP, PROFINET, DeviceNet, EtherCAT, CANopen cards |
| EMC Filter | Integrated (with optional EMC plate) |
| Protection Rating | IP21 / UL Type 1 |
| Mounting Method | Wall mount (vertical) |
| Dimensions (W × H × D) | 32.0 × 120.5 × 39.3 cm approx. |
| Weight | ~104 kg |
FAQ
FAQ
Q1: What motor power ratings does the ATV930C11N4 support?
It supports up to 110 kW (150 HP) for normal duty and 90 kW (125 HP) under heavy duty conditions.
Q2: What supply voltage and frequency does this VFD require?
The drive operates on a 3‑phase 380–480 V AC supply at 50–60 Hz.
Q3: What output frequency range can this model deliver?
It can provide an adjustable output frequency from 0.1 Hz up to 599 Hz.
Q4: What types of motor control are available?
The drive supports V/F ratio control, sensorless vector control, field‑oriented control, and torque control for both asynchronous and synchronous motors.
Q5: What communication interfaces are available?
Standard interfaces include Ethernet/IP, Modbus TCP, and Modbus serial, with optional expansion modules for Profibus DP, PROFINET, DeviceNet, EtherCAT, and CANopen.
Q6: Does the ATV930C11N4 include an EMC filter?
Yes, it includes an integrated EMC filter, and there is an option to install an EMC plate for enhanced filtering.
Q7: What are the physical dimensions and weight of this drive?
The unit measures approximately 32.0 × 120.5 × 39.3 cm and weighs around 104 kg.
Q8: What protection rating and mounting method does this VFD have?
It has an IP21 / UL Type 1 protection rating and is designed for vertical wall mounting.
