Technical Specifications
| Parameter | Specification |
|---|---|

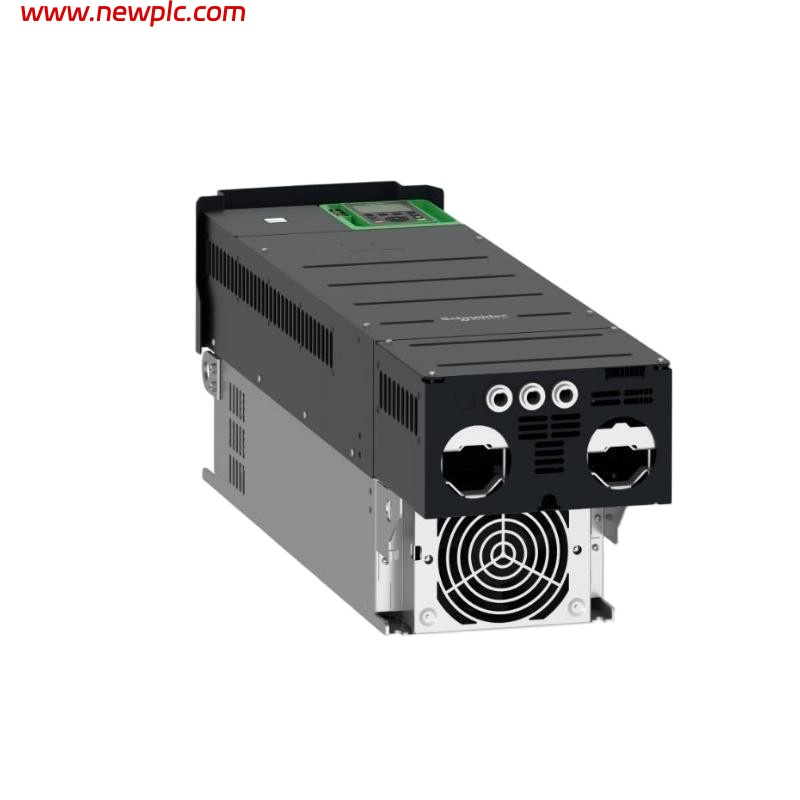

| Product Model | ATV930D37N4 |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 37 kW (Normal Duty) / 30 kW (Heavy Duty) |
| Rated Horsepower | 50 HP (Normal Duty) / 40 HP (Heavy Duty) |
| Supply Voltage | 3-phase 380–480 V AC (-15 %/+10 %) |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.1–599 Hz |
| Continuous Output Current | ~74.5 A (Normal Duty) / ~61.5 A (Heavy Duty) |
| Line Current | ~66.2 A @ 380 V (Normal Duty) / ~57.3 A @ 480 V (Normal Duty) |
| Maximum Transient Current | ~111 A (for 60 s) |
| Motor Control Methods | V/F ratio, sensorless vector, flux vector (with encoder option) |
| Protection Rating | IP21 / UL Type 1 |
| Safety Functions | Safe Torque Off (STO), Safe Stop 1 (SS1) |
| Communication Interfaces | Ethernet/IP, Modbus TCP, Modbus serial |
| Mounting Method | Vertical wall mounting ±10° |
| Dimensions (W × H × D) | 22.6 × 67.3 × 27.1 cm (approx.) |
| Weight | ~28.2 kg |
FAQ
FAQ
Q1: What motor power ratings does the ATV930D37N4 support?
It supports up to 37 kW (50 HP) under normal duty and about 30 kW (40 HP) under heavy duty conditions.
Q2: What supply voltage and frequency does this drive require?
The drive operates on a three-phase 380–480 V AC power supply at 50/60 Hz.
Q3: What output frequency range can the ATV930D37N4 deliver?
The adjustable output frequency range is approximately 0.1 Hz to 599 Hz.
Q4: What continuous output current does this model provide?
Continuous output current is about 74.5 A for normal duty and around 61.5 A for heavy duty at 4 kHz.
Q5: What motor control methods are supported by this VFD?
The drive supports V/F ratio control, sensorless vector control, and optional flux vector control with encoder.
Q6: What communication options are available?
Standard communication interfaces include Ethernet/IP, Modbus TCP, and Modbus serial.
Q7: What are the physical dimensions and weight of the drive?
The unit’s approximate dimensions are 22.6 × 67.3 × 27.1 cm and it weighs approximately 28.2 kg.
Q8: What protection and safety features does this model have?
The drive has an IP21 / UL Type 1 protection rating and includes safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1).
