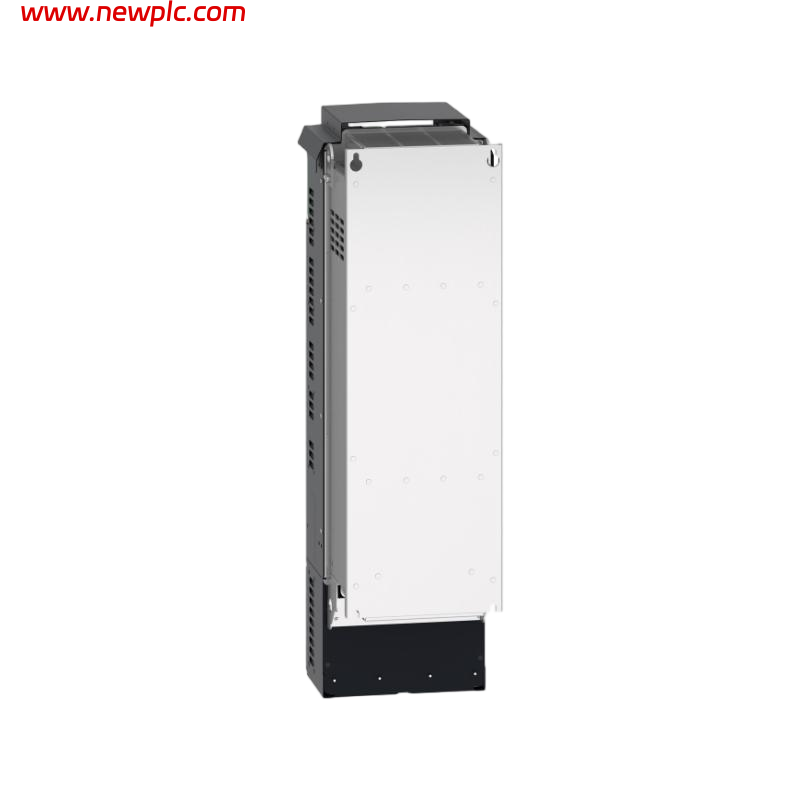

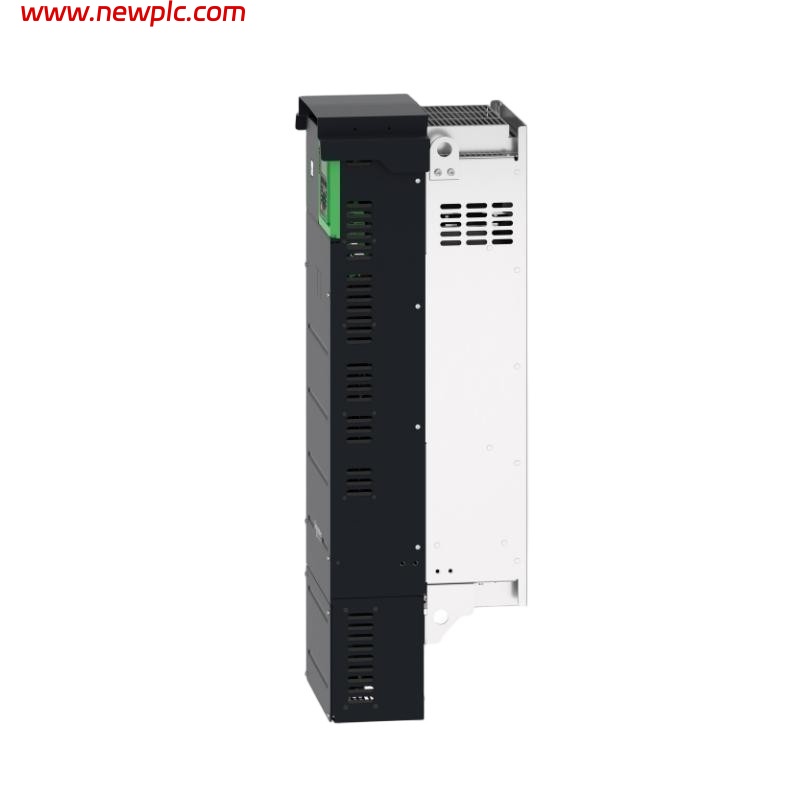

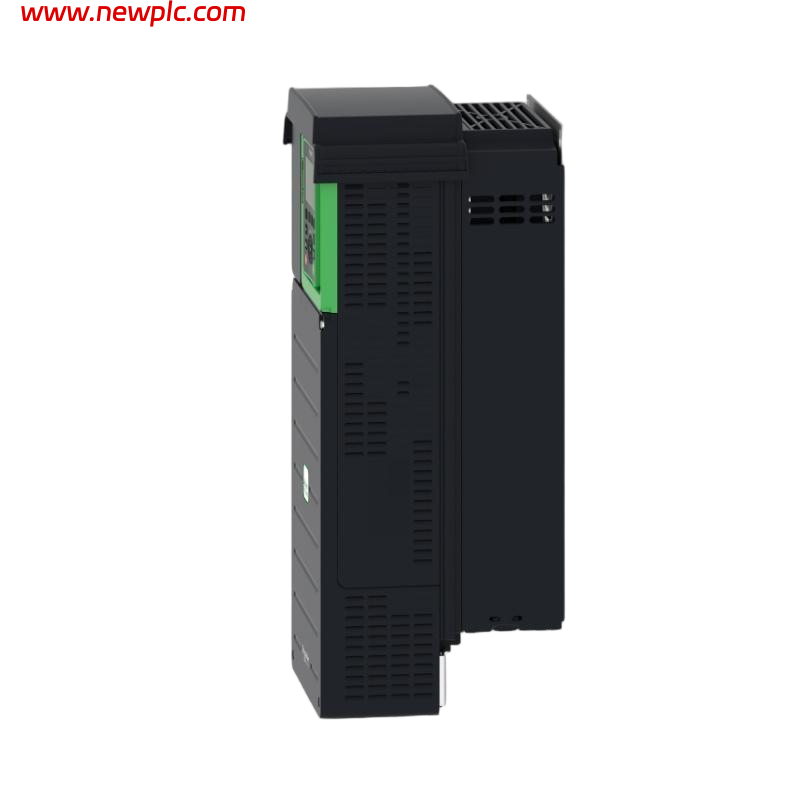

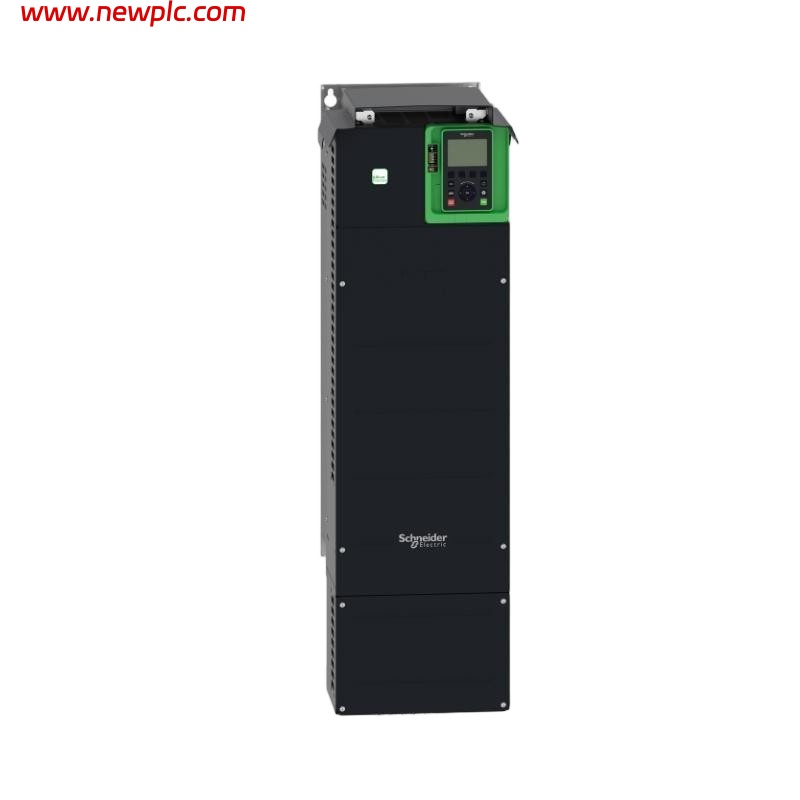

Schneider ATV930D55N4 Variable Frequency Drive (VFD)

FAQ

Q1: What motor power can the ATV930D55N4 handle?
The drive supports up to 55 kW (75 HP) in normal duty and 45 kW (60 HP) in heavy duty use.

Q2: What supply voltage and frequency does this model require?
It operates on a three-phase 380–480 V AC supply at 50/60 Hz.

Q3: What is the adjustable output frequency range?
This model can output a frequency from about 0.1 Hz up to 599 Hz.

Q4: What are the typical current ratings of this drive?
Continuous output current is approximately 106 A for normal duty and 88 A for heavy duty.

Q5: What motor control methods does it support?
It supports V/F ratio control, sensorless vector control, and vector control with encoder feedback.

Q6: Does the ATV930D55N4 include a braking unit?
Yes, it includes an integrated braking chopper for improved deceleration control.

Q7: What are the dimensions and weight of the drive?
The unit’s size is approximately 29.0 × 92.2 × 32.5 cm, and it weighs about 57.5 kg.

Q8: What communication interfaces are available on this drive?
It includes EtherNet/IP, Modbus TCP, and Modbus Serial interfaces for integration with automation networks.
