Technical Specifications
| Parameter | Specification |
|---|---|

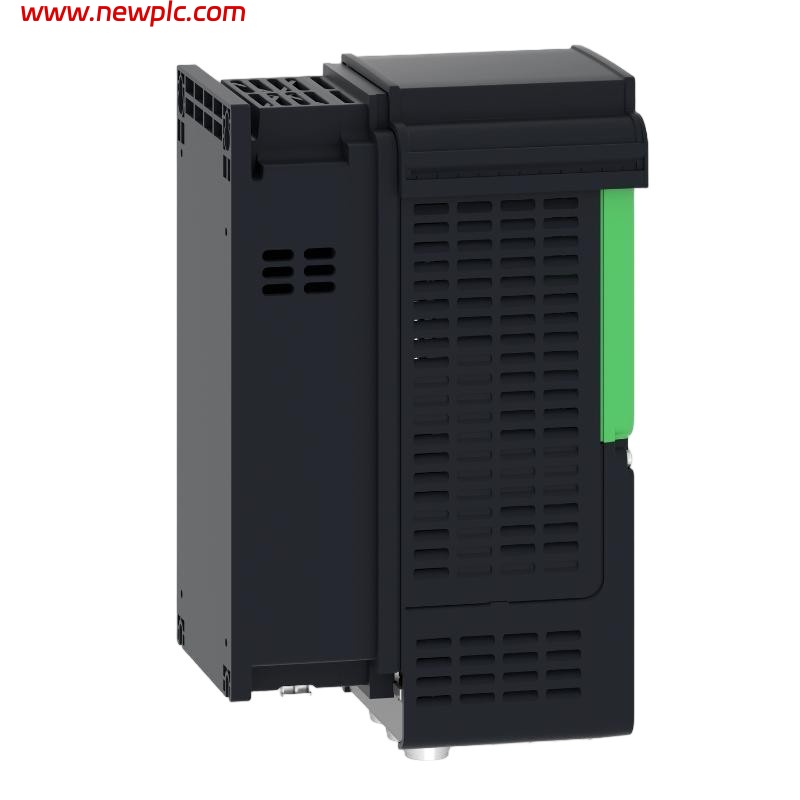

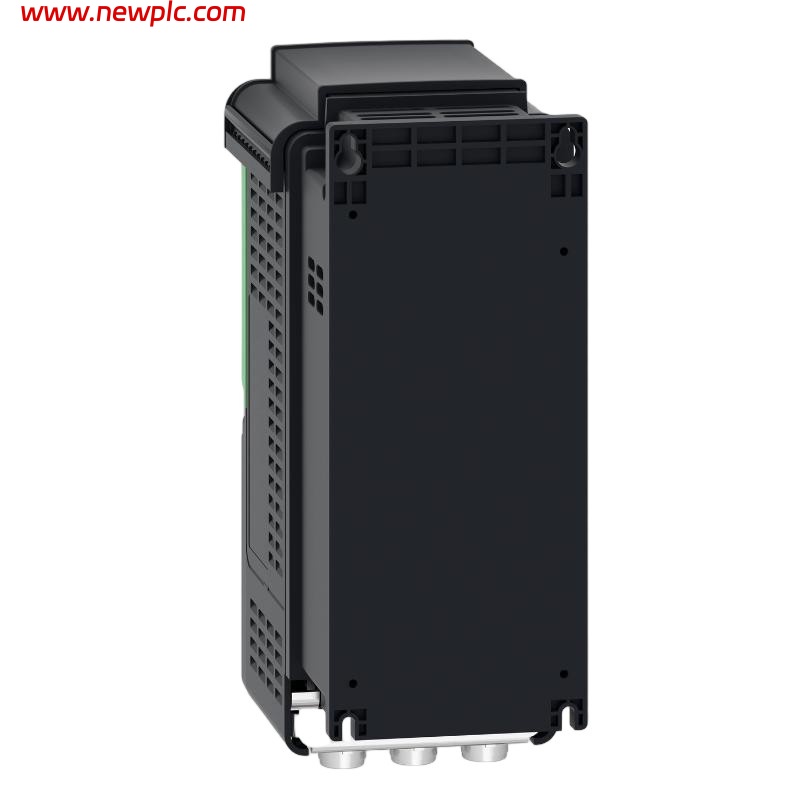

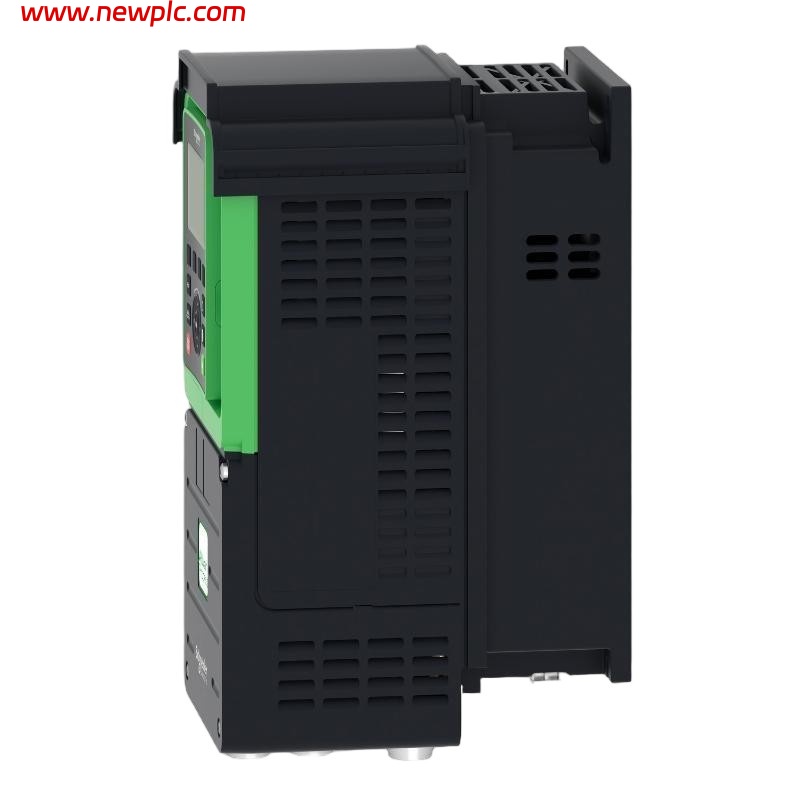

| Product Model | ATV930U40N4 |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 4.0 kW (Normal Duty) / 3.0 kW (Heavy Duty) |
| Rated Horsepower | ~5.5 HP (Normal Duty) / ~4 HP (Heavy Duty) |
| Supply Voltage | 3-phase 380–480 V AC |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.1–599 Hz |
| Continuous Output Current | ~9.3 A (Normal Duty) / ~7.2 A (Heavy Duty) |
| Motor Control Methods | V/F control, sensorless vector control, flux vector control (encoder option) |
| Braking Unit | Integrated braking chopper |
| EMC Filter | Integrated |
| Protection Rating | IP21 / UL Type 1 |
| Communication Interfaces | Modbus TCP, Modbus Serial, EtherNet/IP |
| Mounting Method | Vertical wall mounting |
| Dimensions | 14.4 cm × 35.0 cm × 20.6 cm |
| Weight | ~4.6 kg |
FAQ
FAQ
Q1: What motor power range is supported by the ATV930U40N4?
It supports motors up to 4.0 kW in normal duty and 3.0 kW in heavy duty applications.
Q2: What input power supply does this drive require?
The drive operates on a three-phase 380–480 V AC power supply at 50/60 Hz.
Q3: What is the available output frequency range?
The output frequency can be adjusted from 0.1 Hz up to 599 Hz.
Q4: Which motor control modes are available?
The drive supports V/F control, sensorless vector control, and flux vector control with optional encoder feedback.
Q5: Does this model include a braking function?
Yes, an integrated braking chopper is built in for effective deceleration control.
Q6: What communication protocols are supported?
Standard communication includes Modbus TCP, Modbus Serial, and EtherNet/IP.
Q7: What are the physical size and weight of the drive?
The unit measures approximately 14.4 cm × 35.0 cm × 20.6 cm and weighs about 4.6 kg.
Q8: What is the enclosure protection level?
The drive has an IP21 rating, suitable for installation inside an electrical cabinet in controlled environments.
