Technical Specifications
| Item | Specification |
|---|---|

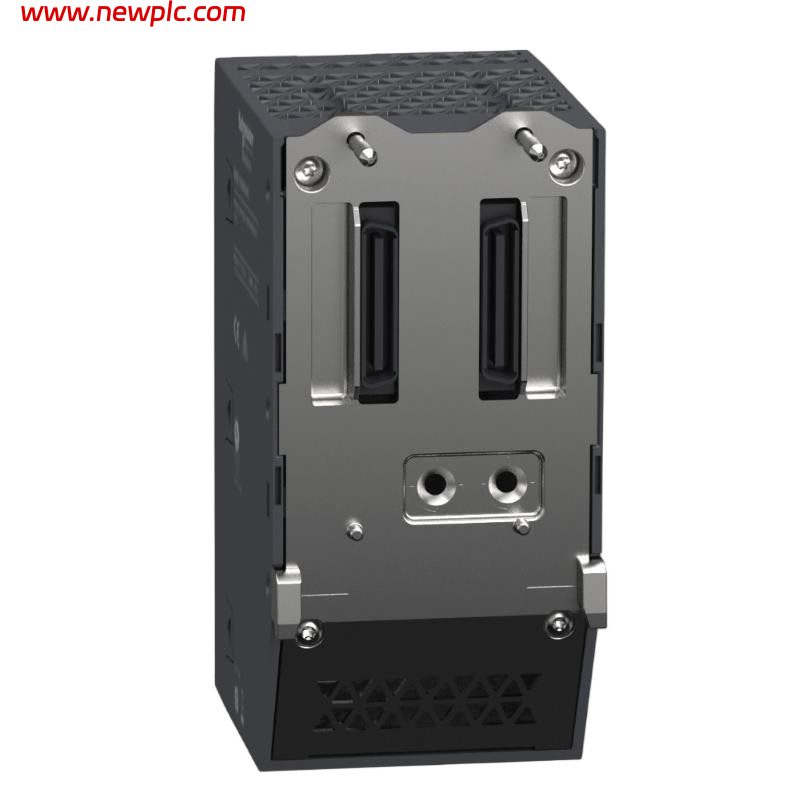

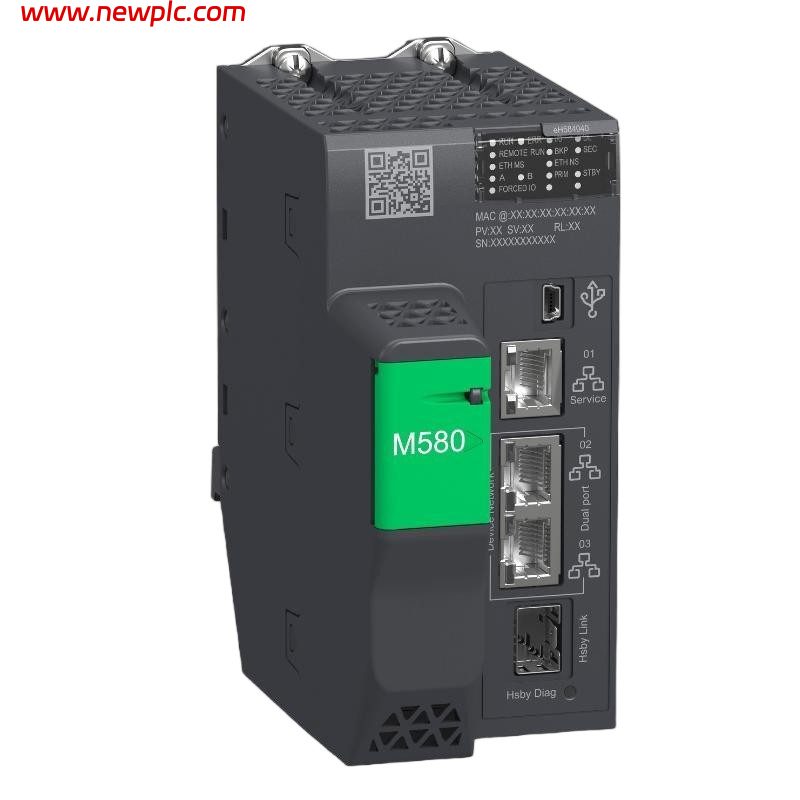

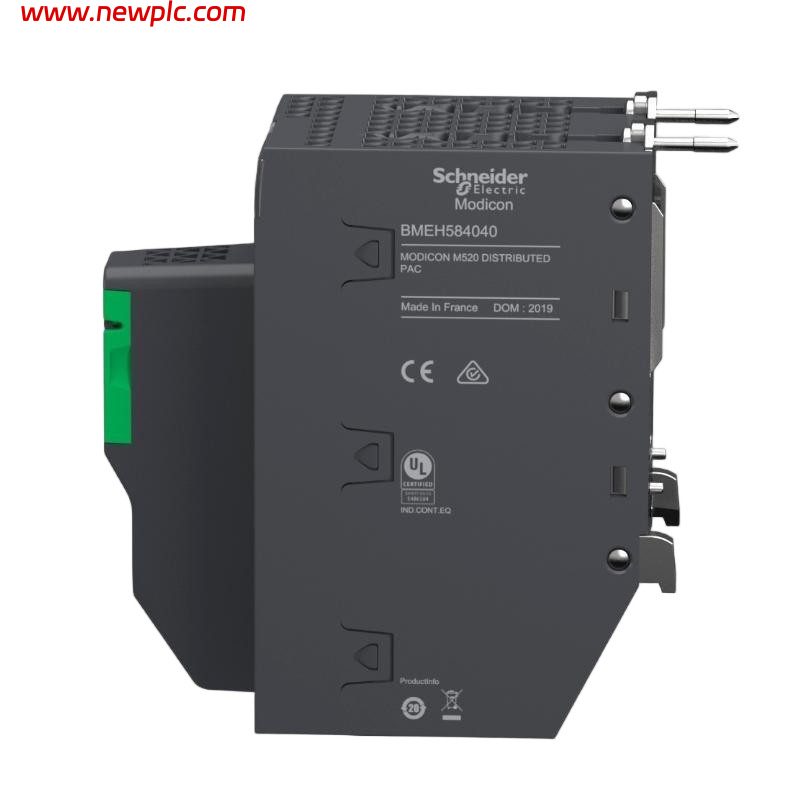

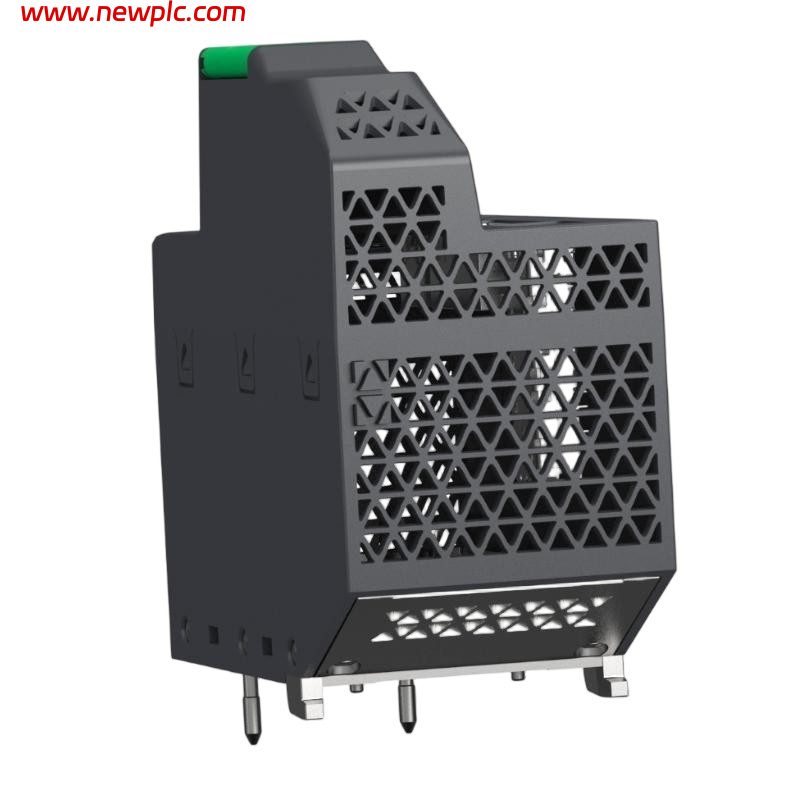

| Product Name | Schneider Electric BMEH582040 |
| Product Type | Redundant Hot Standby Processor Module |
| Product Series | Modicon M580 |
| Processor Architecture | Dual-redundant (HSBY Level 2) |
| Application | Medium to large process automation systems |
| Supply Voltage | 24 V DC (via rack backplane) |
| Current Consumption | 270 mA at 24 V DC |
| Number of Racks Supported | 1 local rack configuration |
| Remote I/O Capacity | Up to 8 remote X80 drops |
| Distributed Devices | Up to 64 devices |
| Discrete I/O Capacity | Up to 8192 channels |
| Analog I/O Capacity | Up to 2048 channels |
| Program Memory | 8 MB RAM |
| Data Memory | 768 kB RAM |
| System Memory | 10 kB RAM |
| Flash Memory | 4 GB expandable |
| Ethernet Ports | 1 service port + 2 device network ports + 1 HSBY port |
| USB Port | 1 × USB mini-B |
| Processing Performance | Up to 40 Kinst/ms (Boolean operations) |
| Task Structure | 1 fast periodic task + 1 master cyclic task |
| Cybersecurity Features | Firewall, HTTPS, IPSec, firmware signature, audit trail |
| Diagnostics | RUN, ERR, I/O, DL status LEDs |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| MTBF | ~600,000 hours |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Standards | IEC 61131-2, IEC 61010-2-201 |
| Country of Origin | France |
| Dimensions (W × H × D) | 178 × 88 × 250 mm |
| Weight | ~0.85 kg |
FAQ
FAQ
Q1: What is the BMEH582040 used for?
It is a redundant processor module used in Schneider Electric Modicon M580 PLC systems for high-reliability industrial automation and process control.
Q2: What does “Hot Standby” mean in this module?
It means two processors operate in a redundant pair—one active and one standby—so if the active unit fails, the standby takes over automatically.
Q3: How many I/O points can it handle?
It supports up to 8192 discrete I/O channels and 2048 analog I/O channels across the system.
Q4: What communication interfaces are included?
It includes one Ethernet service port, two Ethernet device network ports, one Ethernet HSBY port, and one USB mini-B port.
Q5: What is the memory capacity of the BMEH582040?
It has 8 MB program RAM, 768 kB data RAM, 10 kB system memory, and 4 GB expandable flash storage.
Q6: Is this module suitable for large industrial plants?
Yes, it is designed for medium to large-scale process industries such as oil & gas, water treatment, power generation, and chemical processing.
Q7: What is the operating temperature range?
It operates from -25°C to +60°C and can be stored from -40°C to +85°C.
Q8: What are the dimensions and weight of the module?
It measures approximately 178 × 88 × 250 mm and weighs about 0.85 kg.
