Technical Specifications
| Item | Specification |
|---|---|

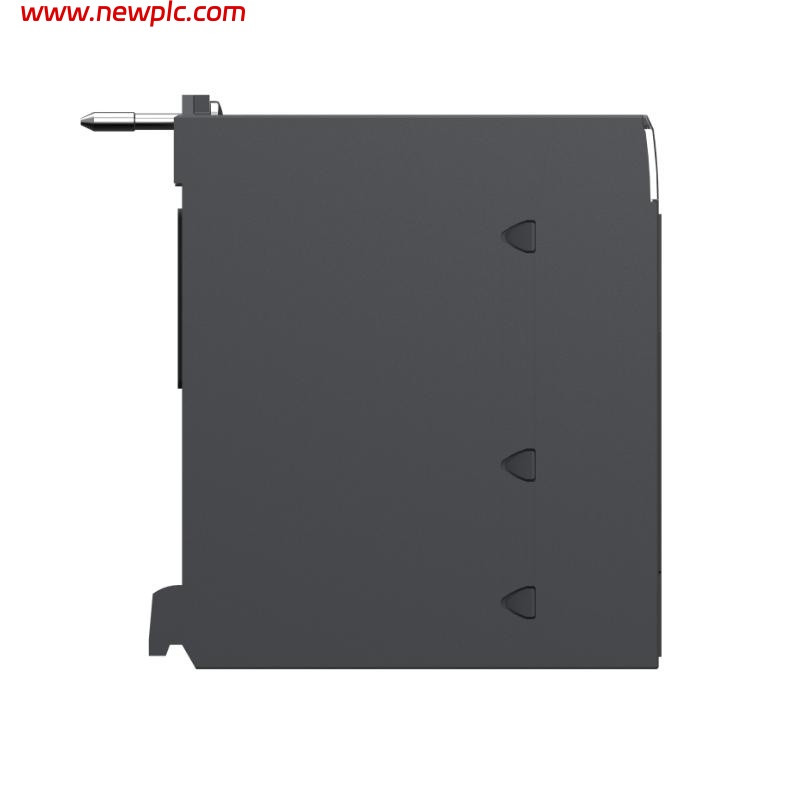

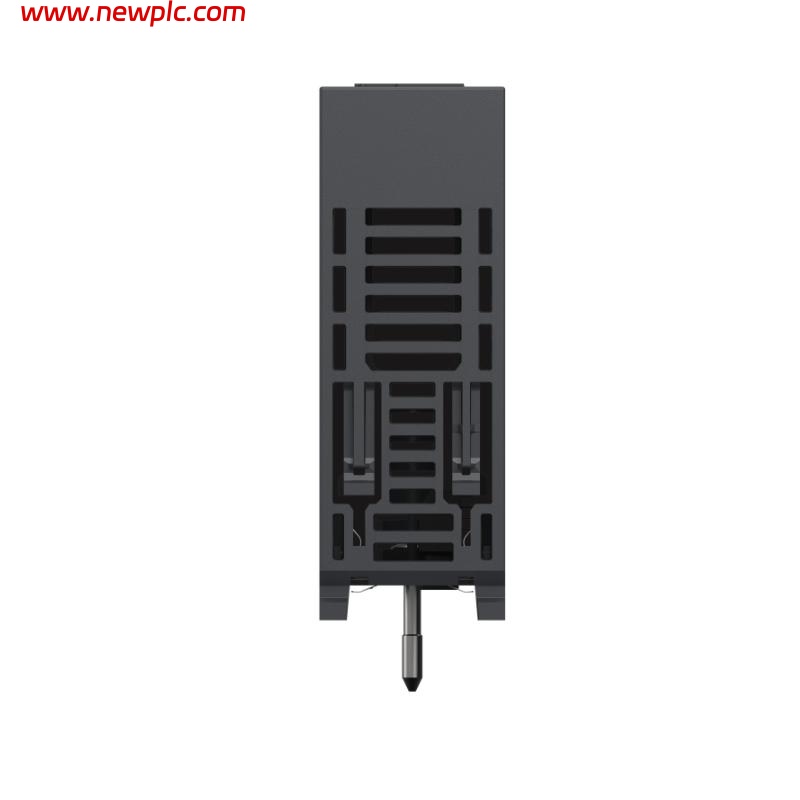

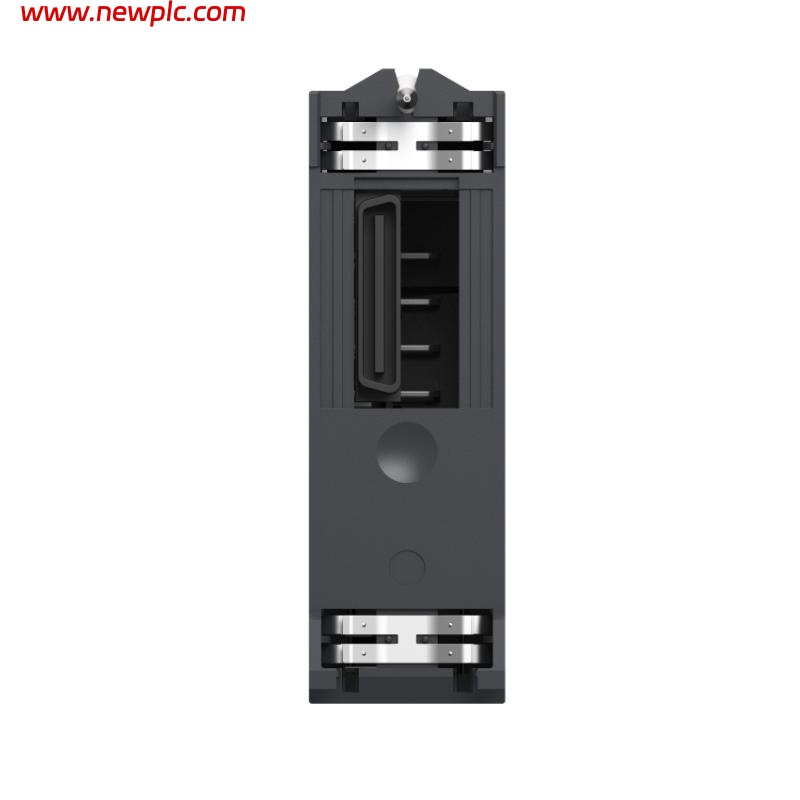

| Model | Schneider BMXAM00410 |
| Type | Analog Input Module |
| Product Category | Distributed I/O module |
| Product Family | Modicon BMX / M340 automation system |
| Input Type | Analog voltage and current inputs |
| Number of Input Channels | 4 channels |
| Supported Signal Types | 0–10 V, 0–5 V, ±10 V, 0/4–20 mA (configurable) |
| Input Resolution | 12-bit (typical) |
| Input Impedance | High impedance for voltage; suitable resistance for current input |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Status Indication | LEDs for module and channel status |
| Mounting Method | DIN rail or BMX base mounting |
| Field Wiring Connection | Screw terminal connectors |
| Operating Temperature Range | 0 °C to +60 °C |
| Storage Temperature Range | –20 °C to +70 °C |
| Protection Rating | IP20 |
| Housing Material | Industrial-grade plastic and metal contacts |
| Application Environment | Industrial automation and control cabinets |
| Compatibility | Modicon BMX distributed I/O modules and M340 controllers |
| Dimensions | Approx. 90 mm × 90 mm × 58 mm |
| Weight | Approximately 0.45 kg |
FAQ
FAQ
Q1: What is the primary function of the BMXAM00410 module?
It provides four analog input channels for measuring process signals such as voltage and current in industrial automation systems.
Q2: How many input channels does the BMXAM00410 support?
It supports 4 independent analog input channels.
Q3: What types of analog signals can this module measure?
It can measure voltage signals (0–10 V, 0–5 V, ±10 V) and current signals (0–20 mA, 4–20 mA).
Q4: Does the module provide electrical isolation?
Yes, it offers channel-to-channel and channel-to-backplane isolation to improve measurement accuracy and safety.
Q5: How are the analog signals connected?
Analog signals are connected via screw terminal connectors for secure field wiring.
Q6: Does the BMXAM00410 provide any status indication?
Yes, the module includes LED indicators for power and channel status.
Q7: Can this module be used in harsh industrial environments?
Yes, it is designed for industrial automation applications within standard temperature ranges.
Q8: What are the physical dimensions and weight of the BMXAM00410?
The module measures approximately 90 mm × 90 mm × 58 mm and weighs about 0.45 kg.
