Technical Specifications
| Item | Specification |
|---|---|

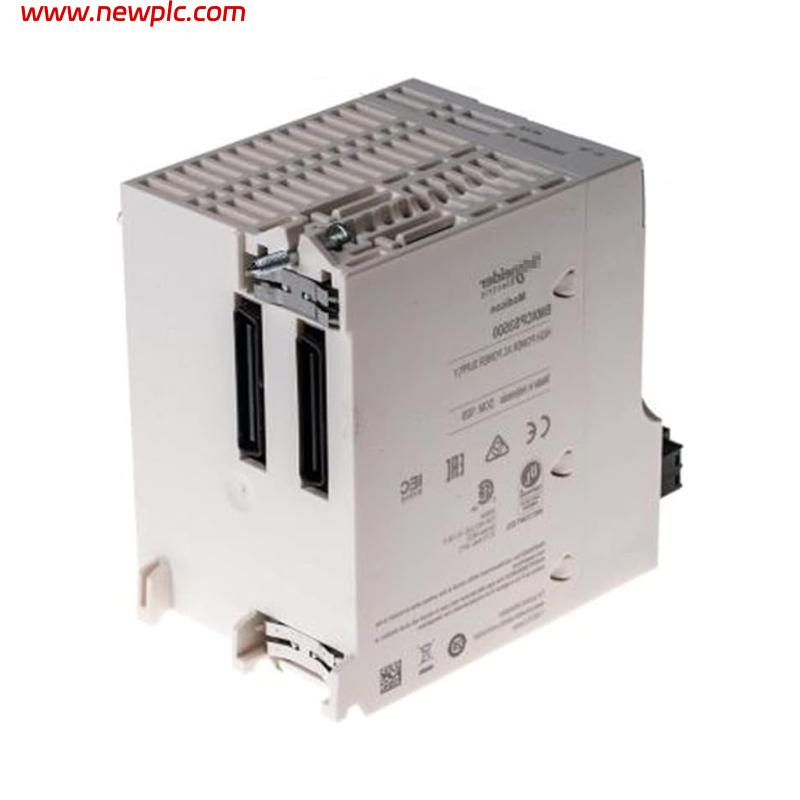

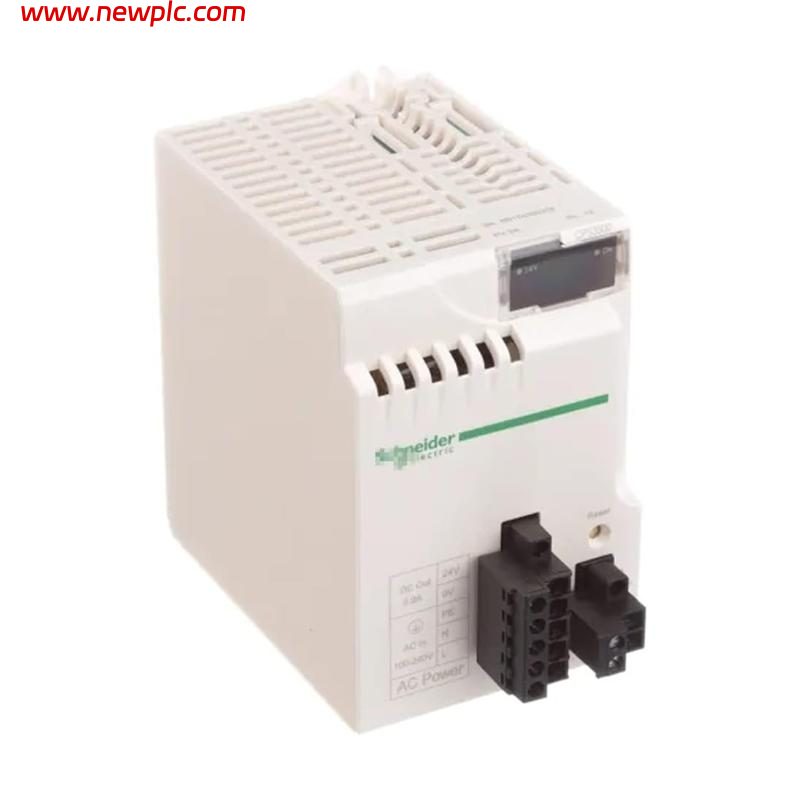

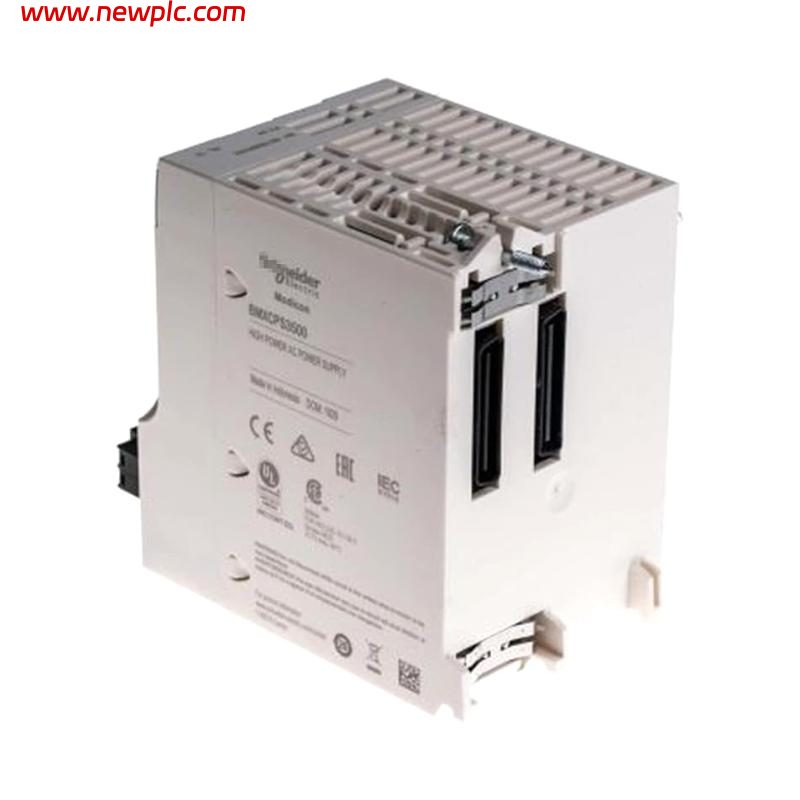

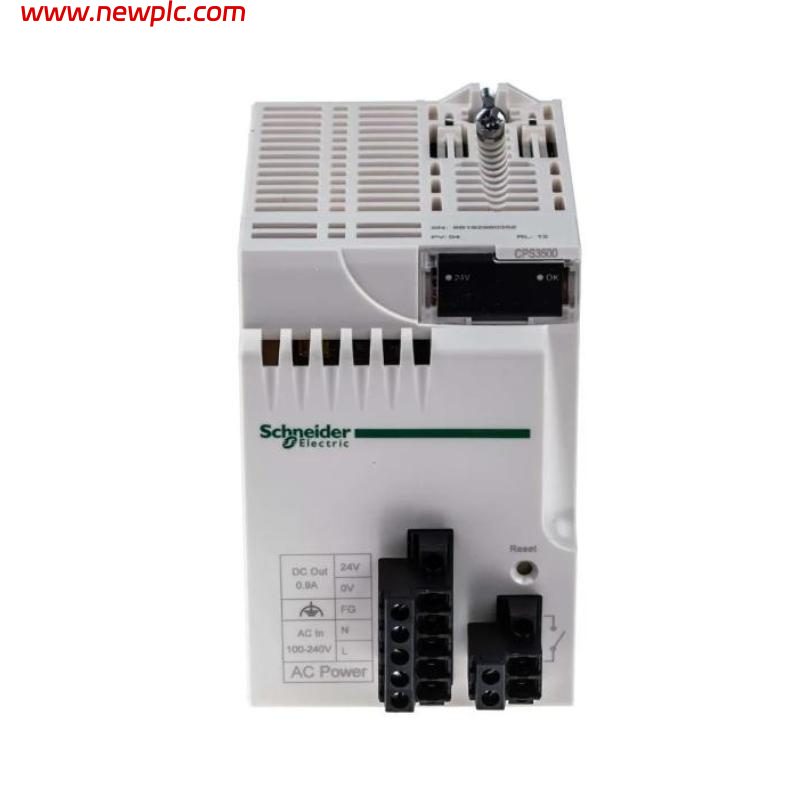

| Product Name | Schneider Electric BMXCPS3500 |
| Product Type | Power Supply Module |
| Product Series | Modicon X80 |
| Supply Circuit Type | AC |
| Primary Voltage | 100–240 V AC |
| Input Voltage Limits | 85–264 V AC |
| Network Frequency | 50/60 Hz |
| Frequency Limits | 47–63 Hz |
| Apparent Power | 0.07 kVA |
| Input Current | 0.52 A at 240 V AC; 1.04 A at 115 V AC |
| Total Useful Secondary Power | Up to 36 W |
| Secondary Output (Logic Supply) | 15 W at 3.3 V DC |
| Secondary Output (I/O & Processor Supply) | 31.2 W at 24 V DC |
| Secondary Output (Sensor Supply) | 21.6 W at 24 V DC |
| Output Current (3.3 V DC) | 4.5 A |
| Output Current (24 V DC I/O & Processor) | 1.3 A |
| Output Current (24 V DC Sensor) | 0.9 A |
| Inrush Current | 30 A at 120 V AC; 60 A at 240 V AC |
| Protection Features | Internal fuse, overload protection, overvoltage protection, short-circuit protection |
| Status Indicators | Green LED for rack voltage OK; Green LED for sensor voltage OK |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 30 gn |
| Vibration Resistance | 3 gn |
| Protection Rating | IP20 |
| Dimensions (H × W × D) | 130 × 155 × 155 mm |
| Weight | 0.36 kg |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Compatibility | Modicon X80, M340, and M580 platforms (not compatible with BMEXBP..02 backplanes) |
FAQ
FAQ
Q1: What is the BMXCPS3500 used for?
The BMXCPS3500 is an AC power supply module designed to provide stable power for Modicon X80, M340, and M580 automation systems. It powers processors, I/O modules, and field sensors.
Q2: What input voltage does the BMXCPS3500 support?
The module accepts a nominal input voltage of 100–240 V AC and can operate within an extended range of 85–264 V AC.
Q3: What is the maximum power output of the module?
The BMXCPS3500 provides up to 36 W of useful secondary power for connected automation components.
Q4: Does the BMXCPS3500 include protection functions?
Yes. The module incorporates overload, overvoltage, and short-circuit protection, along with an internal primary-circuit fuse.
Q5: What are the dimensions and weight of the BMXCPS3500?
The module measures approximately 130 × 155 × 155 mm and weighs about 0.36 kg, making it compact for installation in control cabinets.
Q6: Can the BMXCPS3500 be used in industrial environments?
Yes. It is designed for industrial applications and operates in temperatures from 0°C to 60°C with an IP20 protection rating.
Q7: How can users verify that the power supply is operating correctly?
The module features green status LEDs that indicate rack voltage status and sensor voltage status for quick diagnostics.
Q8: Which Schneider Electric automation platforms support the BMXCPS3500?
The module is designed for Modicon X80 architectures and is commonly used with Modicon M340 and M580 PLC systems.
