Technical Specifications Table
| Parameter | Description |
|---|---|

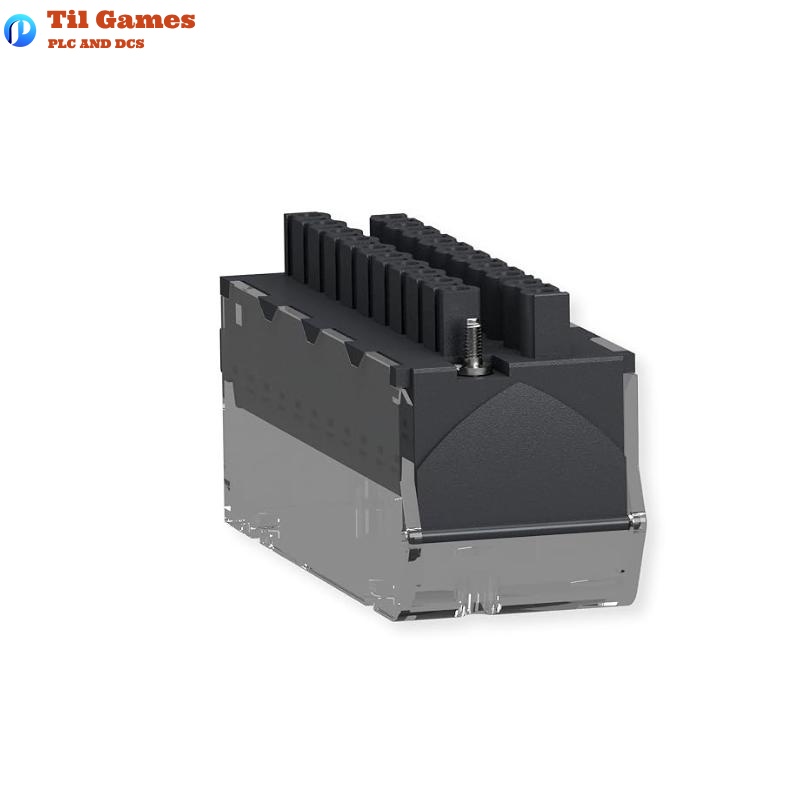

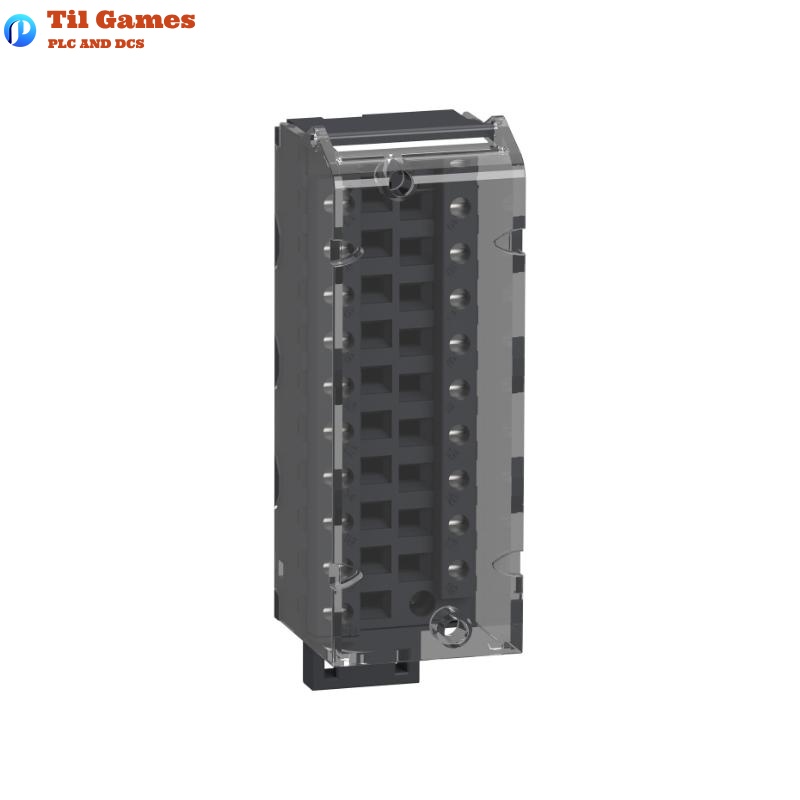

| Product Name | Schneider BMXFTB2000 Terminal Block |
| Product Range | Modicon X80 |
| Type | Removable Connection Block |
| Applicable Module | For module with 20-pin removable terminal block |
| Number of Terminals | 20 removable cage clamp terminals |
| Terminal Type | Removable cage clamp terminal |
| Wire Cross Section | 1 x 0.34mm² to 1mm² |
| Dimensions | 91.4 x 41.8 x 32 mm |
| Weight | 0.093 kg |
| Application Scope | Medium to large process control applications |
| Mounting Method | Plug-in, easy replacement |
| Material | Industrial-grade flame-retardant material |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the BMXFTB2000 terminal block?
A1: It is mainly used in medium to large process control systems as the interface between I/O modules and field devices.
Q2: What wire size is supported by the terminals?
A2: Each terminal supports a single wire with a cross section of 0.34mm² to 1mm².
Q3: Which modules are compatible with this terminal block?
A3: It is designed for use with Modicon X80 series modules equipped with 20-pin removable terminals.
Q4: Is installation and removal convenient?
A4: The plug-in design makes installation and replacement quick and easy.
Q5: Can the block withstand repeated plugging and unplugging?
A5: Yes, it is constructed from high-strength industrial materials for stable, repeated use.
Q6: What is the recommended operating temperature range?
A6: It can operate within the standard industrial temperature range; refer to the module’s datasheet for details.
Q7: Are there recommended accessories or spare parts?
A7: It is recommended to use with Modicon X80 control modules and associated accessories.
Q8: How is wiring safety ensured?
A8: Cage clamp terminals secure the wire tightly, minimizing the risk of loose connections.
