Technical Specifications
| Parameter | Description |
|---|---|

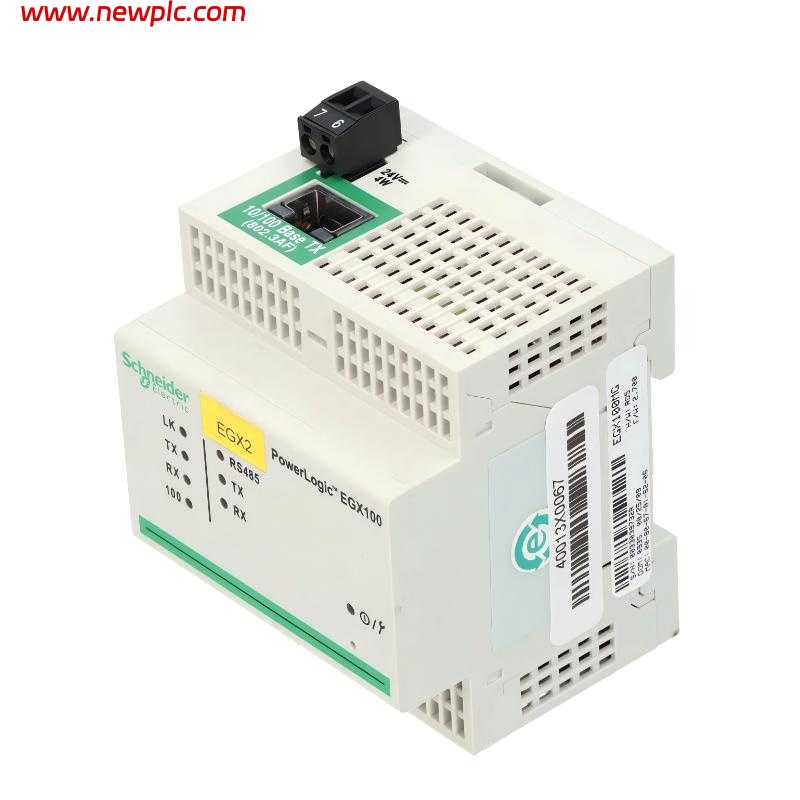

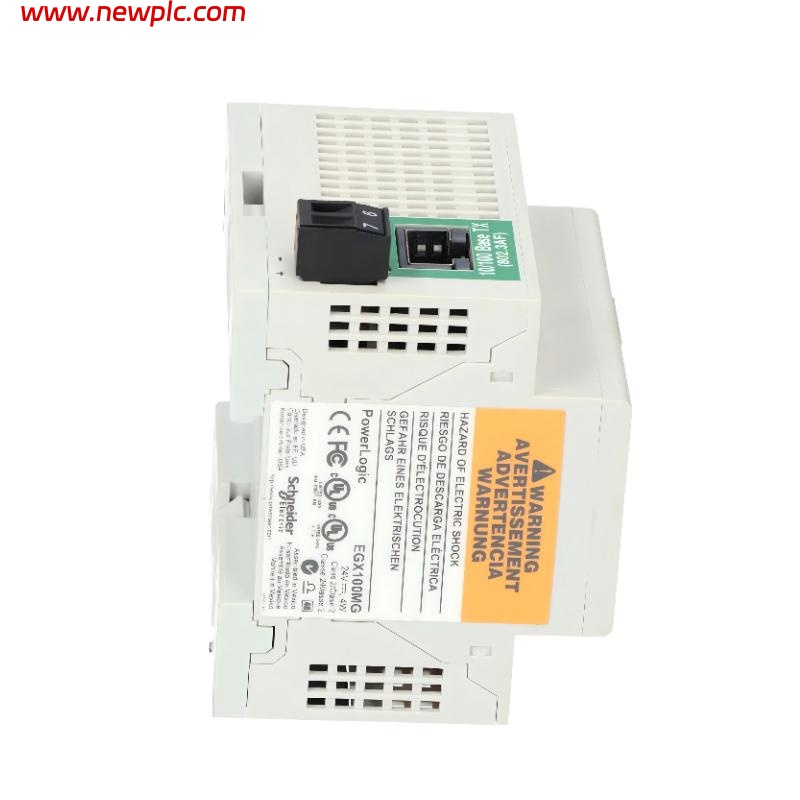

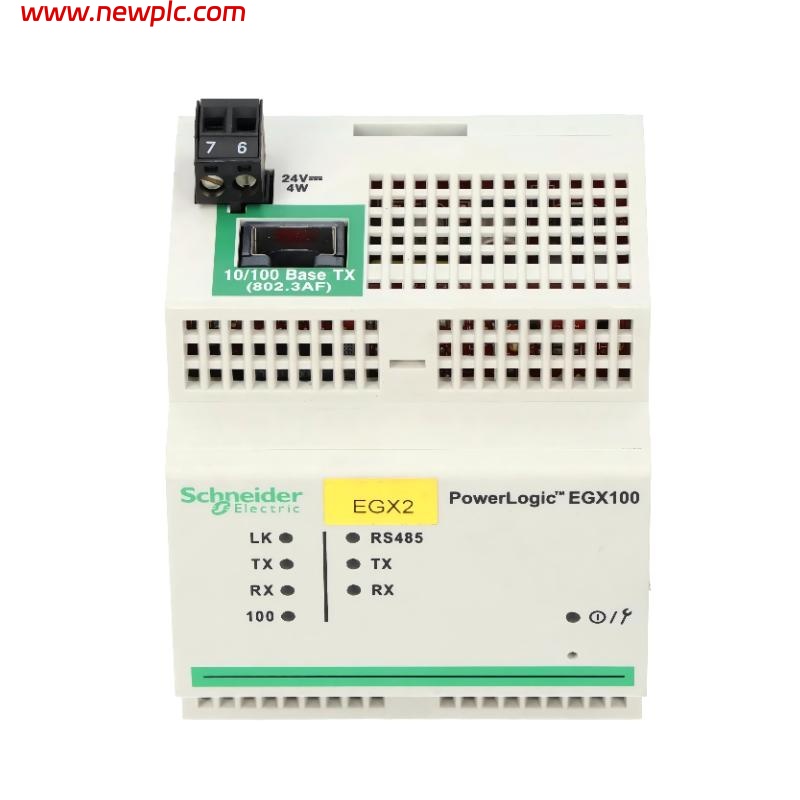

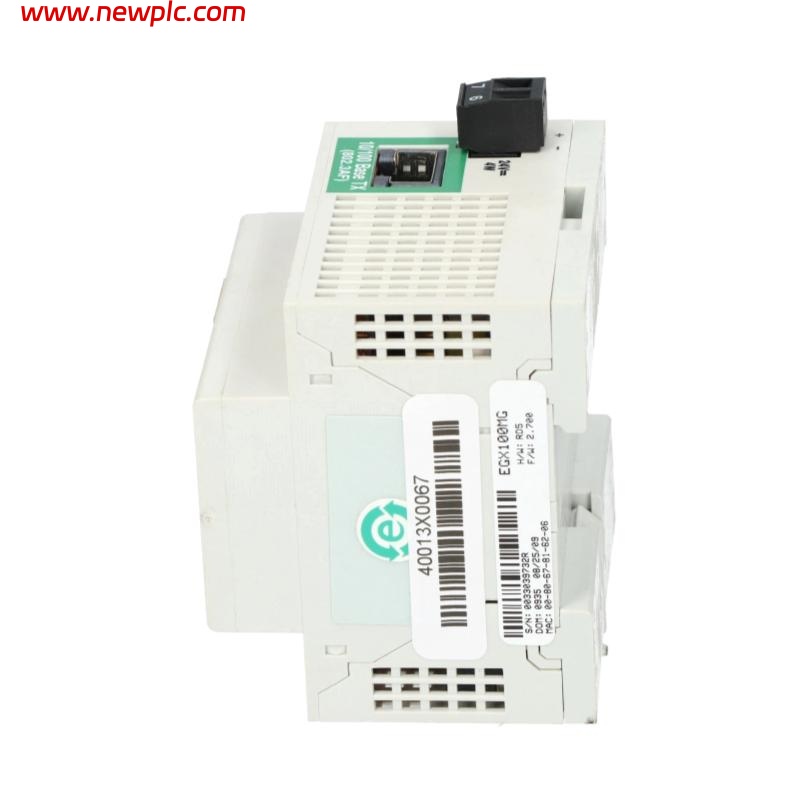

| Product Model | Schneider EGX100MG |
| Device Type | Ethernet Gateway |
| Communication Protocols | Modbus TCP, Modbus RTU, Modbus ASCII |
| Ethernet Interface | 10/100 Mbps, RJ45 |
| Serial Interface | RS485, 2-wire |
| Supported Devices | Modbus-compatible meters, protection relays, sensors, controllers |
| Max Number of Connected Devices | Up to 32 Modbus serial devices |
| Configuration Method | Web-based configuration interface |
| IP Address Assignment | Static or DHCP |
| Security Features | Password protection, restricted access levels |
| Data Logging | Event and communication monitoring |
| Status Indication | LEDs for power, Ethernet link, and serial communication activity |
| Power Supply Requirement | 24 VDC (typical) |
| Operating Temperature | −10°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Mounting Type | DIN-rail mounting |
| Dimensions | 91 × 72 × 68 mm |
| Weight | 0.17 kg |
FAQ
FAQ
Q1: What communication protocols does the EGX100MG gateway support?
A1: It supports Modbus TCP, Modbus RTU, and Modbus ASCII.
Q2: How many Modbus serial devices can be connected to the gateway?
A2: Up to 32 serial devices can be connected on the RS485 bus.
Q3: Does the device allow web-based configuration?
A3: Yes, configuration is performed through an embedded web interface.
Q4: What Ethernet speeds are supported by the gateway?
A4: It supports both 10 Mbps and 100 Mbps Ethernet connections.
Q5: Is DHCP supported for IP configuration?
A5: Yes, the gateway can operate with either a static IP or DHCP-assigned IP.
Q6: What type of serial interface is provided?
A6: It uses a 2-wire RS485 interface for Modbus serial communication.
Q7: Are there LED indicators for device status?
A7: Yes, front-panel LEDs indicate power, Ethernet link/activity, and RS485 communication.
Q8: Can the EGX100MG be used with Modbus-compatible meters and relays?
A8: Yes, it is designed to interface with a wide range of Modbus-enabled devices in industrial and energy-management applications.
