Technical Specifications
| Parameter | Specification |
|---|---|

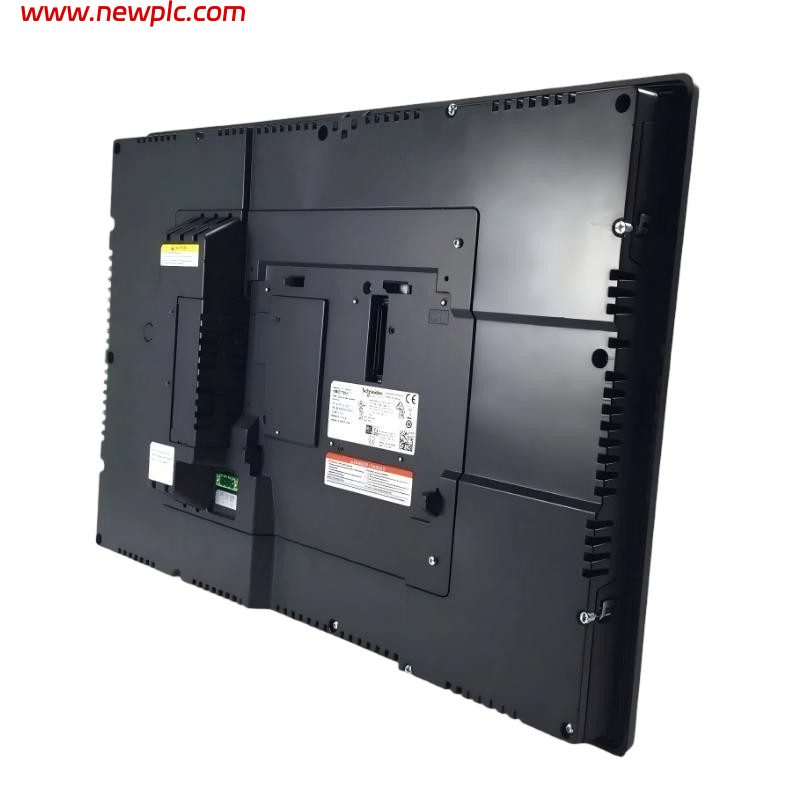

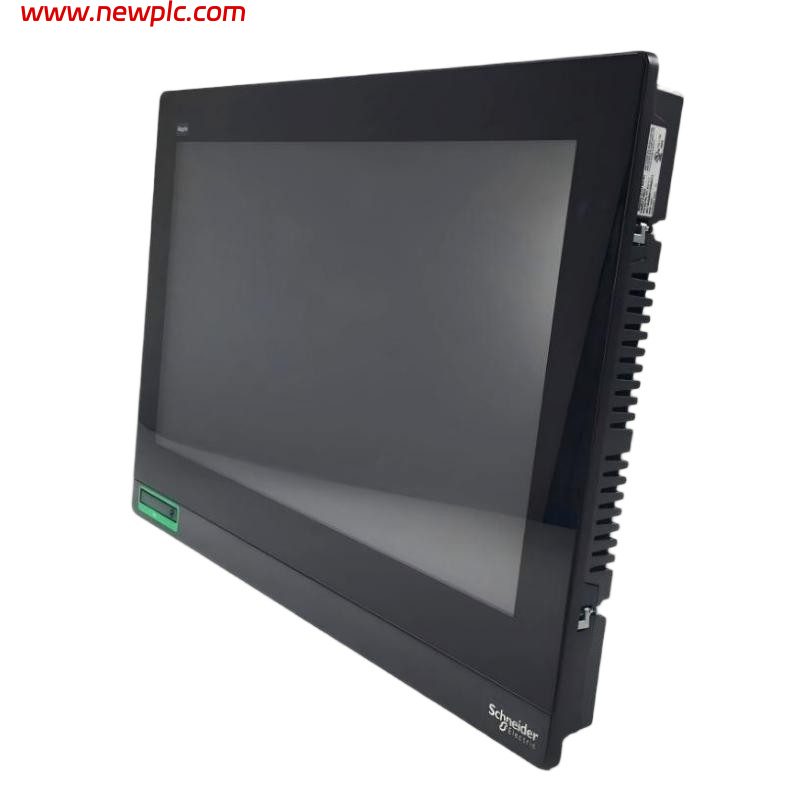

| Product Name | Schneider Electric HMIDT551 |
| Product ID | HMIDT551 |
| Manufacturer | Schneider Electric |
| Product Type | Touch Screen HMI Display (Operator Panel) |
| Series | Harmony GTU (Magelis GTU) |
| Function | Human-Machine Interface for industrial machine control, monitoring, and visualization |
| Display Type | TFT LCD Color Touchscreen |
| Screen Size | 10.1 inch |
| Resolution | 1280 × 800 (WXGA) |
| Touch Type | Resistive / multi-touch (model dependent) |
| Supply Voltage | 12–24 VDC |
| Communication Ports | Ethernet, Serial, USB (dual LAN supported on system architecture) |
| Protection Rating | IP66 / IP67 (front panel) |
| Operating System | Schneider Harmony embedded HMI runtime platform |
| Memory | 256 MB onboard memory |
| Mounting Type | Panel mount / cabinet front mounting |
| Application | Industrial automation, machine control, packaging, HVAC, process monitoring |
| System Compatibility | Schneider Electric EcoStruxure / EcoStruxure Machine / Magelis GTU system |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Weight | approx. 2.5 kg |
| Dimensions | approx. 268.5 × 198.5 × 67 mm |
FAQ
FAQ
Q1: What is HMIDT551 used for?
It is an industrial HMI touchscreen used for machine operation, monitoring, and control visualization.
Q2: Is it a PLC or controller?
No. It is an HMI (operator interface panel), not a PLC.
Q3: What system does it belong to?
It belongs to Schneider Electric Harmony GTU / Magelis GTU series.
Q4: What size is the screen?
10.1-inch WXGA display (1280 × 800 resolution).
Q5: What protection level does it have?
Front panel is IP66/IP67 rated for industrial environments.
Q6: What is the power supply?
It operates on 12–24 VDC.
Q7: What is the main function?
It provides a graphical interface between operators and machines for monitoring and control.
Q8: What are the dimensions and weight?
Approx. 268.5 × 198.5 × 67 mm and about 2.5 kg.
