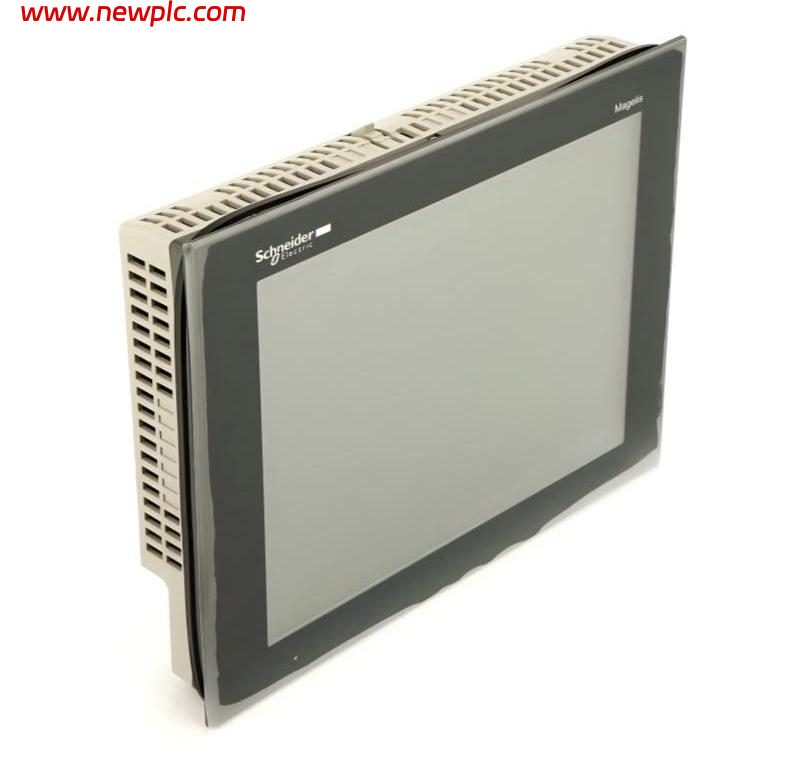

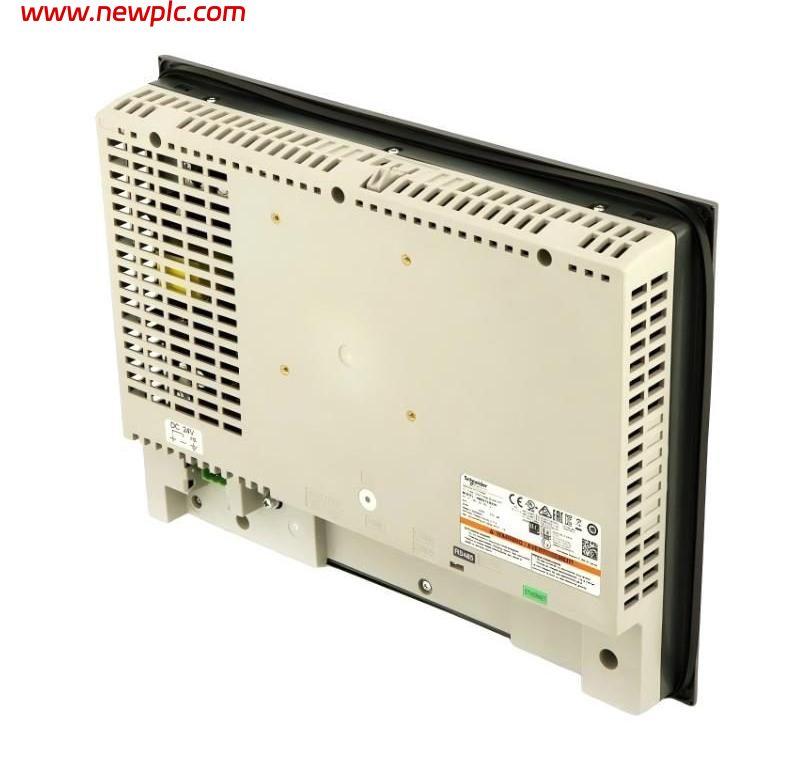

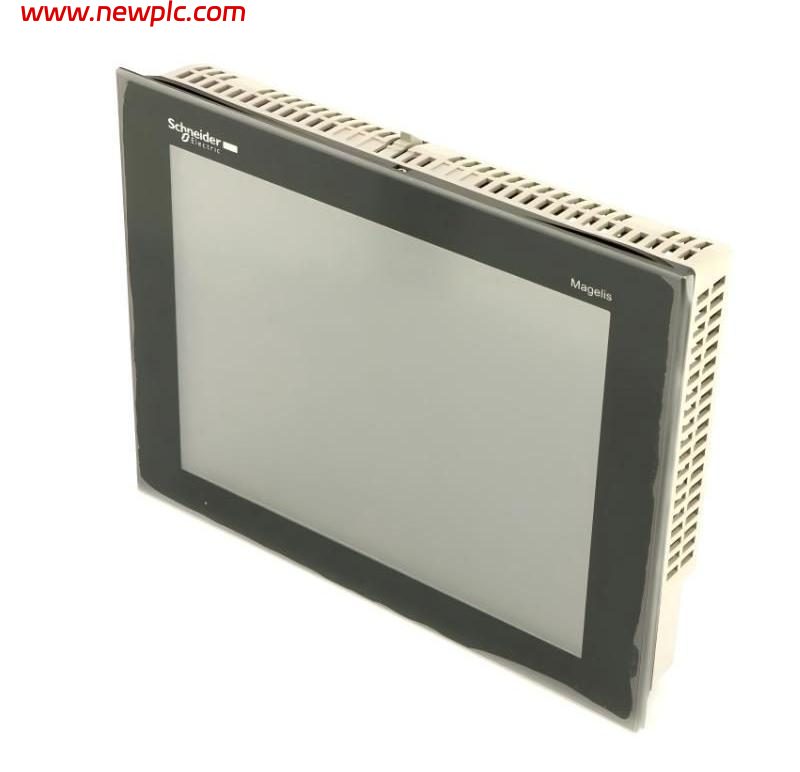

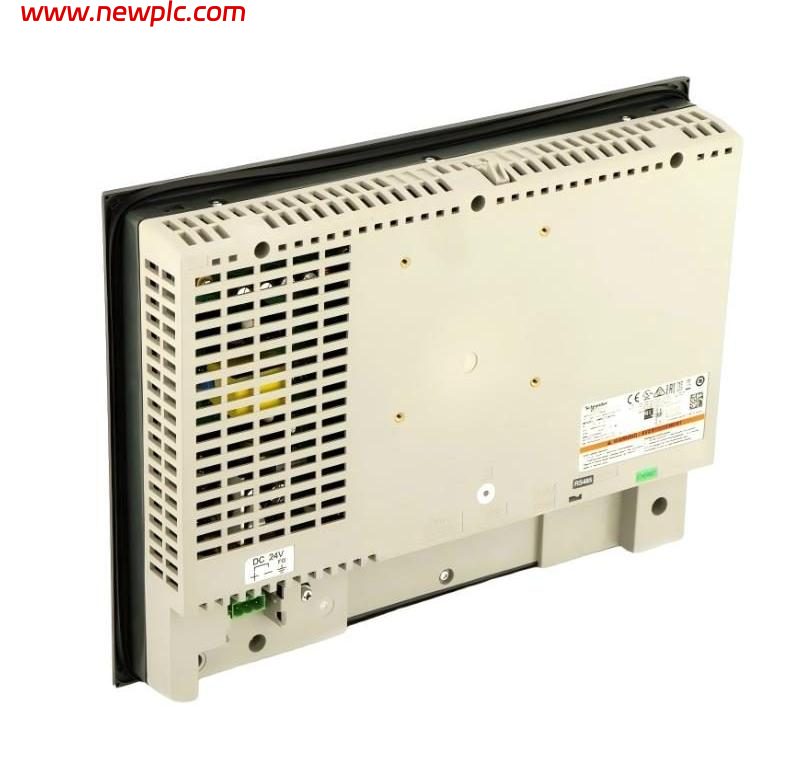

Schneider HMIGTO6310 Advanced Touchscreen Panel

FAQ

Q1: What is the Schneider HMIGTO6310?
A: It is a Schneider Electric Harmony GTO advanced touchscreen panel designed for industrial HMI applications.

Q2: What is the display size and resolution?
A: The HMIGTO6310 has a 12.1-inch TFT color LCD with a resolution of 800 × 600 pixels (SVGA).

Q3: How many colors does the display support?
A: The display supports 65,536 colors.

Q4: How much memory does the HMIGTO6310 have?
A: The panel is equipped with 96 MB of memory.

Q5: What communication interfaces are available?
A: The HMIGTO6310 provides one RS232C port, one RS485 port, one Ethernet TCP/IP port, one USB host port, one USB Mini-B port and one SD card slot.

Q6: What power supply does the HMIGTO6310 require?
A: The panel operates from a 24 V DC supply, with an allowable supply range of 19.2–28.8 V DC and maximum power consumption of 17 W.

Q7: What software is used to configure the HMIGTO6310?
A: The HMIGTO6310 is configured using Schneider Electric Vijeo Designer software.

Q8: What are the dimensions and weight?
A: Schneider Electric documentation lists representative dimensions of 241 × 56 × 315 mm and a representative product mass of 2.5 kg.

HMIGTO6310 Schneider
