Technical Specifications
| Item | Specification |
|---|---|

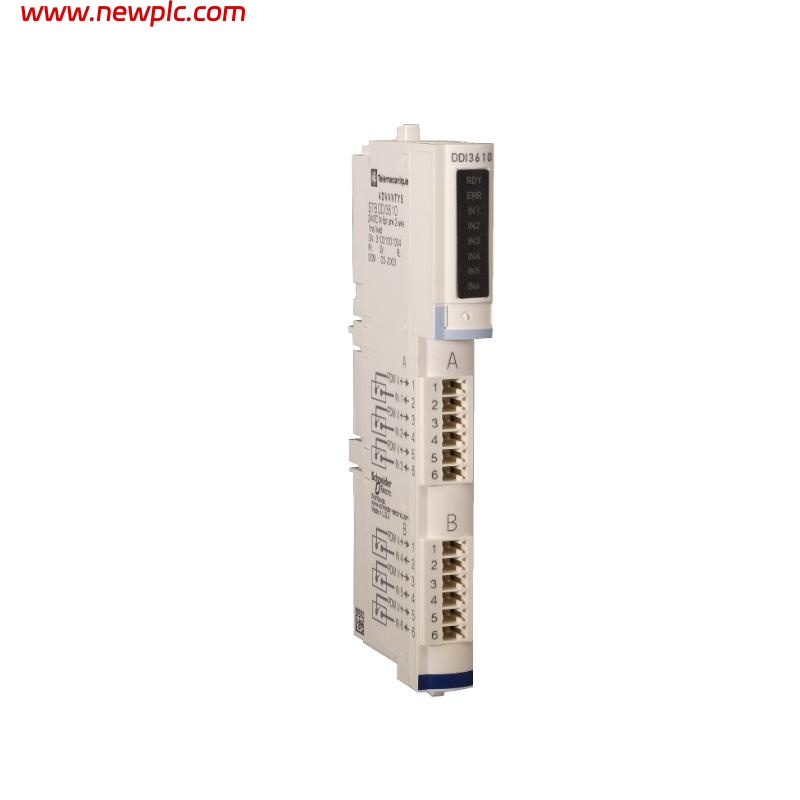

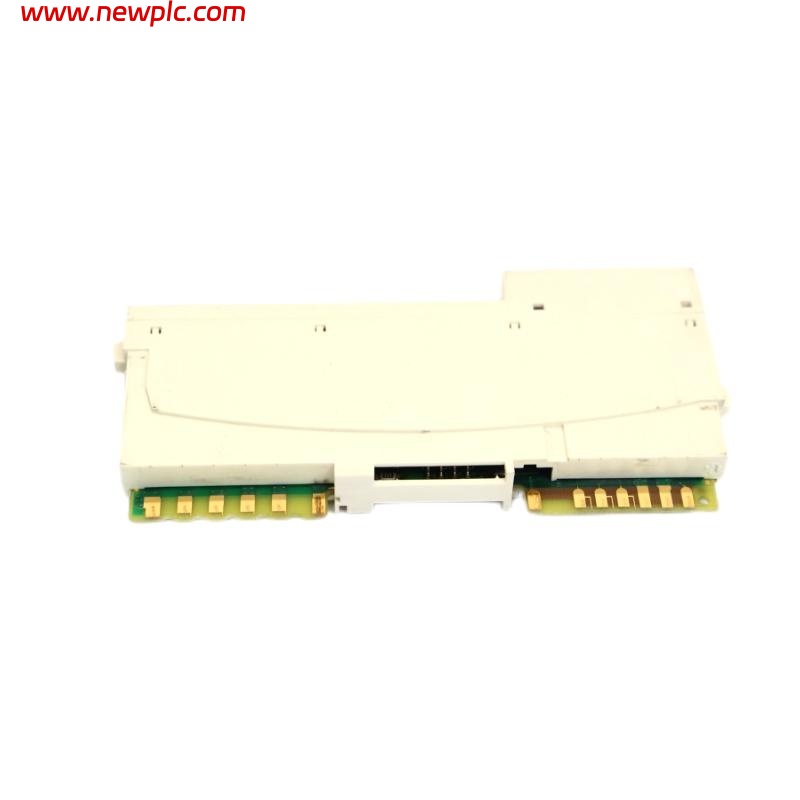

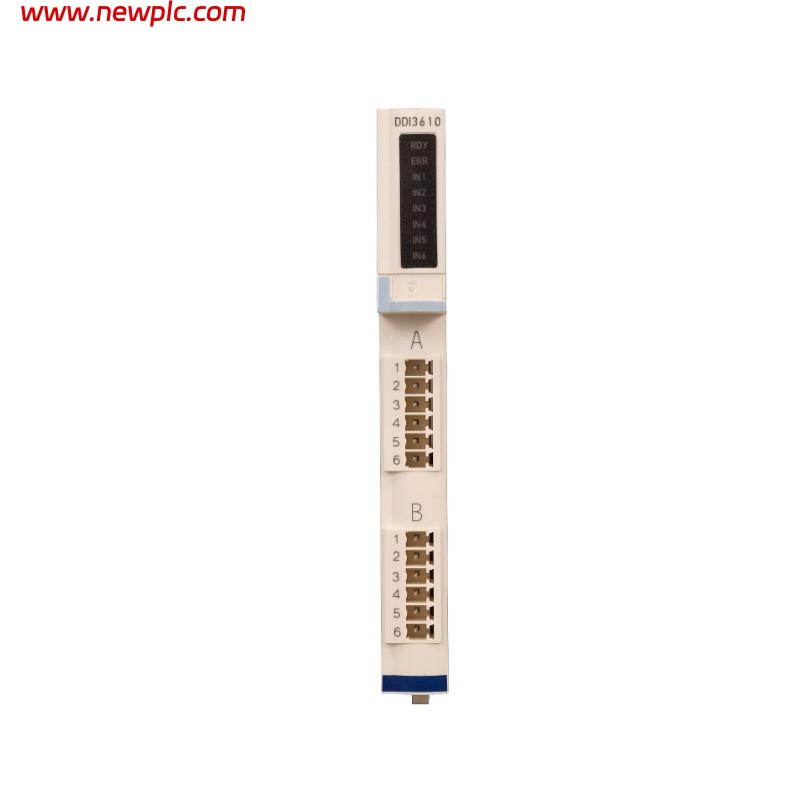

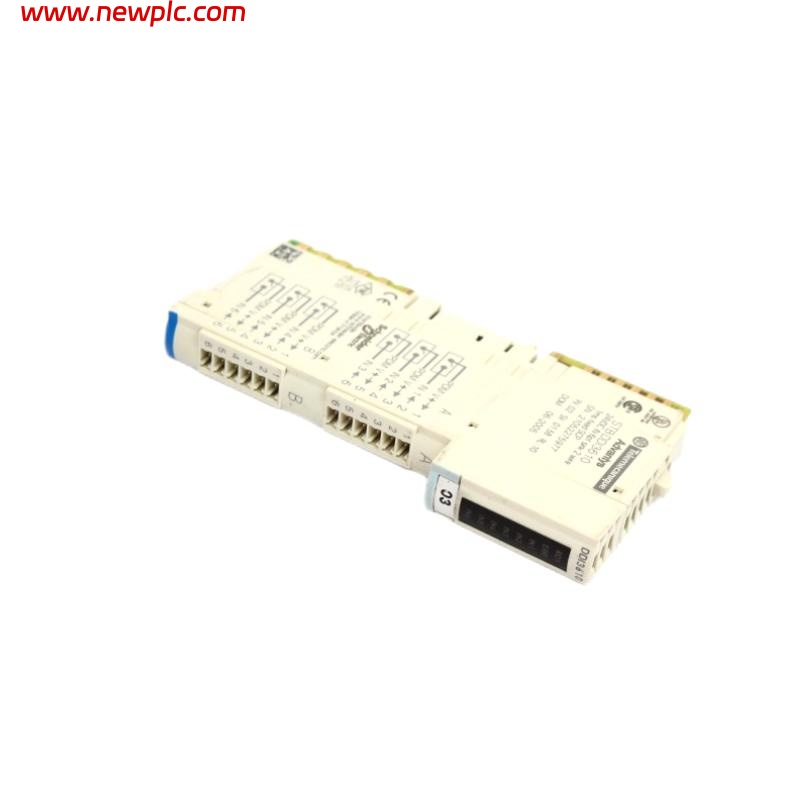

| Model | Schneider STBDDI3610K |
| Type | Digital Input Module |
| Product Category | Distributed I/O module |
| Product Family | Modicon STB distributed I/O system |
| Input Type | Discrete DC inputs |
| Number of Inputs | 8 inputs |
| Input Voltage Range | 18 V DC to 30 V DC |
| Input Current | Typical per channel for industrial discrete inputs |
| Input Logic | Positive logic (active high) |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Status Indication | Individual LED for each input channel |
| Mounting Method | STB base / DIN rail mounting |
| Field Wiring Connection | Spring clamp terminals |
| Protection Rating | IP20 |
| Operating Temperature Range | 0 °C to +60 °C |
| Application Environment | Industrial automation and control cabinets |
| Compatibility | Modicon STB distributed I/O architecture |
| Dimensions | Approx. 100 mm × 25 mm × 110 mm |
| Weight | Approximately 0.12 kg |
FAQ
FAQ
Q1: What is the primary function of the STBDDI3610K?
It provides eight DC discrete input channels for use in a Modicon STB distributed I/O system.
Q2: What input voltage range does this module support?
The STBDDI3610K supports a DC input voltage range from 18 V to 30 V.
Q3: How many discrete inputs are available?
It offers 8 discrete DC input channels.
Q4: How are the input signals connected to this module?
Input signals are connected via spring clamp terminals for secure and reliable field wiring.
Q5: Does the STBDDI3610K provide status indication?
Yes, each input channel has an individual LED that shows the input status.
Q6: What input logic does the module use?
It uses positive logic, where a high DC input signal indicates an active input.
Q7: Can this module operate in industrial control environments?
Yes, it is designed for industrial automation applications and can be installed in control cabinets.
Q8: What are the physical dimensions and weight of the STBDDI3610K?
The module measures approximately 100 mm × 25 mm × 110 mm and weighs about 0.12 kg.
