Technical Specifications
| Item | Specification |
|---|---|

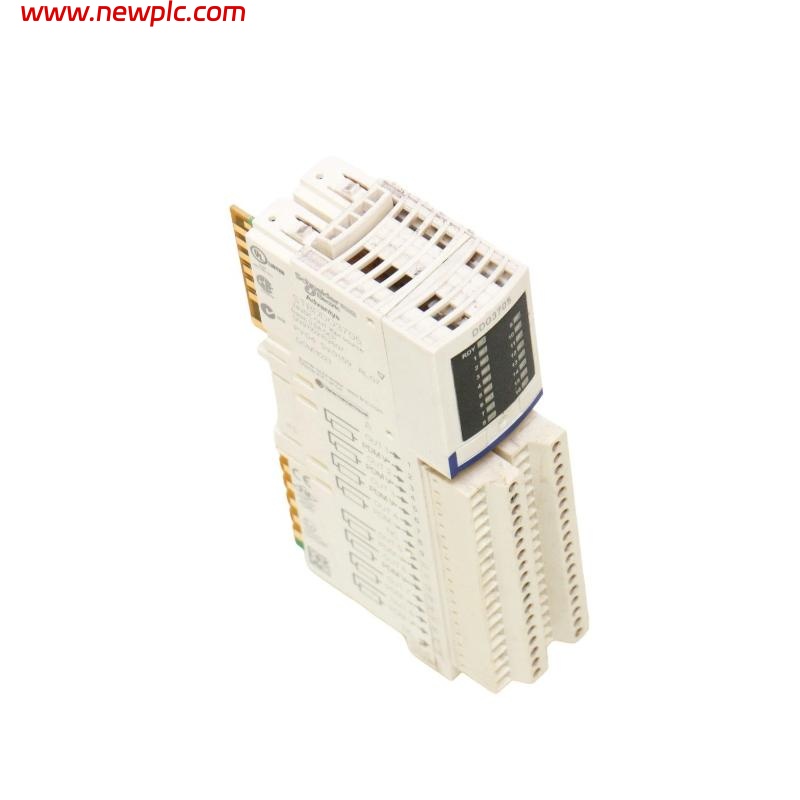

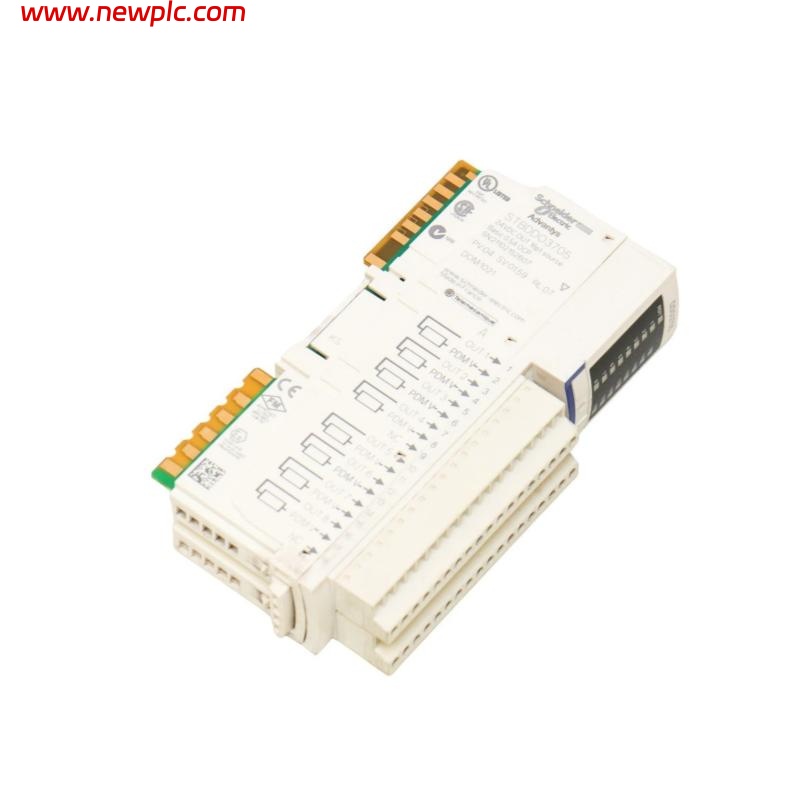

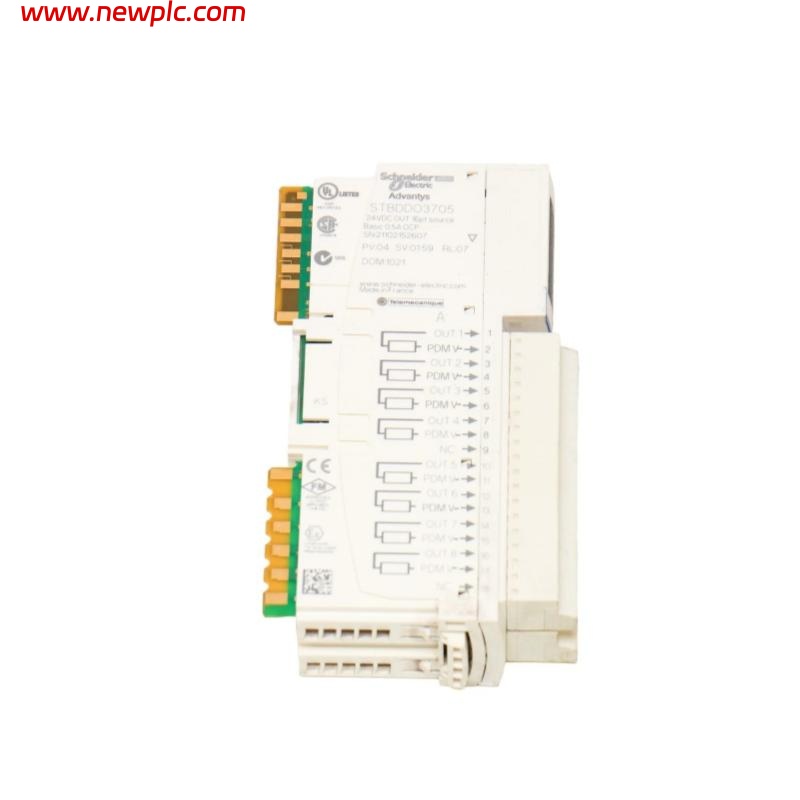

| Model | STBDDO3705 |
| Module Type | Digital Output Basic Module |
| Number of Channels | 8 digital outputs |
| Output Type | Transistor output |
| Output Voltage | 24 V DC |
| Output Current | Max 0.5 A per channel |
| Response Time | ≤ 5 ms |
| Isolation | Electrical isolation between channels |
| Operating Temperature | –20 °C to +60 °C |
| Mounting | DIN rail mounting |
| Wiring | Screw terminals |
| Communication Interface | Modbus or Schneider compatible bus |
| Dimensions | 13.9 x 70 x 128.3 mm |
| Weight | 0.086 kg |
FAQ
FAQ
Q1: Which PLC systems is this module compatible with?
A1: Compatible with Schneider standard PLC systems.
Q2: What is the maximum current per output channel?
A2: Max 0.5 A per channel.
Q3: Is the output type selectable?
A3: No, this model has transistor outputs.
Q4: Does it support bus communication?
A4: Yes, compatible with Modbus or Schneider bus protocol.
Q5: Is any special tool needed for installation?
A5: No, standard DIN rail mounting is sufficient.
Q6: Can the module operate in high-temperature environments?
A6: Yes, operating temperature range is –20 °C to +60 °C.
Q7: Does it require regular maintenance?
A7: No, only periodic inspection of wiring is recommended.
Q8: What is the typical service life of the module?
A8: Normally 8–10 years or longer under proper usage.
