Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | STBXBE1100 |

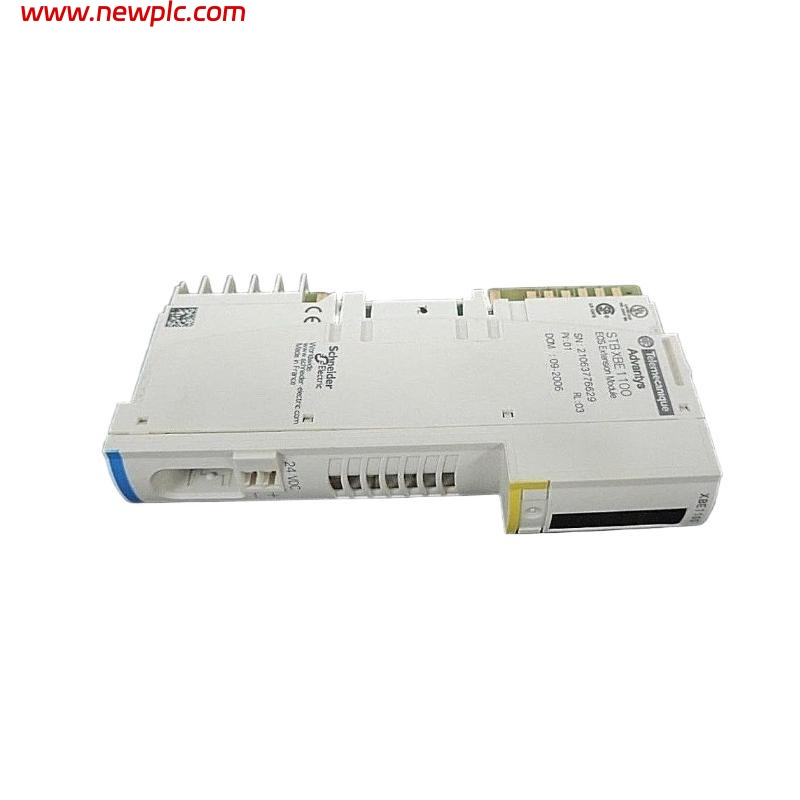

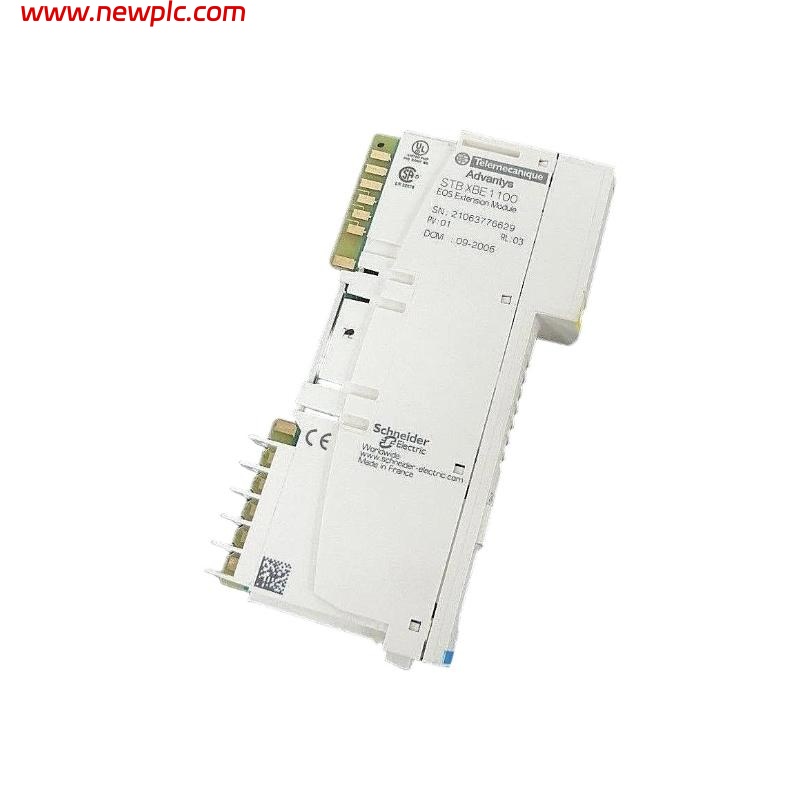

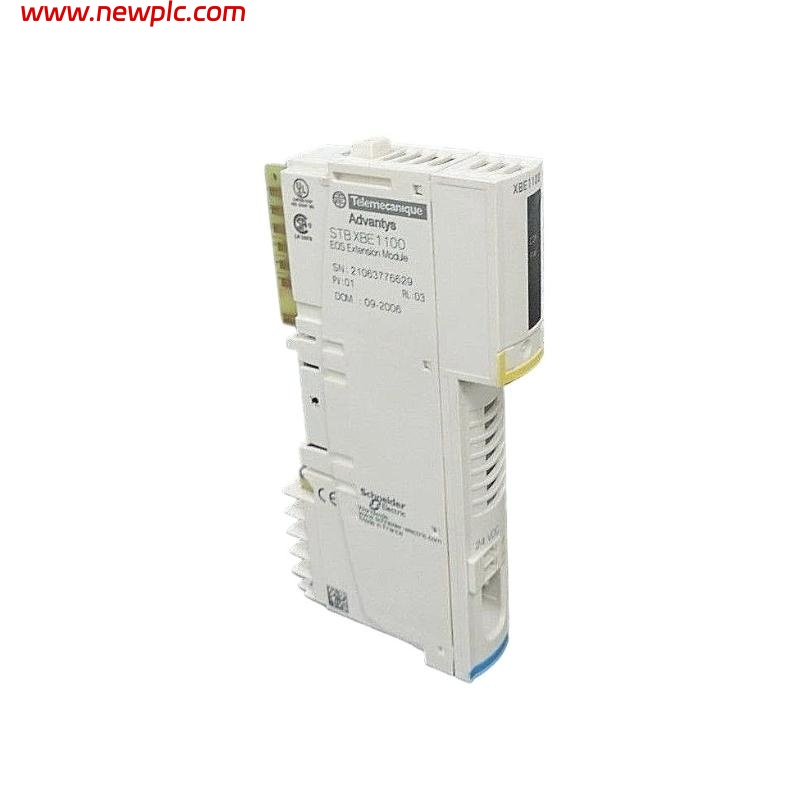

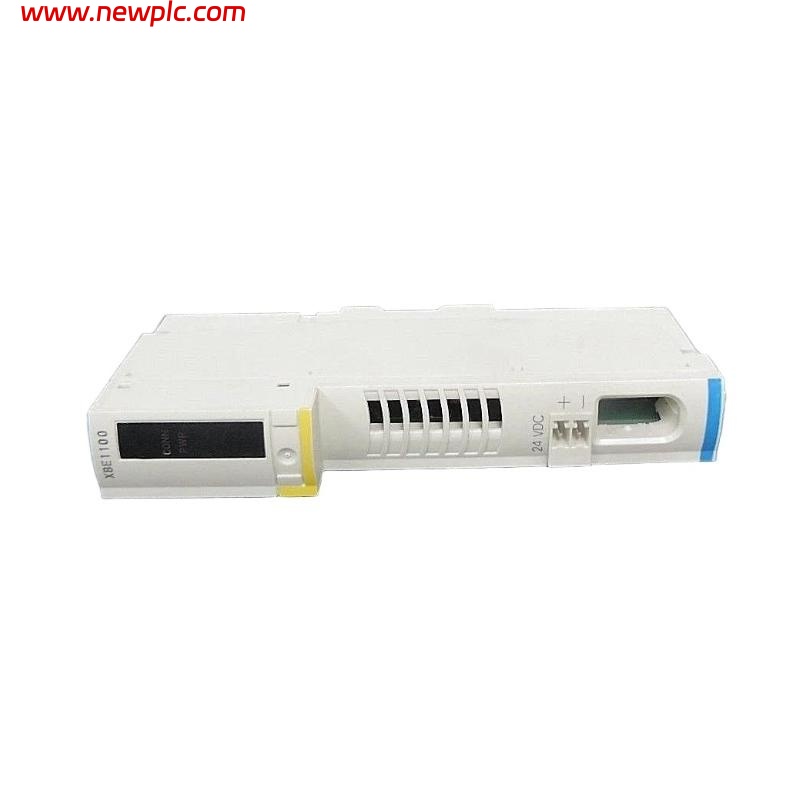

| Product Name | Schneider EOS Internal Bus Expansion Module |
| Module Type | Internal Bus Expansion Module |
| Installation Location | End of Segment (EOS) position |
| Interface Type | STB internal bus connector |
| Electrical Connection | Built-in STB bus slot |
| Mounting | DIN rail |
| Operating Voltage | 5 V DC (provided by STB power module) |
| Power Consumption | Very low |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 120 × 100 × 40 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the primary function of the STBXBE1100?
A: It extends the internal bus in STB systems and acts as the end of a segment.
Q2: Where should the STBXBE1100 be installed?
A: At the end of a distributed STB I/O module segment to terminate the internal bus.
Q3: Does the module provide electrical isolation?
A: No, it does not provide isolation—it is used for structural and bus continuity.
Q4: Is external power supply required?
A: No, it uses the 5V power from the STB internal system.
Q5: Is hot-swapping supported?
A: Hot-swapping is not recommended. Install with power off.
Q6: Is it compatible with all STB modules?
A: Yes, it is compatible with all Schneider STB module systems.
Q7: Is installation complicated?
A: Installation is easy with DIN rail mounting and no special tools required.
Q8: What are the dimensions and weight of the module?
A: It measures 120 × 100 × 40 mm and weighs 0.3 kg.
