Technical Specifications
| Parameter | Description |
|---|---|

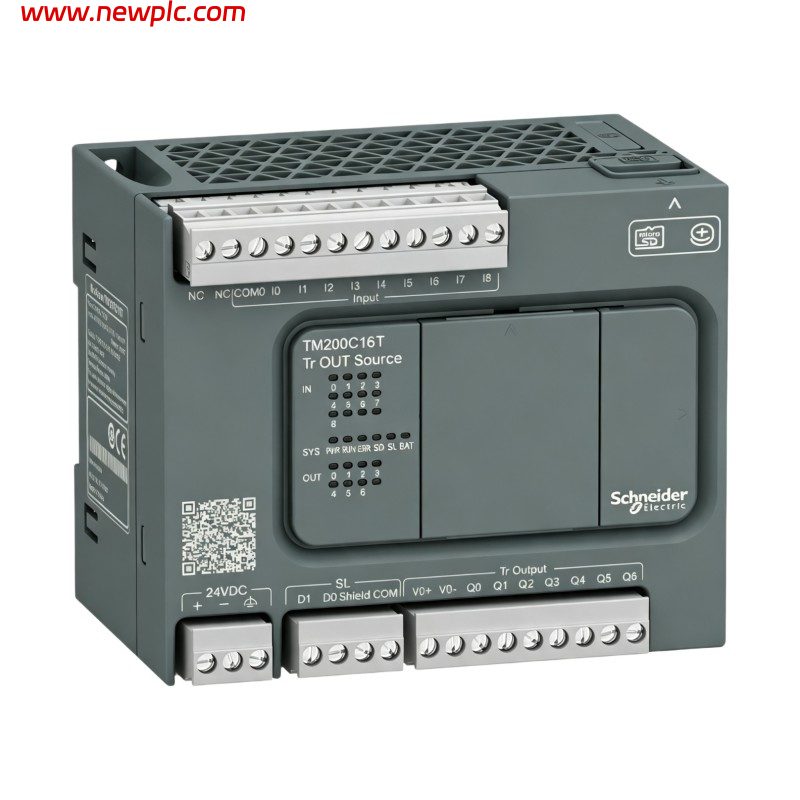

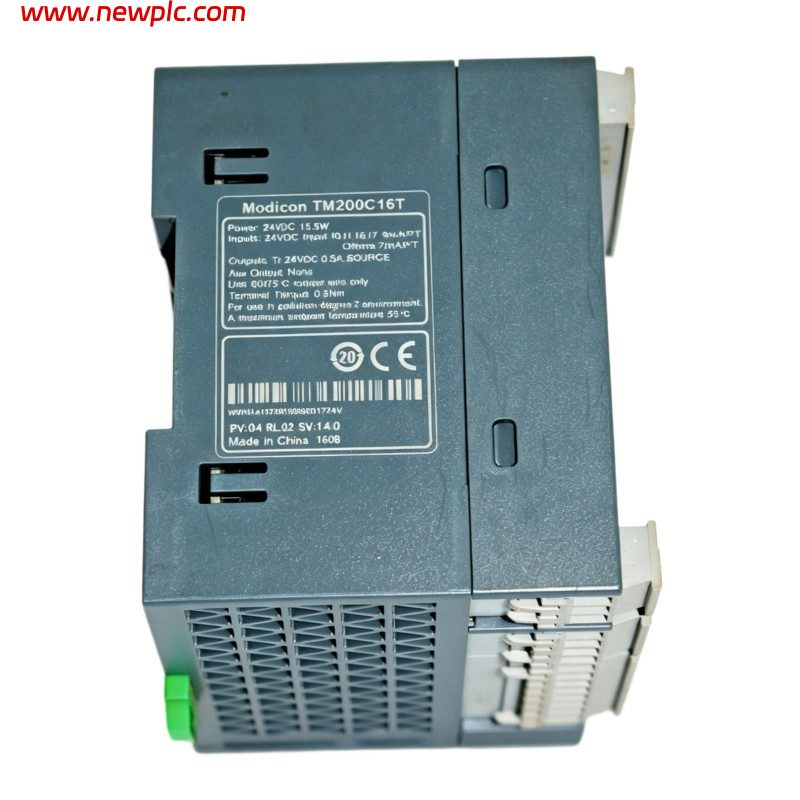

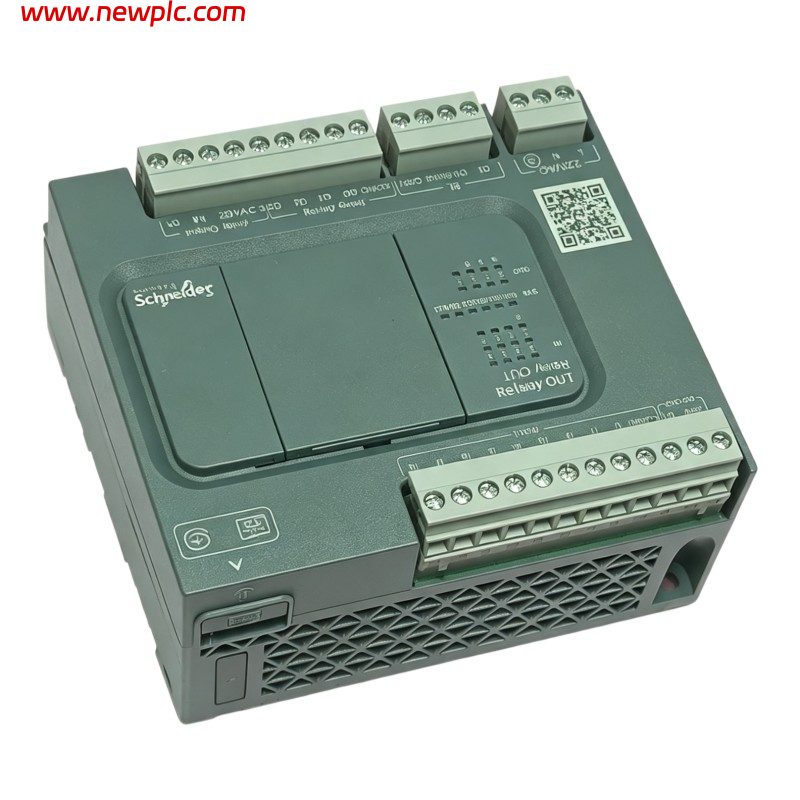

| Product Model | Schneider Electric TM200C16T |
| Manufacturer | Schneider Electric |
| Product Series | Easy Modicon M200 |
| Product Type | Compact Logic Controller (PLC) |
| Function | Provides programmable control with integrated digital I/O for machine automation |
| Application | Small machine control, OEM equipment, packaging systems, conveyors, basic automation applications |
| Supply Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Total Digital I/O | 16 points |
| Digital Inputs | 9 inputs |
| Digital Outputs | 7 transistor outputs |
| Input Type | 24 VDC digital input |
| Input Logic | Sink or Source (positive/negative logic) |
| Input Standard | IEC 61131-2 Type 1 |
| Input Current | 7 mA per input |
| High-Speed Inputs | 4 channels (I0, I1, I6, I7) |
| Fast Inputs | 4 channels (I2–I5) |
| Regular Input | 1 channel (I8) |
| Output Type | Source transistor output |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per channel |
| Output Channels | Q0–Q6 |
| Fast Outputs | Q0–Q1 support PLS/PWM/PTO functions |
| Output Logic | Positive logic (Source) |
| Expansion Capability | Up to 4 I/O expansion modules |
| Maximum I/O Capacity | Up to 196 I/O points |
| Motion Control | Supports up to 2-axis motion control |
| Programming Port | USB programming interface |
| Communication Port | Ethernet RJ45 |
| Memory Support | Micro SD card |
| Power Consumption | 15.5 W at 24 VDC (maximum I/O load) |
| Inrush Current | 35 A |
| Response Time (Output) | 1 ms ON/OFF |
| Response Time (High-Speed Input) | 5 μs ON/OFF |
| Response Time (Fast Input) | 35–100 μs |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 110 × 70 × 90 mm (W × H × D) |
| Weight | Approx. 0.36–0.52 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM200C16T used for?
A: The TM200C16T is used for controlling compact automated machines, including packaging equipment, conveyors, assembly machines, and OEM automation systems.
Q2: How many inputs and outputs does the TM200C16T have?
A: The PLC provides 16 digital I/O points, including 9 digital inputs and 7 transistor outputs.
Q3: What is the difference between TM200C16T and TM200C16R?
A: The TM200C16T uses transistor outputs, while the TM200C16R uses relay outputs. The transistor version provides faster switching and supports pulse functions such as PTO and PWM, while the relay version is better suited for general-purpose switching.
Q4: What type of output does the TM200C16T use?
A: The TM200C16T uses 24 VDC source transistor outputs with a rated current of 0.5 A per channel.
Q5: Does the TM200C16T support high-speed counting and motion control?
A: Yes. The controller includes high-speed input channels and supports motion-related functions such as PTO and PWM output control, suitable for encoder and positioning applications.
Q6: What power supply does the TM200C16T require?
A: The TM200C16T requires a 24 VDC power supply, with an operating range of 20.4–28.8 VDC.
Q7: Can the TM200C16T be expanded with additional I/O modules?
A: Yes. The controller supports up to 4 I/O expansion modules, allowing the system to increase the available I/O capacity.
Q8: What are the dimensions and weight of the TM200C16T?
A: The controller dimensions are approximately 110 × 70 × 90 mm, with a weight of approximately 0.36–0.52 kg depending on packaging information.
